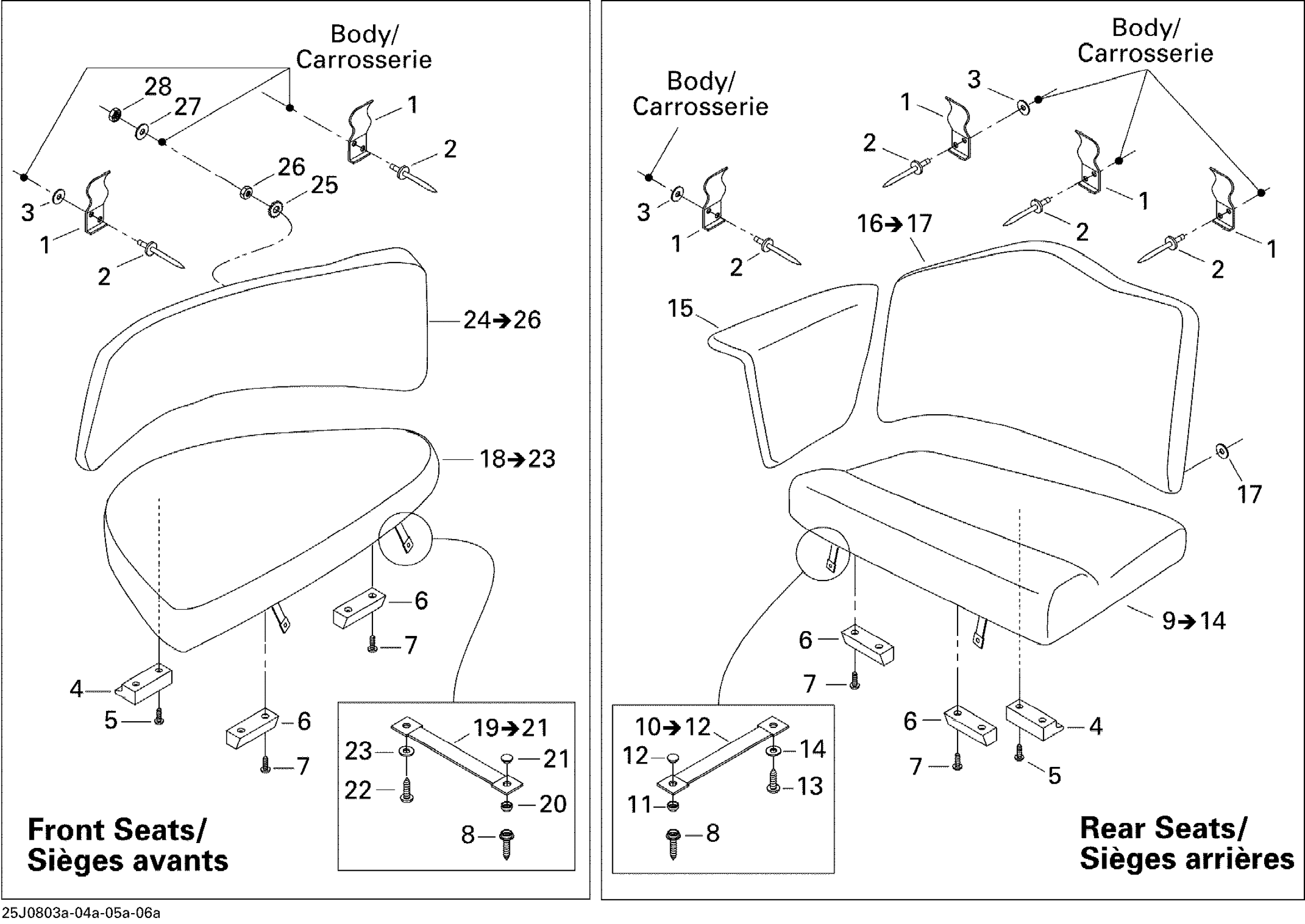

Sea-doo 200 Speedster 310, 2008 09- Seat 1 Diagram
#
1
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
2
Pop Rivet 3/16"
293150043
$2.09
3
Flat Washer 5 mm, Stainless
234052400
$2.85
4
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
5
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
6
LATCH - Call your local BRP dealership
204611805
Unavailable
7
SCREW #8 X 1-1/4? - Call your local BRP dealership
204100081
Unavailable
8
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
9
REAR SEAT ASS'Y, PORT SIDE - Call your local BRP dealership | Includes 9 to 14, Viper Red
204614278
Unavailable
9
REAR SEAT ASS'Y, STARBOARD - Call your local BRP dealership | Includes 9 to 14, Viper Red
204614280
Unavailable
9
Rear Seat Ass'y, Port Side | Includes 9 to 14, Mazatlan Blue
204614476
Unavailable
9
Rear Seat Ass'y, Starboard | Includes 9 to 14, Mazatlan Blue
204614478
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
12
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
13
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
14
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
15
ARMREST, PORT SIDE - Call your local BRP dealership | Port
204613674
Unavailable
15
ARMREST, STARBOARD - Call your local BRP dealership | Starboard
204613672
Unavailable
15
Armrest, Port Side | Mazatlan Blue
204614480
Unavailable
15
Armrest, Starboard | Mazatlan Blue
204614482
Unavailable
16
Rear Backrest Ass'y, Port Side | Includes 16 to 17, Viper Red
204614282
Unavailable
16
Rear Backrest Ass'y, Starboard | Includes 16 to 17, Viper Red
204614284
Unavailable
16
Rear Backrest Ass'y, Port Side | Includes 16 to 17, Mazatlan Blue
204614484
Unavailable
16
Rear Backrest Ass'y, Starboard | Includes 16 to 17, Mazatlan Blue
204614486
Unavailable
17
Flat Washer M6, Stainless
234062600
$0.77
18
FRONT SEAT ASS'Y, PORT SIDE - Call your local BRP dealership | Includes 18 to 23, Viper Red
204614286
Unavailable
18
FRONT SEAT ASS'Y, STARBOARD - Call your local BRP dealership | Includes 18 to 23, Viper Red
204614288
Unavailable
18
Front Seat Ass'y, Port Side | Includes 18 to 23, Mazatlan Blue
204614488
Unavailable
18
Front Seat Ass'y, Starboard | Includes 18 to 23, Mazatlan Blue
204614490
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
21
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
22
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
23
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
24
Front Seat Backrest Ass'y, Port Side | Includes 24 to 26, Viper Red
204614290
Unavailable
24
Front Seat Backrest Ass'y, Starboard | Includes 24 to 26, Viper Red
204614292
Unavailable
24
Front Seat Backrest Ass'y, Port Side | Includes 24 to 26, Mazatlan Blue
204614492
Unavailable
24
Front Seat Backrest Ass'y, Starboard | Includes 24 to 26, Mazatlan Blue
204614494
Unavailable
25
External Serrated Lock Washer 6 mm
234461608
$1.15
26
Hex. Jam Nut
204100060
Unavailable
27
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
28
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
