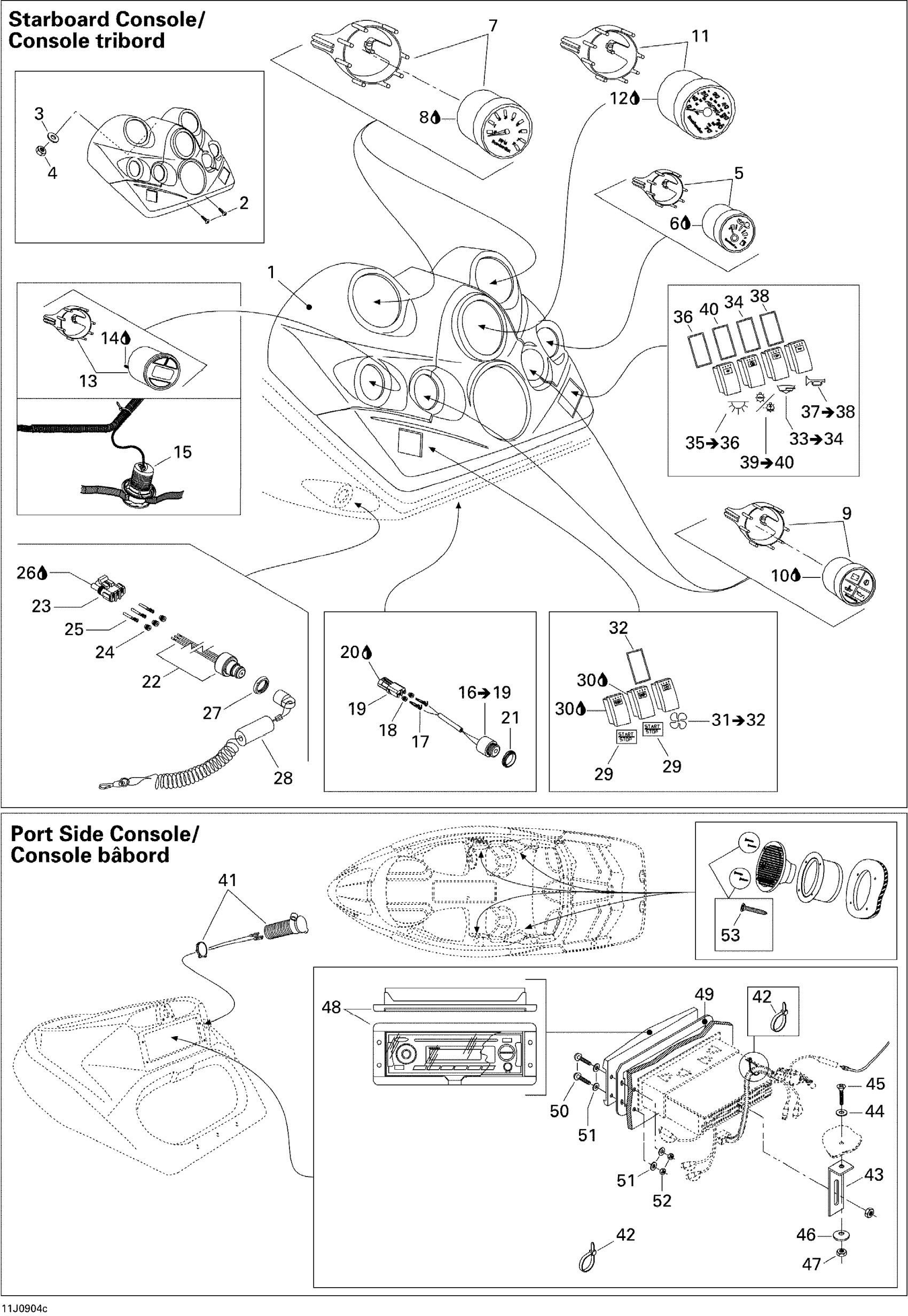

Sea-doo 200 Speedster, 2 x 215 SCIC, 2009 Electrical Accessories 3 Diagram

#

Description
Price

1

Fascia

204471351

Unavailable

2

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

3

Flat Washer 8 mm, Stainless

234082600

$2.27

4

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

5

FUEL GAUGE - Call your local BRP dealership

204471128

Unavailable

6

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

7

TACHOMETER GAUGE - Call your local BRP dealership

204470958

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

9

ENGINE WARNING GAUGE - Call your local BRP dealership

204471130

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

11

Speed Gauge

204470957

$423.85

12

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

13

DEPTH GAUGE - Call your local BRP dealership

204470917

Unavailable

14

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

15

Depth Sensor

204471292

Unavailable

16

Buzzer Ass'y

204470913

$82.81

17

Male Terminal | XT Models

278000222

$2.93

18

Wire Seal

278000218

$4.00

19

Female Housing, 2 Circuits

278000217

$8.72

20

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

21

Buzzer Nut

278000707

Unavailable

22

Safety Switch This part replaces 278002325.

278002773

$102.96

23

Male Housing, 3 Circuits

278000273

$8.72

24

Wire Seal

278000218

$4.00

25

Female Terminal

278000223

$2.93

26

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

27

Safety Nut (DESS Switch)

278002963

$3.12

28

Safety Lanyard

204471206

$79.07

29

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

31

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

32

Gasket

204470132

Unavailable

33

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

34

Gasket

204470132

Unavailable

35

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

36

Gasket

204470132

Unavailable

37

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

Unavailable

38

Gasket

204470132

Unavailable

39

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

40

Gasket

204470132

Unavailable

41

DC Outlet

710001248

$35.79

42

Tie Wrap 94 mm | 4X4

293750001

$0.96

43

RADIO SUPPORT - Call your local BRP dealership

204470837

Unavailable

44

Stainless Flat Washer M6

234061600

$0.28

45

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

46

Flat Washer M6, Stainless

234062600

$0.73

47

Hex. Elastic Stop Nut M6

232561600

$1.06

48

Radio Cover

204470266

Unavailable

49

RADIO COVER GASKET - Call your local BRP dealership

204470257

Unavailable

50

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

51

Flat Washer 4 mm

234040600

$0.52

52

Elastic Stop Nut M4

232541600

$1.06

53

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable
