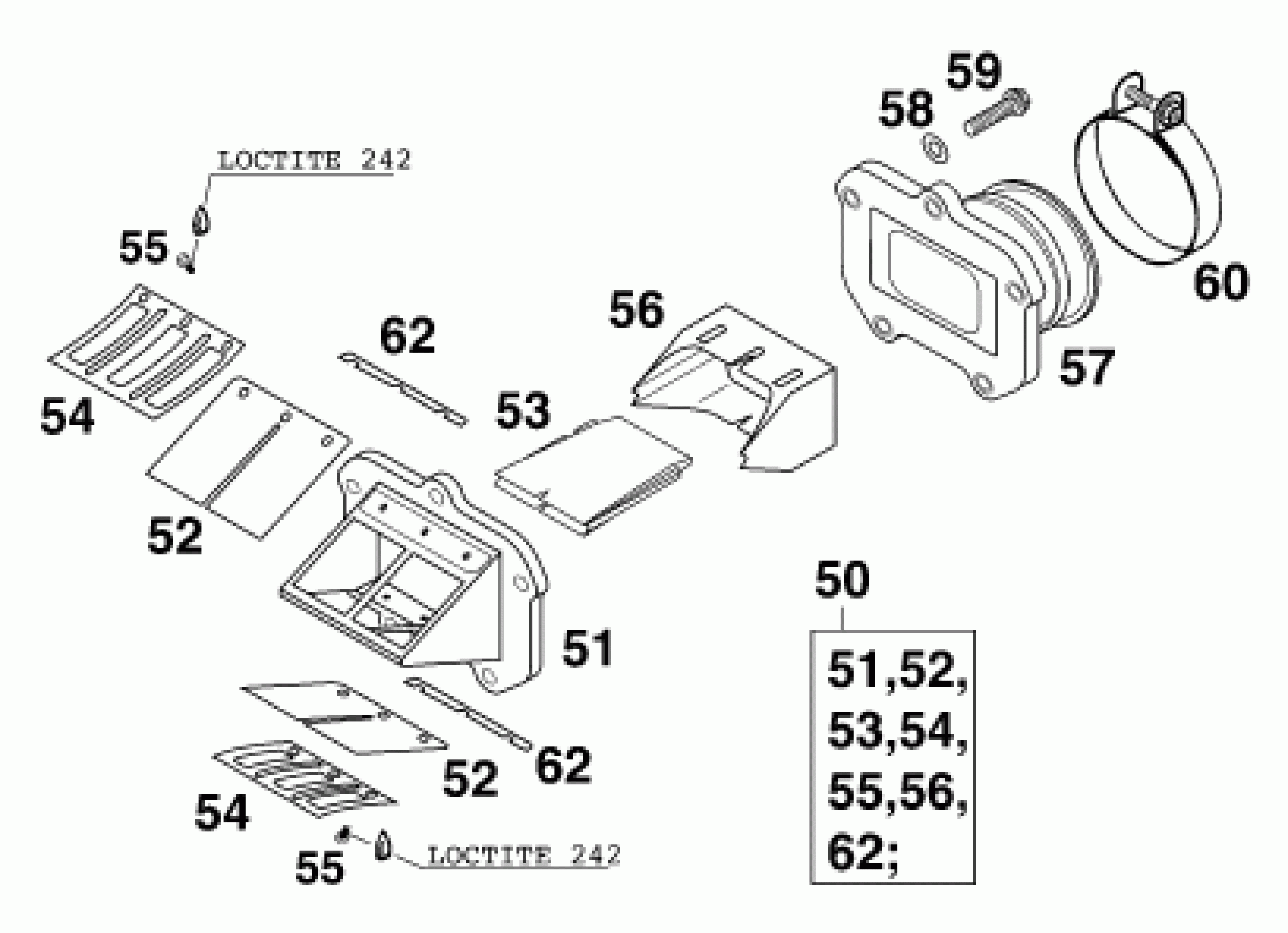

KTM 200 MXC '99 <1999> REED VALVE CASE Diagram

#

Description
Price

50

REED VALVE ASSY CPL125-380'99

54630051444

Unavailable

52

REED VALVE CARBON 0,4MM '99

54730052040

Unavailable

53

REED VALVE WING 125-380 '99

50330054050

Unavailable

54

STOP PLATE TOP

54630053000

Unavailable

55

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

Unavailable

56

REED VALVE INSERT 125-380 '99

50330054000

Unavailable

57

* INTAKE FLANGE 125 '98

50330050000

Unavailable

57

INTAKE FLANGE 200-380

54630050000

Unavailable

58

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

59

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

59

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

60

Hose clip GEMI 52mm

54330061000

Unavailable

62

PAPER STRIP

54230056000

Unavailable
