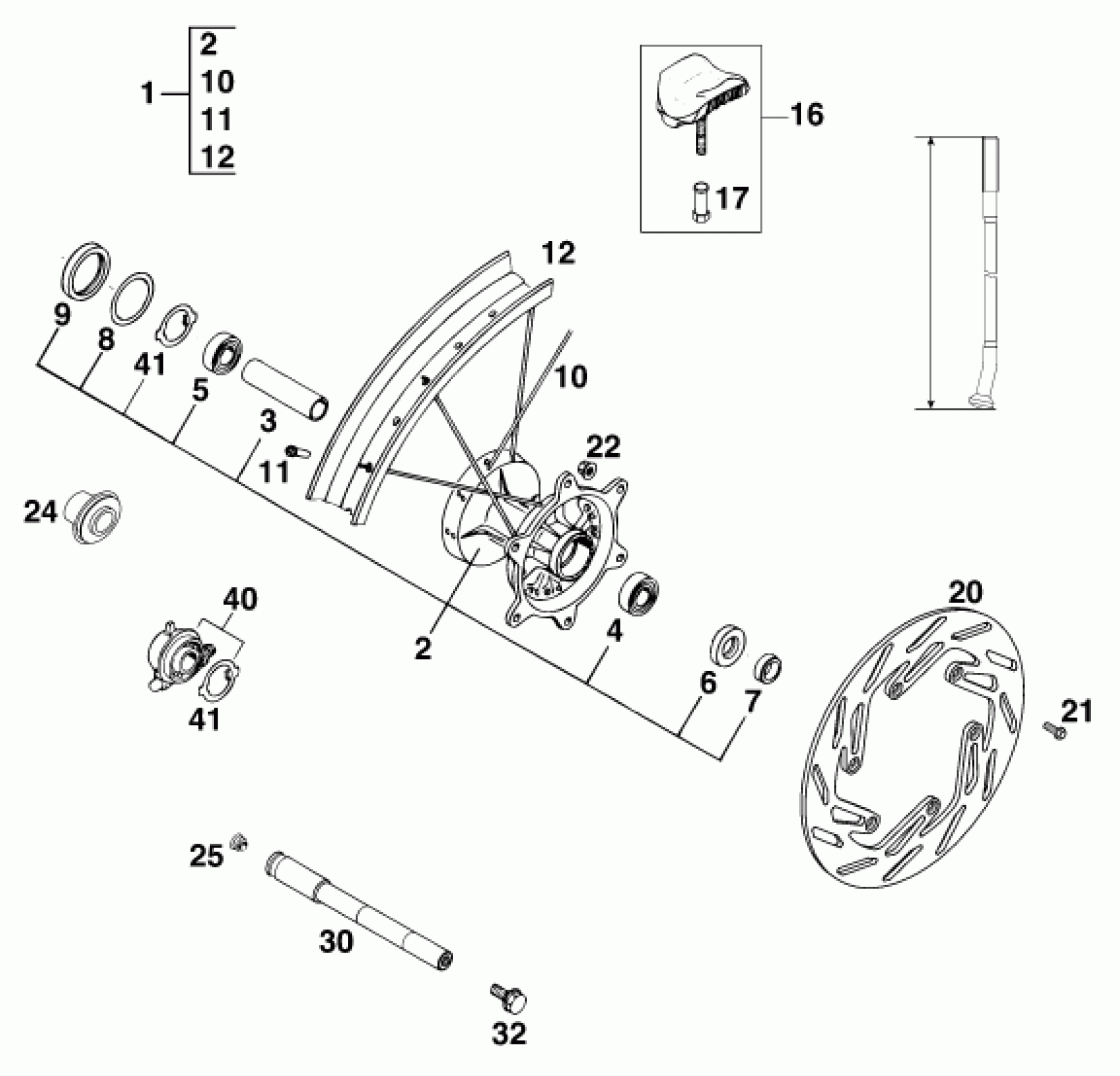

KTM 200 MXC '99 <1999> FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 1,6x21'' DID '9

5800900114490

Unavailable

2

FRONT HUB CPL. SILVER GS'93

5460901004490

Unavailable

3

BEAR.SPACER TUBE 17,5X22X64,5

54609011000

Unavailable

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

5

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

Unavailable

6

SHAFT SEAL RING 25X35X7 BTSL

0760253570

Unavailable

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

WASHER 40 X 52 X 0,15 '92

58111054000

Unavailable

9

SHAFT SEAL RING 40X52X7 B

0760405270

Unavailable

10

SPOKE M5X234-15G 21'' DDE

58309071234

Unavailable

11

STEEL NIPPLE M5

56509072000

Unavailable

12

FRONT RIM 1,6X21'' DID

54609070200

Unavailable

16

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

17

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

20

FRONT BRAKE DISK D=260MM

56509060700

Unavailable

21

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

22

SELF LOCKING NUT M6

56509064000

Unavailable

24

SPACER BUSHING FOR FRONT WHEEL

50309019000

Unavailable

25

PLUG SFL13

55009086000

Unavailable

30

FRONT AXLE L=235MM

50309081000

Unavailable

32

HH COLLAR SCREW M10X20 WS=17

49032011000

Unavailable

40

SPEEDOMETER DRIVE 748217(3,0)

58111052100

Unavailable

41

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

Unavailable
