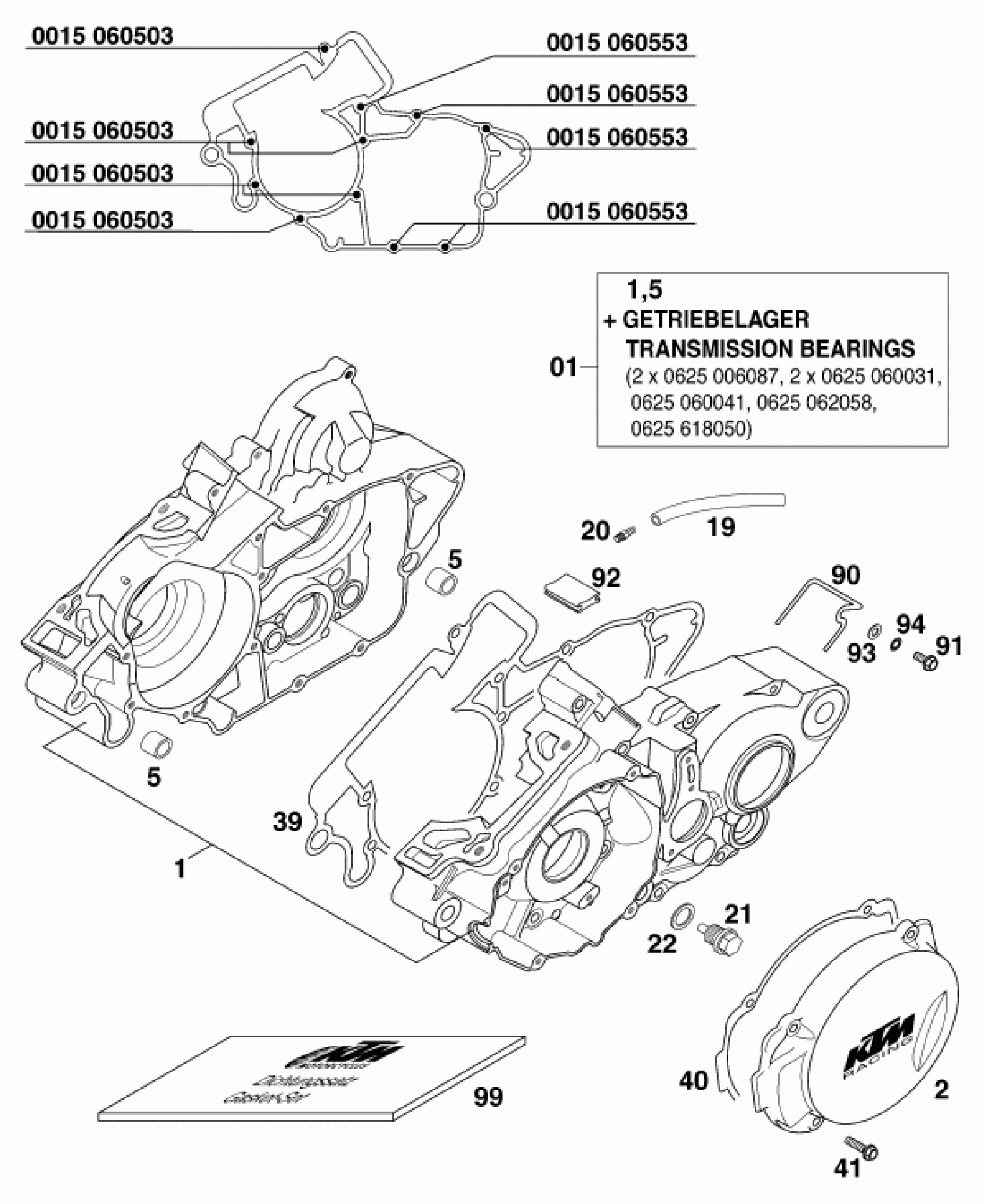

KTM 200 MXC '99 <1999> ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.W.TRAN.BEAR'

50330000044

Unavailable

1

ENGINE CASE CPL.W.TRAN.BEAR'

52330000044

Unavailable

2

IGNITION COVER 125/200 '98

50330002000

Unavailable

5

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

19

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

20

VACUUM CONNECTION M 6X1

58336020090

Unavailable

21

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

22

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

39

ENGINE CASE GASKET 0,5MM '98

50330039000

Unavailable

40

IGNITION COVER GASKET 1MM'98

50330040000

Unavailable

41

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

90

BRACKET FOR BREATHERTUBE

50330090000

Unavailable

91

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

92

OIL GUARD GROMMET 25X31 '98

50330092000

Unavailable

93

WASHER DIN0125-A 5,3

0125050003

Unavailable

94

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

99

GASKET SET 125-200 '98-'05

50330099000

Unavailable
