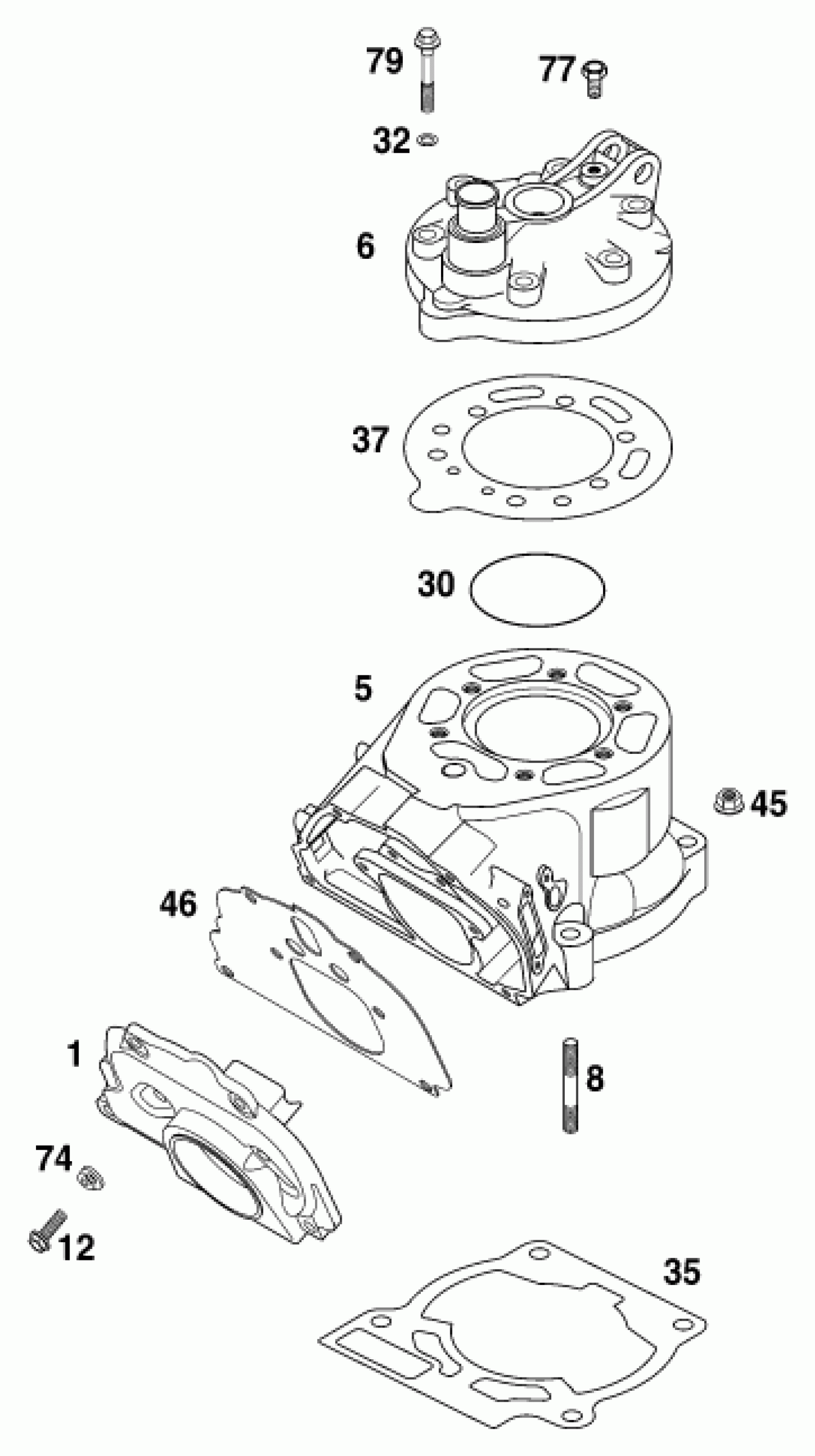

KTM 200 MXC '99 <1999> CYLINDER Diagram

#

Description
Price

1

* INTERMEDIATE FLANGE 125'98

50337001000

Unavailable

1

INTERMEDIATE FLANGE 200'98

52337001000

Unavailable

5

CYLINDER 54,25 MM 125'98

50330005000

Unavailable

5

CYLINDER 64 MM 200'

52330005000

Unavailable

6

% CYLINDER HEAD 125'98

50330006000

Unavailable

6

CYLINDER HEAD 125'99

50330006100

Unavailable

6

CYLINDER HEAD 200'98

52330006000

Unavailable

8

STUD DIN0835-M 8X27

0835080273

Unavailable

8

STUD DIN0835-M 8X35 10.9

0835080355

Unavailable

12

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

30

O-RING 62,00X2,00 VITON

0770062020

Unavailable

30

O-RING 72,00X2,00 VITON

0770720021

Unavailable

32

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

Unavailable

35

CYL.BASE GASKET 0,07MM PAPER

50330035007

Unavailable

35

CYLINDER BASE GASKET 0,15MM

50330035015

Unavailable

35

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

35

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

35

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

35

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

35

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

37

CYL.HEAD GASKET 1,1MM 125'98

50330037000

Unavailable

37

CYL.HEAD GASKET 1,1MM 200'98

52330037000

Unavailable

45

HH COLLAR NUT M 8 WS=12

50330045000

Unavailable

46

INTERMED.GASKET 1,15MM 125'

50337046000

Unavailable

46

INTERMED.GASKET 1,15MM 200'98

52337046000

Unavailable

74

RETAINING PLATE

51005074000

Unavailable

77

HH SCREW DIN0933-M 6X10

0933060103

Unavailable

79

CYL. HEAD BOLT M 7X40 WS=10

50030079000

Unavailable
