Partiron

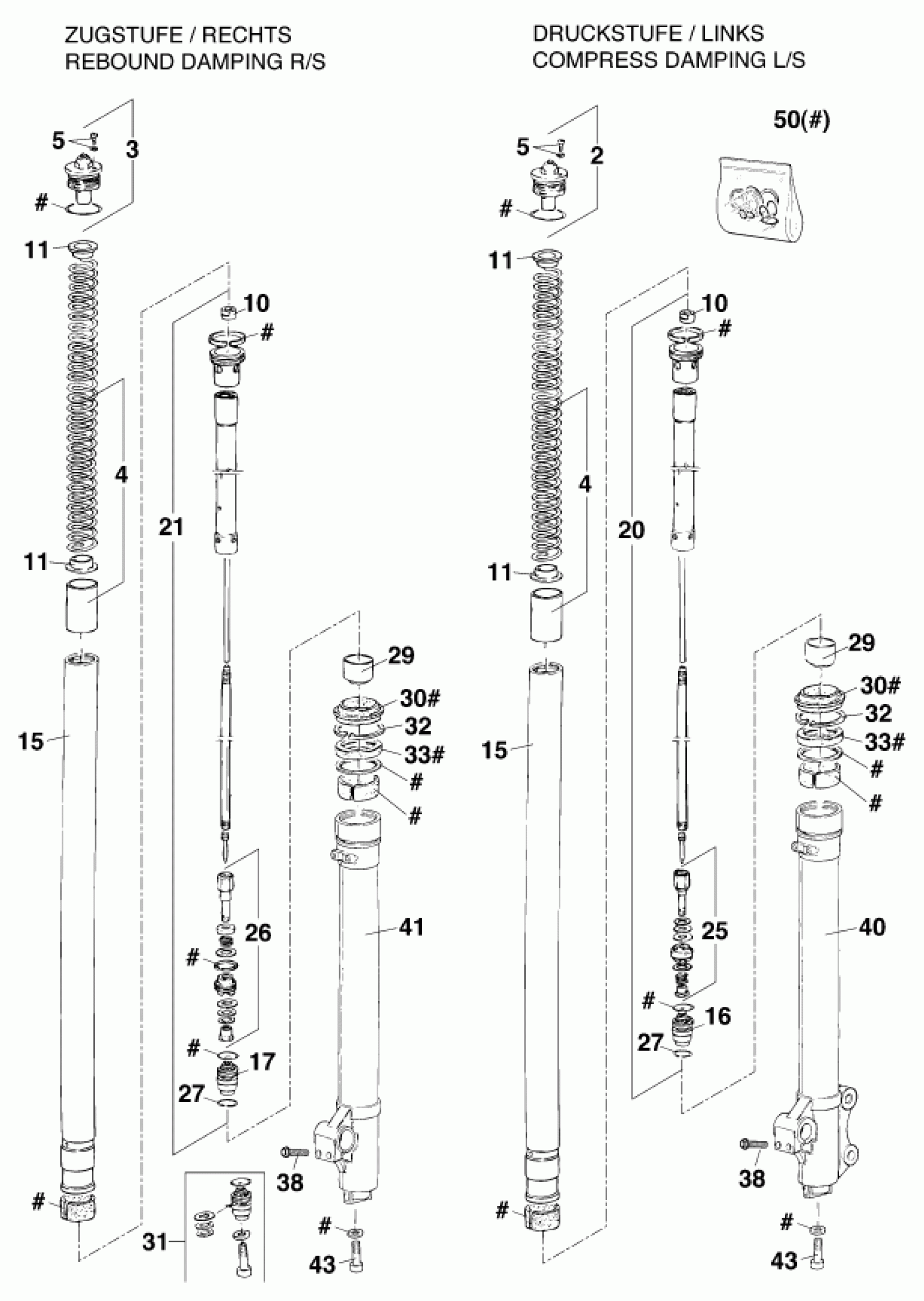

KTM 200 MXC '98 <1998> FRONT FORK DISASSEMBLED Diagram

#

Description
Price

2

SCREW CAP CPL. L/S ''C''

7701164/R

Unavailable

3

SCREW CAP CPL. R/S ''R''

7701165/R

Unavailable

4

* SPRING KIT 4,0 N/MM

7850246

Unavailable

4

SPRING KIT 4,2 N/MM

7850247

Unavailable

4

SPRING KIT 4,5 N/MM

7850248

Unavailable

4

* SPRING KIT 4,8 N/MM

7850249

Unavailable

5

LENTIL HEAD SCREW M4X6

7850208AR

$1.73

10

LOCK NUT

7521119KM

Unavailable

11

SPRING GUIDE CUP

7536071

$18.25

15

FORK TUBE D=45MM

7507437

Unavailable

16

FOOT VALVE L/S TYP 81,82,83,91

7717033

Unavailable

17

FOOT VALVE R/S TYPE 81

7717034

Unavailable

17

FOOT VALVE R/S TYPE 82,83,91

7717035

Unavailable

20

CARTRIDGE L/S TYPE 81 '98

7731287

Unavailable

20

CARTRIDGE L/S TYPE 82,83,91

7731288

Unavailable

21

* CARTRIDGE R/S TYPE 81 '

7731285

Unavailable

21

CARTRIDGE R/S TYPE 82,83 '98

7731286

Unavailable

25

PISTON CPL. L/S TYPE 81

7715061

Unavailable

25

PISTON CPL. L/S TYPE 82,83,91

7715062

Unavailable

26

PISTON CPL.R/S TYP 81,82,83,91

7715060

Unavailable

27

* STOP RING

7523232

Unavailable

29

HYDROSTOP

7532631

$11.92

30

DUST SEAL

7533266

$14.02

31

ADJUSTMENT KIT REBOUND R/S

7850618

Unavailable

32

STOP RING

7523239

$1.49

33

SEAL RING 45X58X11

7528197

$25.61

38

H H COLLAR SCREW M 6X25 WS=10

7520196

$1.73

40

SLIDER TUBE L/S COMPRESS

75031323BS

Unavailable

41

SLIDE TUBE R/S REBOUND

75031326BS

Unavailable

43

AH SCREW MARZOCCHI

7520256

$2.37

50

REPAIR KIT SEALRINGS+BUSHINGS

7850628

$137.36
