ENGINE CASE

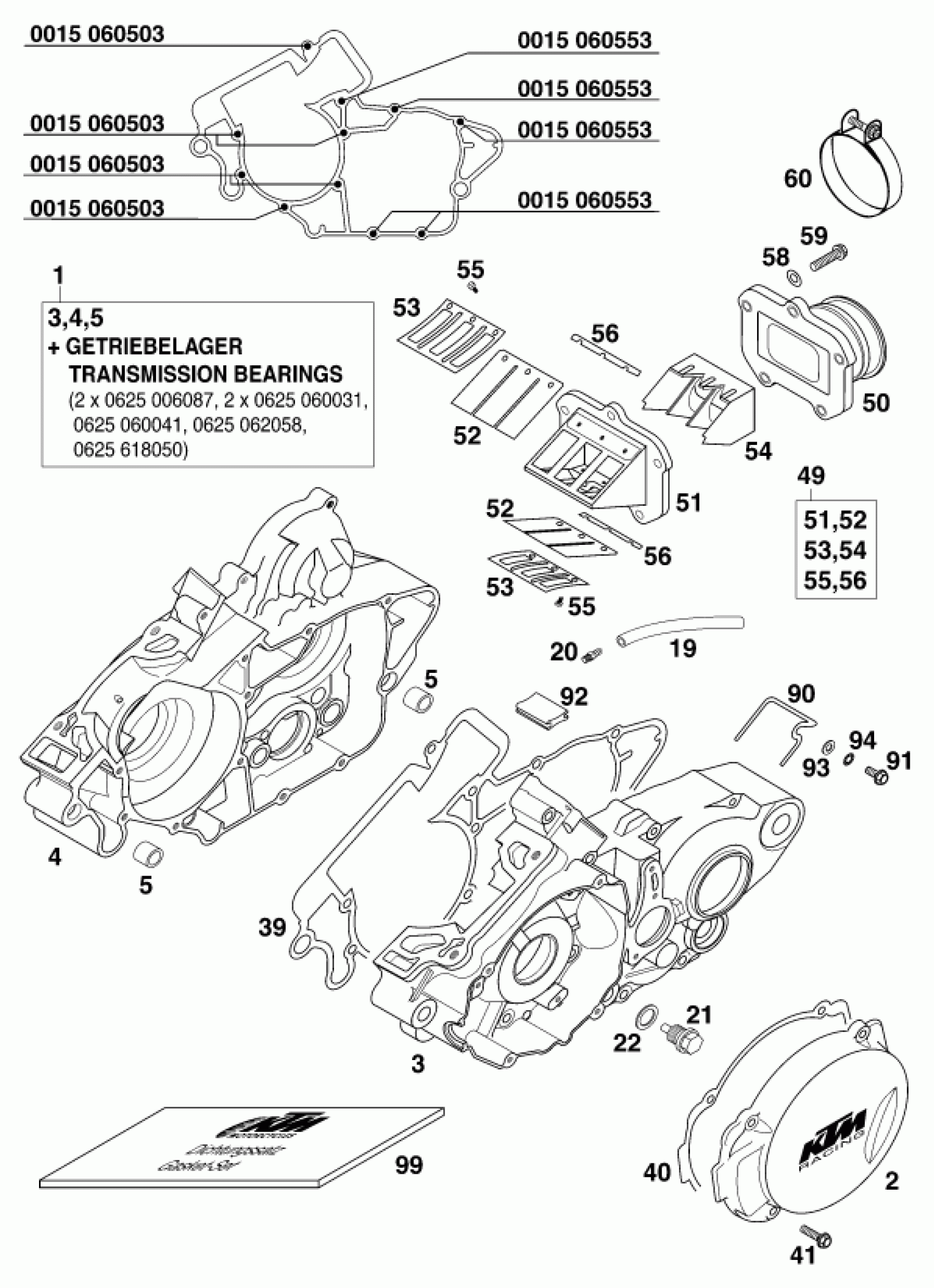

KTM 200 MXC '98 <1998 ENGINE CASE Diagram
#
Description
Price
1
ENGINE CASE CPL.W.TRAN.BEAR'
50330000044
Unavailable
1
ENGINE CASE CPL.W.TRAN.BEAR'
52330000044
Unavailable
2
IGNITION COVER 125/200 '98
50330002000
Unavailable
5
DOWEL BUSHING 13,8X11X12
54630027000
$6.91
19
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
20
VACUUM CONNECTION M 6X1
58336020090
$6.63
21
OILDRAIN PLUG W.MAG. M 12X1,5
58030021000
$11.30
22
CU-seal ring DIN7603-12X18X1.5
58038022000
$2.05
39
ENGINE CASE GASKET 0,5MM '98
50330039000
$16.17
40
IGNITION COVER GASKET 1MM'98
50330040000
$13.74
41
HH COLLAR SCREW M 5X20 WS=8
0015050203
$2.05
49
REED VALVE ASSY CPL. 125 '98
50330051044
Unavailable
49
REED VALVE ASSY CPL. '98
52330051044
$122.00
50
* INTAKE FLANGE 125 '98
50330050000
Unavailable
50
INTAKE FLANGE 200-380
54630050000
$63.10
51
* REED VALVE CASE LOOSE
54430051000
Unavailable
52
REED VALVE CARBON 125
50230052000
$27.22
52
REED VALVE CARBON
52330052000
$32.90
53
STOP PLATE TOP
54630053000
$7.63
54
VELOCITY INSERT
54630054000
Unavailable
55
CYL.HEAD SCREW DIN0084-M 4X8 A
0084040083
$1.49
56
PAPER STRIP
54230056000
$1.49
58
SPRING WASHER DIN0137-B 6
0137060000
Unavailable
59
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
59
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
60
Hose clip GEMI 52mm
54330061000
$7.47
90
BRACKET FOR BREATHERTUBE
50330090000
$5.53
91
HH COLLAR SCREW M 5X12 WS=8
0015050123
$3.08
92
OIL GUARD GROMMET 25X31 '98
50330092000
$3.08
93
WASHER DIN0125-A 5,3
0125050003
$1.49
94
TOOTH LOCK WASH. DIN6797-J 5,3
0797050003
$1.49
99
GASKET SET 125-200 '98-'05
50330099000
$277.13
