Description

Price

54

STOP PLATE TOP

54630053000

$7.63

48

REED VALVE ASSY CPL. 2000

50330051244

$132.12

50

REED VALVE ASSY CPL. 2001

52330051144

$116.26

55

CYL.HEAD SCREW DIN0084-M 4X 6A

0084040063

$1.49

58

spring washer DIN 137 B - 6

0137060003

$2.05

59

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

60

Hose clip GEMI 52mm

54330061000

$7.47

61

REED VALVE SET 0,44MM 2000

50330052044

$75.20

66

REED VALVE CARBON 0,4MM '99

54730052040

$43.38

67

REED VALVE INSERT 2000

50330054100

$6.28

68

INTAKE FLANGE 2000

50330050200

$68.06

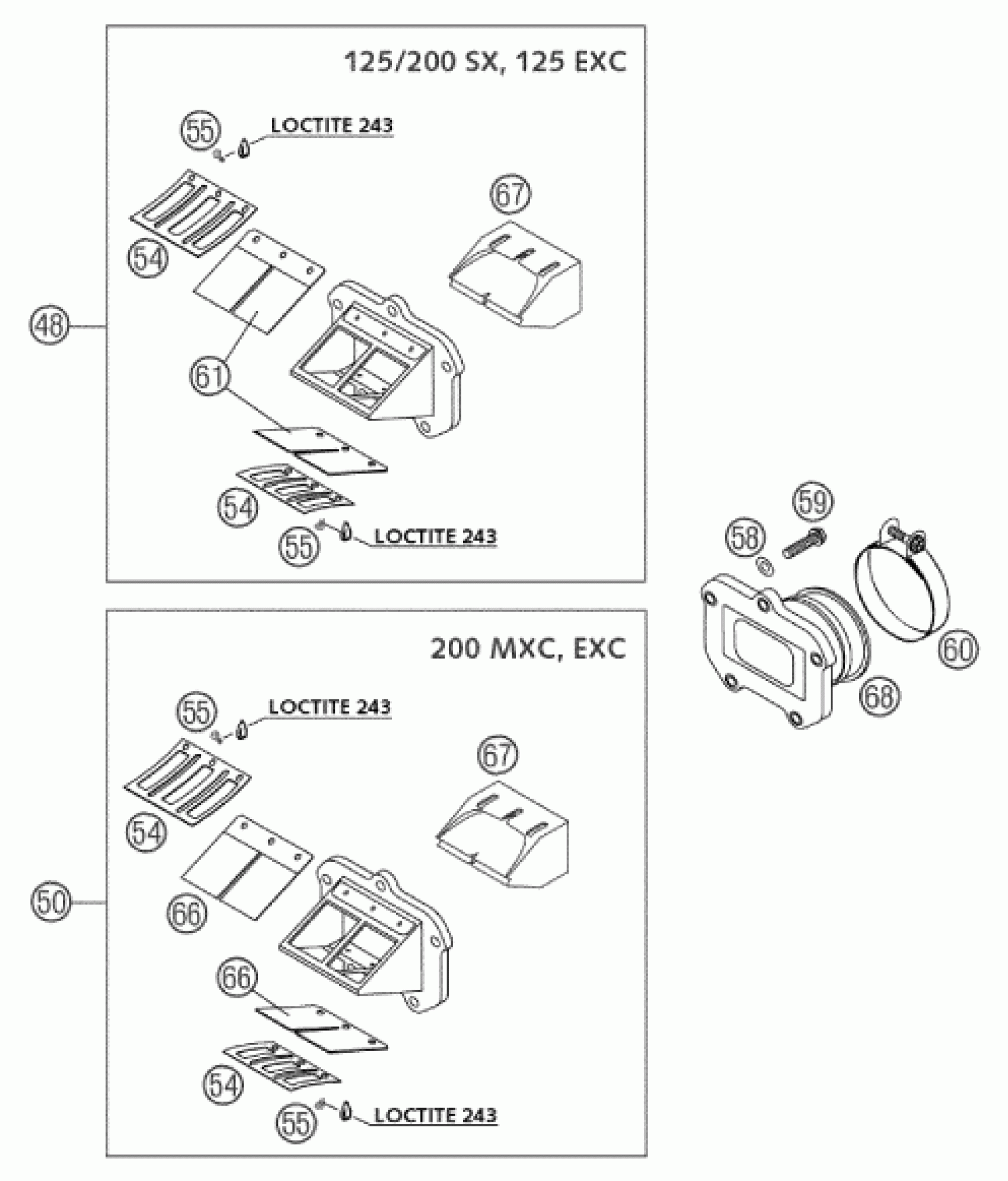

KTM 200 MXC 2003 REED VALVE CASE Diagram
