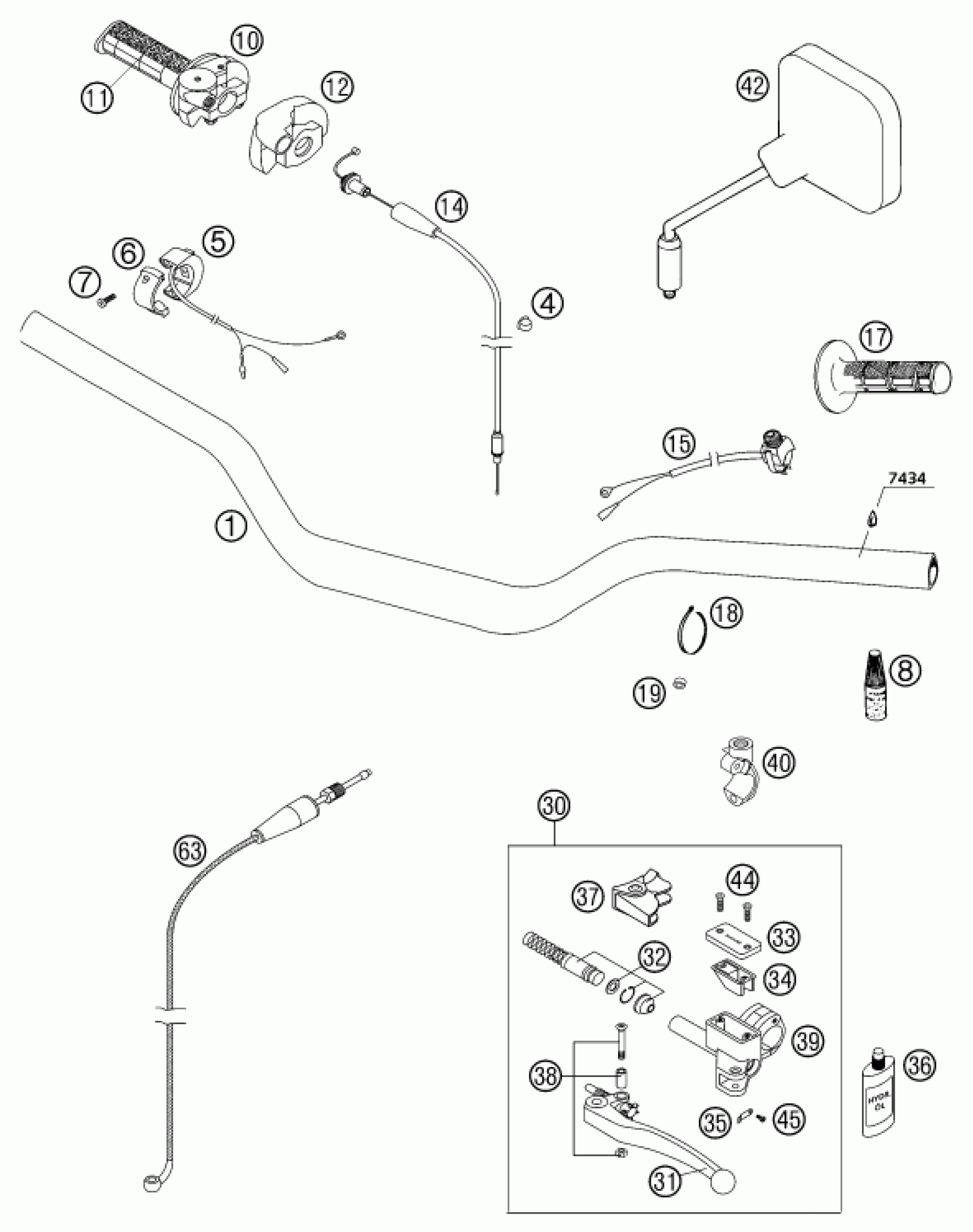

KTM 200 MXC 2003 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM LOW 03

54802001000

$151.84

1

HANDLEBAR 28MM HIGH 2000

59002001000

Unavailable

4

WIRING HOLDER 12MM

57013072000

$4.11

5

ENGINE STOP SWITCH CEV

50311074000

$52.16

6

CLAMP ENGINE STOP SWITCH

50311074050

$3.08

7

FLAT HEAD SCREW DIN7985-M 4X15

0985040153

$2.05

8

GRIP GLUE

6899792

Unavailable

10

THR.TWIST CRIP CPL. W.O C.'97

50302010000

$67.31

11

TWIST GRIP COVER DOMINO BLACK

50202003000

$26.17

12

PROTECTION COVER '97

50302020000

$19.16

14

THROTTLE C. 125-380 DOM/KEIH

50302091000

$39.45

17

FfIXED GRIP DOMINO BLACK '95

50202052000

$26.17

15

Kill switch

50311089200

$37.58

18

Cable tie 200/4.6mm black

44011076200

$1.49

19

SPACER BUSHING 6X10X5

50301089000

$2.05

30

MASTER CYL. CPL. 125-380 20

50302030100

Unavailable

31

CLU.LEVER SHORT CPL. 2T 2000

50302031100

$39.16

31

CLUTCH LEVER CPL. 125-200 '98

50302031000

Unavailable

32

REP.SET PISTON MAGURA D=10.5

50302032000

$70.77

33

COVER HYD.CLUTCH 2T 2000

50302033100

$27.76

34

RUBBER FOR RESERVOIR '98

50302034000

$18.97

35

SPRING PLATE FOR LEVER '98

50302035000

$1.90

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

38

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

39

CLAMP WITH PIN 2000

50302030150

$33.18

40

CLAMP MIRROR WITH PIN

59002044000

Unavailable

42

Rear view mirror left

58012040000

Unavailable

0

Rear view mirror right

58012140000

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

45

AH SCREW DIN7984-M 3X 6

0984030063

$1.49

63

CLUTCH PIPE 125/200 2003

50332063100

$70.18
