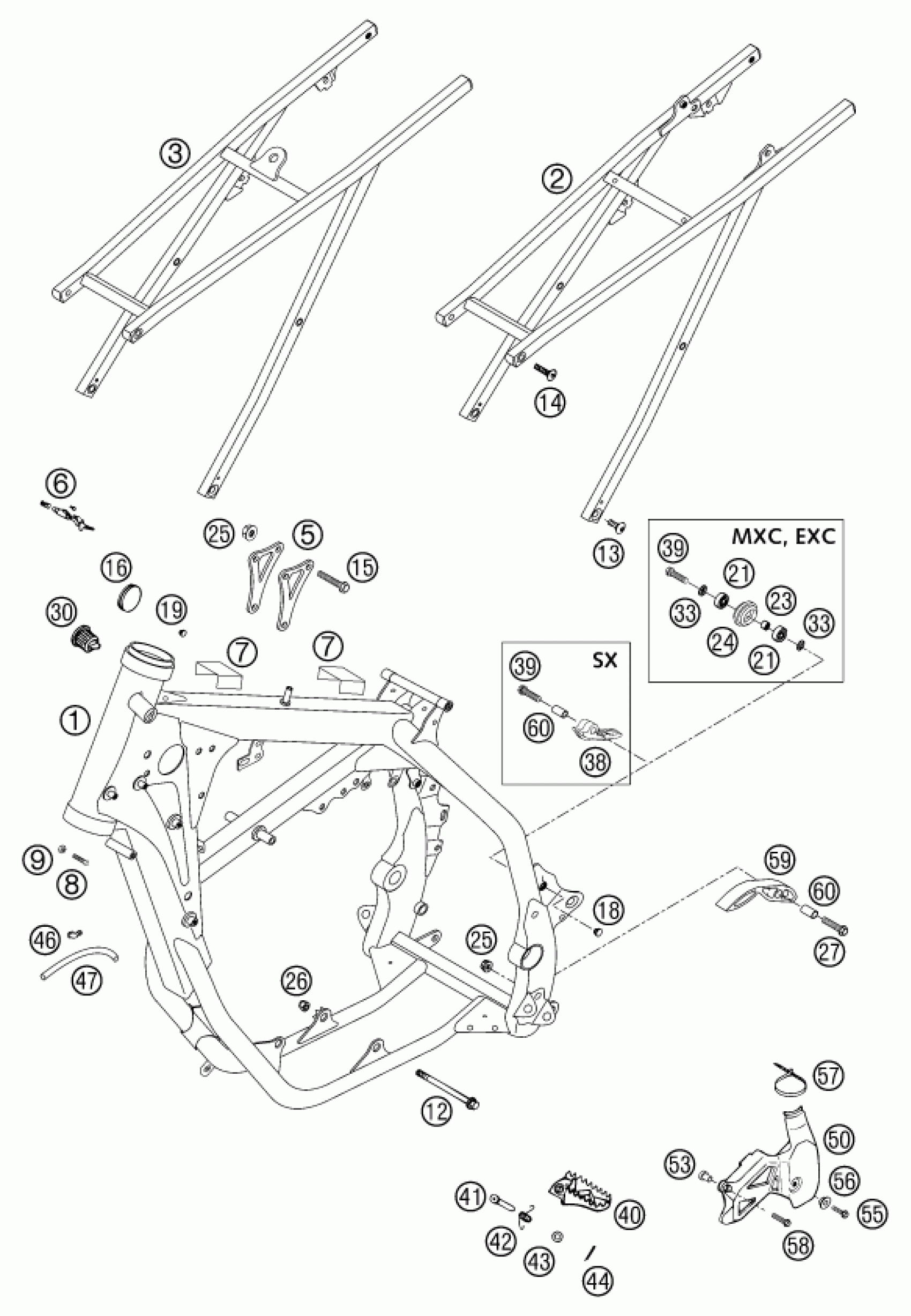

KTM 200 MXC 2003 FRAME Diagram

#

Description
Price

1

FRAME 125/200 EXC-USA "C3" 03

5030300120096

Unavailable

1

FRAME 125/200 EXC-EU ''B3''

5030300130096

Unavailable

1

FRAME 125/200 SX ''A3''

5030300140096

Unavailable

2

SUB FRAME CPL.ALU 125-380 98

50303002044

$259.20

2

SUB FRAME CPL. ALU 125 SX 03

50303002144

$163.29

3

SUB FRAME CPL.200/250SX ''E3''

54803002044

$336.77

5

REINFORCING BRACKET 125 '98

50303013000

$14.15

5

REINFORCING BRACKET 200 '98

52303013000

$15.68

6

STEERING HEAD LOCK CPL. ZADI

71003007000

$32.06

7

METAMOLL 90X45X3MM 03

59003001099

$2.05

8

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

Hexagon nut DIN934 M8

0934080003

$2.05

12

engine brac.scr. M10x105 WS13

54603013000

$12.15

13

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

14

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

15

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

16

PLUG 37MM

54606004000

$2.05

18

PLASTIC CAP SFL10

54403135000

$2.05

19

PLUG

36111021000

$1.49

21

Grooved ball bearing 608 2RS C

0625006087

$21.40

23

BUSHING 8.2 X 12 X 6

74003021000

$3.08

24

CHAIN ROLL D=30MM 125-380 '99

52303053000

$6.91

25

Self locking nut M8 10.9

54310086200

$3.08

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

27

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

30

PLASTIC CAP

42007049000

$1.49

33

LOCK WASHER 8MM

36003014000

$2.05

38

CHAIN SLIDING PIECE 03

54804067000

$5.23

39

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

40

FOOT PEG L/S SILVER 02

59003040250

$43.66

0

FOOT PEG R/S SILVER 02

59003041250

$43.66

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

46

ANGLE PIECE '97

50303089000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

SPROCKET COVER

54607061000

$13.94

53

COLLAR BUSHING 6,4X8X12X15,5

54703092050

$2.32

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

56

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

57

Cable tie 200/4.6mm black

44011076200

$1.49

58

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

59

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

60

BUSHING 8,2X10X20

51103053051

Unavailable
