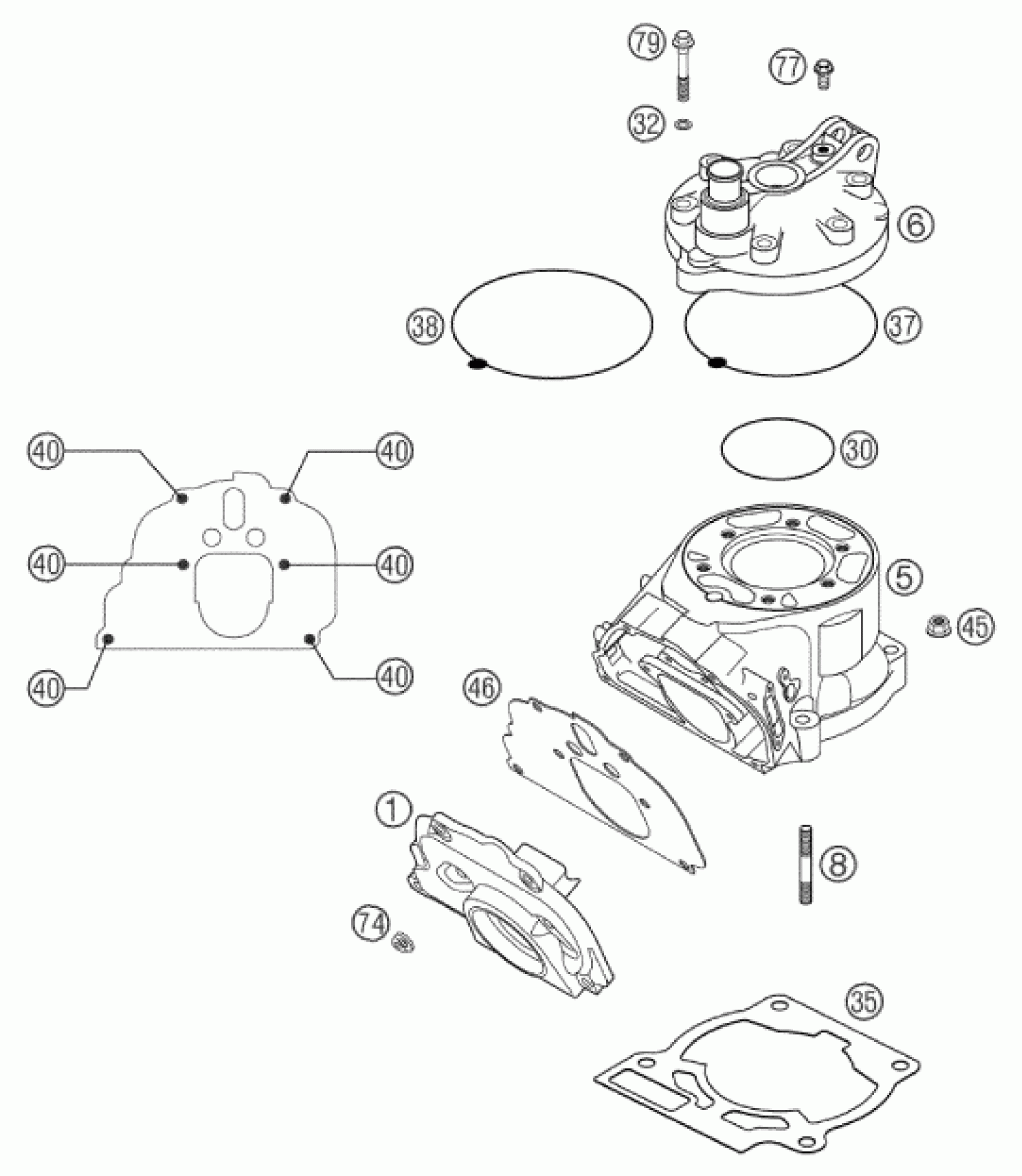

KTM 200 MXC 2003 CYLINDER Diagram
#
Description
Price
35
CYLINDER BASE GASKET 0,40MM
50330035040
Unavailable
35
CYLINDER BASE GASKET 0,50MM
50330035050
Unavailable
35
CYLINDER BASE GASKET 0,75MM
50330035075
Unavailable
1
INTERMEDIATE FLANGE 125 2000
50337001100
$84.57
1
INTERMEDIATE FLANGE 200 2000
52337001200
$89.19
5
CYLINDER 125 2002
50330005300
$642.44
5
CYLINDER 200 2003
52330005300
$777.63
6
CYLINDER HEAD 125 SX/EXC 2002
50330006400
$118.52
6
CYLINDER HEAD 200 2003
52330006100
$122.15
8
STUD DIN0835-M 8X27
0835080273
$3.08
8
STUD DIN0835-M 8X35 10.9
0835080355
$3.08
30
O-RING 62,00X2,00 VITON
0770062020
$9.34
30
O-RING 72,00X2,00 VITON
0770720021
$5.70
32
CU-SEAL RING 7,3 X 12 X 0,5
50230032010
$1.49
35
CYL.BASE GASKET 0,07MM PAPER
50330035007
Unavailable
35
CYLINDER BASE GASKET 0,15MM
50330035015
Unavailable
35
CYLINDER BASE GASKET 0,20MM
50330035020
Unavailable
35
CYLINDER BASE GASKET 0,25MM
50330035025
Unavailable
37
CYL.HEAD SEAL RING 125 2002
50330137000
$12.43
38
CYL.HEAD SEAL RING 200 2003
52330137000
$12.61
40
HH COLLAR SCREW M 5X20 WS=8
0015050203
$2.05
45
HH COLLAR NUT M 8 WS=12
50330045000
$2.05
46
INTERMED.GASKET 1,1MM 125 2000
50337046100
$13.60
46
INTERMED.GASKET 1,1MM 200 2000
52337046100
$9.53
74
RETAINING PLATE
51005074000
$3.08
77
HH COLLAR SCREW M 6X10 WS=8
0015060103
$3.08
79
CYL. HEAD BOLT M 7X40 WS=10
50030079000
$9.90
