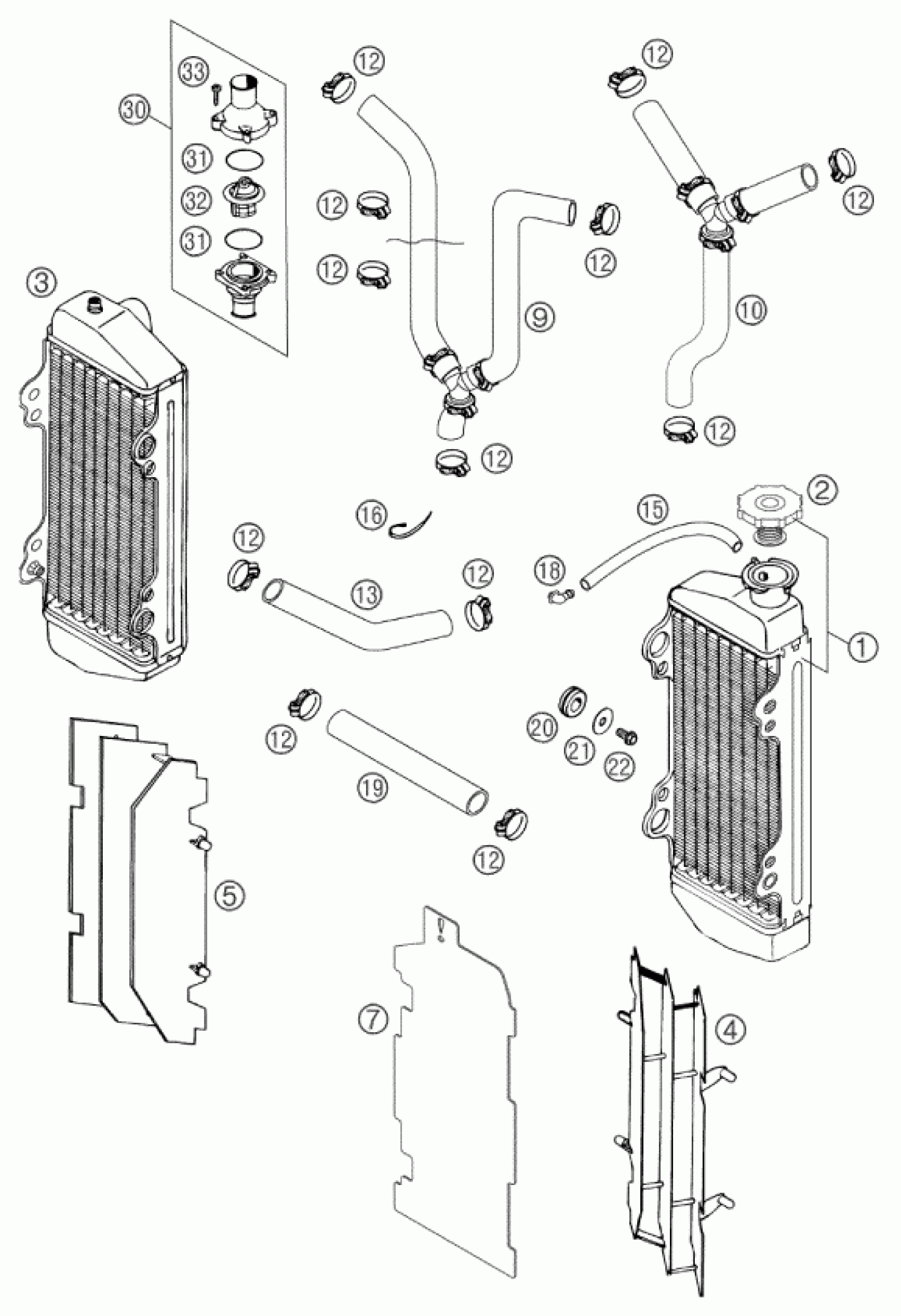

KTM 200 MXC 2003 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S NATURE (45286)98

50335007000

$336.13

2

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

$15.98

3

RADIATOR R/S NATURE (45285)98

50335008000

$302.31

4

RADIATOR PROTECTION LEFT '95

54635034200

$8.50

5

RADIATOR PROTECT.RIGHT '95

54635134200

$6.82

7

COVER FOR RADIATOR L/S BLACK

50335033000

$5.83

9

RADIATOR HOSE CPL. 125-380'98

50335026000

$49.92

10

RADIATOR HOSE INCL. Y-PART 03

50335026200

$27.88

12

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

13

RADIATOR HOSE 18X25 125/200'98

50335027000

$16.45

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

18

ANGLE PIECE '97

50303089000

$5.23

19

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

20

RUBBER SLEEVE D=12MM

41001052000

$4.11

21

Washer DIN9021-A 6.4

0021060003

$2.05

22

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

30

THERMOSTATCASE CPL. 55DEG. '98

54635013144

$70.10

31

O-RING 32,00X2,00

0770320020

$2.05

32

THERMOSTAT 55 DEGREES '94

54635017000

$51.00

33

SCREW FOR PLASTIC D=4X18

0016040183

$2.05
