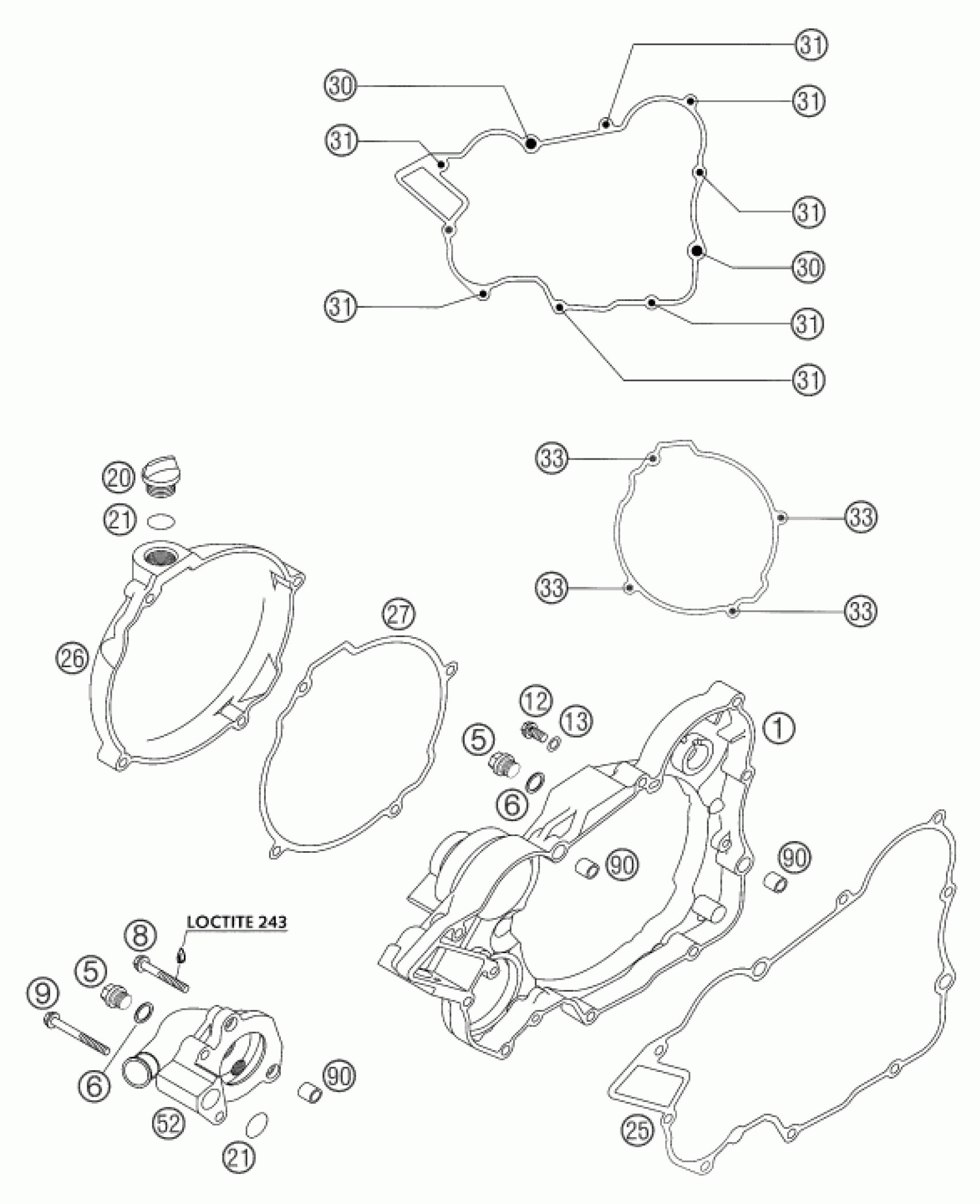

KTM 200 MXC 2003 CLUTCH COVER Diagram

CLUTCH COVER CPL.125/200 02

5033000114498

$199.80

PLUG DIN0910-M 10X1

0910100003

$4.11

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

PLUG M 24X3

58030020000

$5.23

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

CLUTCH COVER GASKET 0,5MM

50330025000

$15.14

CLUTCH OUTS.COVER 125/200 01

5033002600098

$82.18

CLUTCH OUTS.COVER GASKET 1MM

50330027000

$14.58

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

WATER PUMP COVER 125/200 98

50335052000

$83.86

DOWEL 9,8 X 7 X 10

49030090000

$2.05
