CARBURETOR

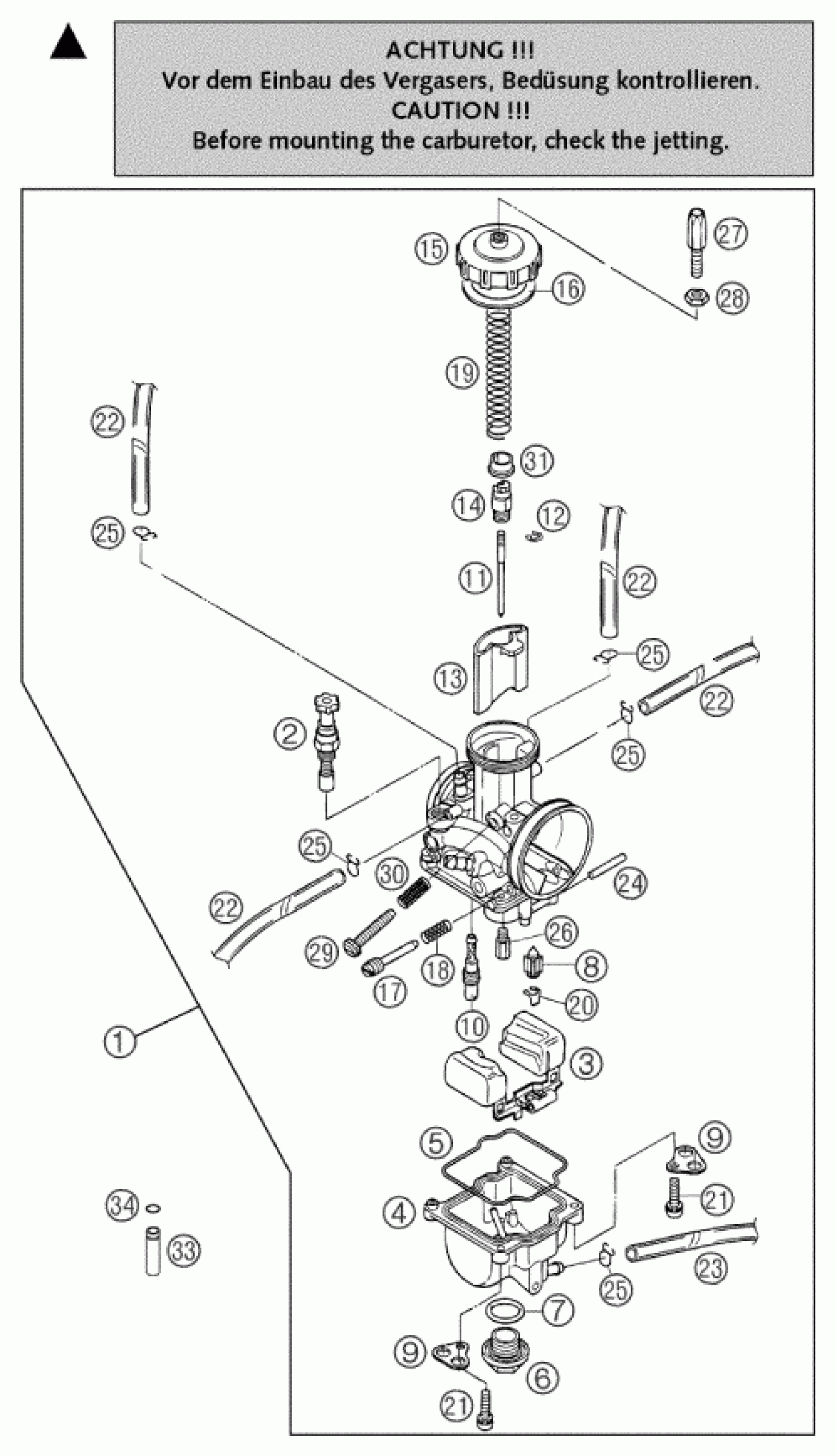

KTM 200 MXC 2003 CARBURETOR Diagram
#
1
CARBURETOR KEIHIN PWK 39 2002
50331001744
$263.27
1
CARBURETOR KEIHIN PWK 38AG 02
50331001944
$300.95
2
STARTER PISTON CPL.
54631245000
$89.94
3
FLOAT R-39 16GRAM
54631209000
$50.39
4
FLOAT CHAMBER
54631211000
$72.23
5
GASKET FLOAT CHAMBER
54531610000
$10.00
6
PLUG M 18X1
54531699000
$20.09
7
O-RING 18,00X2,30 NBR 70
0770180230
$3.08
8
FLOAT NEEDLE
54631220000
$31.41
9
RETAINING PLATE FOR BLEEDER
54531612100
$3.08
10
IDLE JET 35 KEIHIN
54531607035
Unavailable
10
IDLE JET 38 KEIHIN
54531607038
Unavailable
10
IDLE JET 40 KEIHIN
54531607040
Unavailable
10
IDLE JET 42 KEIHIN
54531607042
Unavailable
10
IDLE JET 45 KEIHIN
54531607045
$12.52
10
IDLE JET 48 KEIHIN
54531607048
$12.61
10
IDLE JET 50 KEIHIN
54531607050
Unavailable
10
IDLE JET 52 KEIHIN
54531607052
Unavailable
10
IDLE JET 55 KEIHIN
54531607055
Unavailable
10
IDLE JET 58 KEIHIN
54531607058
Unavailable
10
IDLE JET 60 KEIHIN
54531607060
Unavailable
10
IDLE JET 62 KEIHIN
54531607062
Unavailable
10
IDLE JET 65 KEIHIN
54531607065
Unavailable
10
IDLE JET 70 KEIHIN
54531607070
Unavailable
10
IDLE JET 75 KEIHIN
54531607075
Unavailable
10
IDLE JET 80 KEIHIN
54531607080
Unavailable
11
JET NEEDLE NOZ D KEIHIN
54531636004
Unavailable
11
JET NEEDLE NOZ E KEIHIN
54531636005
$20.56
11
JET NEEDLE NOZ F KEIHIN
54531636006
Unavailable
11
JET NEEDLE NOZ G KEIHIN
54531636007
Unavailable
11
JET NEEDLE NOZ H KEIHIN
54531636008
Unavailable
11
JET NEEDLE NOZ I KEIHIN
54531636009
Unavailable
11
JET NEEDLE R 1467 D KEIHIN
54531634367
Unavailable
11
JET NEEDLE R 1468 D KEIHIN
54531634368
Unavailable
11
JET NEEDLE R 1469 D KEIHIN
54531634369
$16.17
11
JET NEEDLE R 1470 D KEIHIN
54531634370
Unavailable
11
JET NEEDLE R 1475 J KEIHIN
54531634175
$14.48
11
JET NEEDLE R 1472 N KEIHIN
54531634272
$9.41
11
JET NEEDLE KEIHIN R1468G 03
54731034200
$13.27
11
JET NEEDLE KEIHIN R1469G 03
54731034300
Unavailable
12
CLIP FOR JET NEEDLE
54531629000
$3.08
13
THROTTLE VALVE 60 KEIHIN
54631235006
Unavailable
13
THROTTLE VALVE 65 KEIHIN
54631235106
$196.83
13
THROTTLE VALVE 55 KEIHIN
54631235055
$122.67
14
NIPPLE
54631232000
$38.79
15
CARBURETOR COVER
54631227000
$44.87
16
RUBBER SEAL RING 40X46X1
54531628000
$5.98
17
ADJUSTMENT SCREW
54531617000
$8.50
18
SPRING FOR ADJUSTMENT SCREW
54531615000
$3.08
19
SLIDING SPRING
54631230000
Unavailable
20
CLAMP
54531621000
$4.11
21
HH COLLAR SCREW M 4X16 WS=6
0016040163
$2.05
22
PVC-HOSE 4X6MM
31007007101
$4.11
23
PVC-HOSE 3X5MM
52031137001
Unavailable
24
STUD 2,5X25
54531608000
$2.05
25
Clamp 6mm
54531696000
Unavailable
26
MAIN JET 142 KEIHIN
54531623142
Unavailable
26
MAIN JET 148 KEIHIN
54531623148
$12.61
26
MAIN JET 150 KEIHIN
54531623150
Unavailable
26
MAIN JET 158 KEIHIN
54531623158
Unavailable
26
MAIN JET 160 KEIHIN
54531623160
Unavailable
26
MAIN JET 165 KEIHIN
54531623165
Unavailable
26
MAIN JET 170 KEIHIN
54531623170
Unavailable
26
MAIN JET 172 KEIHIN
54531623172
Unavailable
26
MAIN JET 175 KEIHIN
54531623175
Unavailable
26
MAIN JET 178 KEIHIN
54531623178
$13.64
26
MAIN JET 180 KEIHIN
54531623180
$12.71
26
MAIN JET 182 KEIHIN
54531623182
Unavailable
26
MAIN JET 185 KEIHIN
54531623185
$12.80
26
MAIN JET 188 KEIHIN
54531623188
Unavailable
26
MAIN JET 192 KEIHIN
54531623192
Unavailable
26
MAIN JET 195 KEIHIN
54531623195
Unavailable
27
ADJUSTMENT SCREW M 6X0,75
54531625000
$8.03
26
MAIN JET 190 KEIHIN
54531623190
$12.61
28
HEXAGON NUT M 6X0,75 DIN0439
52031126000
$8.41
29
ADJUSTMENT SCREW M 5
54631219100
$17.01
30
SPRING
54631118000
$9.81
31
SPRING CAP
54631231000
$10.65
33
SLIDE STOP L=36MM
50331029036
Unavailable
34
O-RING 6,07X1,78 FPM75
0770060018
Unavailable
