TANK, SEAT

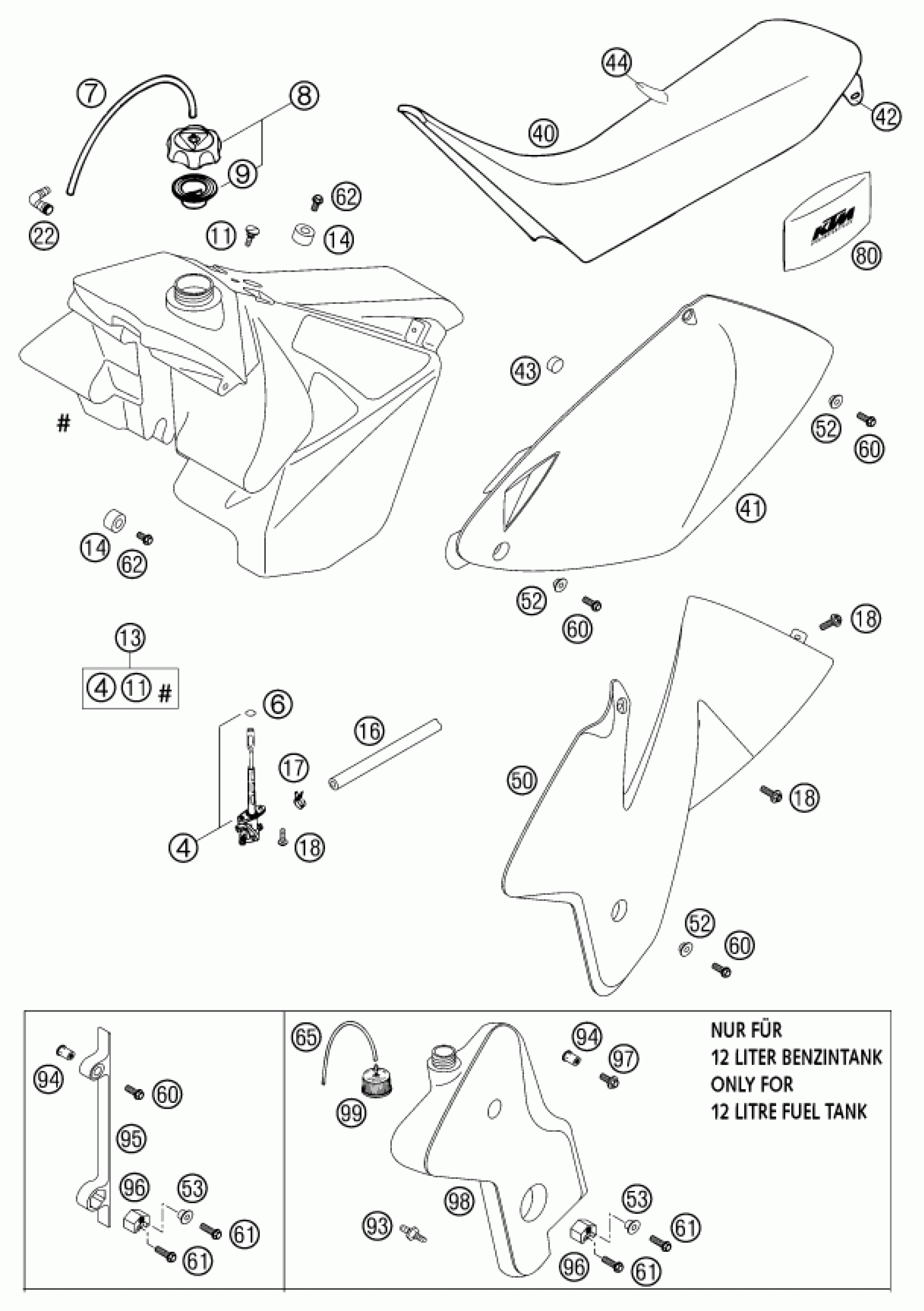

KTM 200 MXC 2002 TANK, SEAT Diagram
#
4
FUEL COCK CPL. OFF-ON-RES
58307105200
$44.68
6
O-RING 11X1,8 NBR 70
55007006200
$2.05
7
PVC-HOSE 6X9 MM PER METER
31007107001
Unavailable
8
FILLER CAP CPL. WITH VALVE
59007008044
$24.58
9
GASKET FOR FILLER CAP HIGH
59007009000
$8.03
11
SCREW SEAT FASTENING D=6X23/18
50307011000
$3.08
13
FUEL TANK CPL. 9 LITRE 2001
50307013200
$238.99
13
FUEL TANK CPL. 12 LITRE 2001
52307013100
$185.94
14
TANK ROLLER 12X26X12 '98
50307014000
$11.02
16
FUEL HOSE VITON 6X1,5 PER/M
58307016001
Unavailable
17
YDNAC-CLAMP 10107 10MM
58007117000
$3.08
18
EJOT PT SCREW K60X20 WS=6
0017060203
$2.05
22
ANGLE PIECE 90 DEGREE M10X1
51030022000
$5.23
40
SEAT EXC 2001
50307040400
$143.43
40
SEAT MXC 2001
50307040500
$113.29
40
SEAT BLACK / KTM WHITE 2000
50307040000
$99.28
41
SIDE COVER L/S BLACK '99
5030804100030
Unavailable
0
SIDE COVER R/S BLACK '99
5030804200030
$21.93
42
SEAT BRACKET L/S-R/S '98
50307041000
$6.62
43
RUBBER FOR SIDE COVER '98
50308042055
$4.11
44
SEAT COVER EXC 2001
50307040450
$63.53
44
SEAT COVER MXC 2001
50307040550
$64.23
44
SEATCOVER BLACK/KTM WHITE '00
50307040050
$35.11
50
SPOILER L/S ORANGE EXC 01
5030805010004
$36.83
50
SPOILER L/S ORANGE '98
5030805000004
$24.95
0
SPOILER R/S ORANGE EXC 2001
5030805110004
$30.48
0
SPOILER R/S ORANGE GS '99
5230805100004
Unavailable
52
BUSH FOR SPOILER 6X11X16X5 MM
50308052000
$1.96
53
BUSH FOR SPOILER 6X11X16X7,5
50308053000
$5.70
60
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
61
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
62
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
65
PCV HOSE 3X6X270
51207000270
$2.55
80
ORIGINAL EQUIPMENT TOOL KIT
50212100100
Unavailable
93
HOSE CONNECTION FOR OILTANK
52338061050
Unavailable
94
BLIND RIVET NUT M 6X15,5 STEEL
55003139600
$1.49
95
SPOILER ADAPTER '98
50335095000
$7.46
96
TANK ADAPTER BUSH '98
50335096000
$9.54
97
HH COLLAR SCREW M 6X20 WS=8
0014060203
$2.05
98
ADDITIONAL TANK L/S 125-380'99
52338161000
$52.51
0
ADDITIONAL TANK R/S 125-380'99
52338061000
$69.50
99
OIL TANK CAP
49138491044
$10.11
