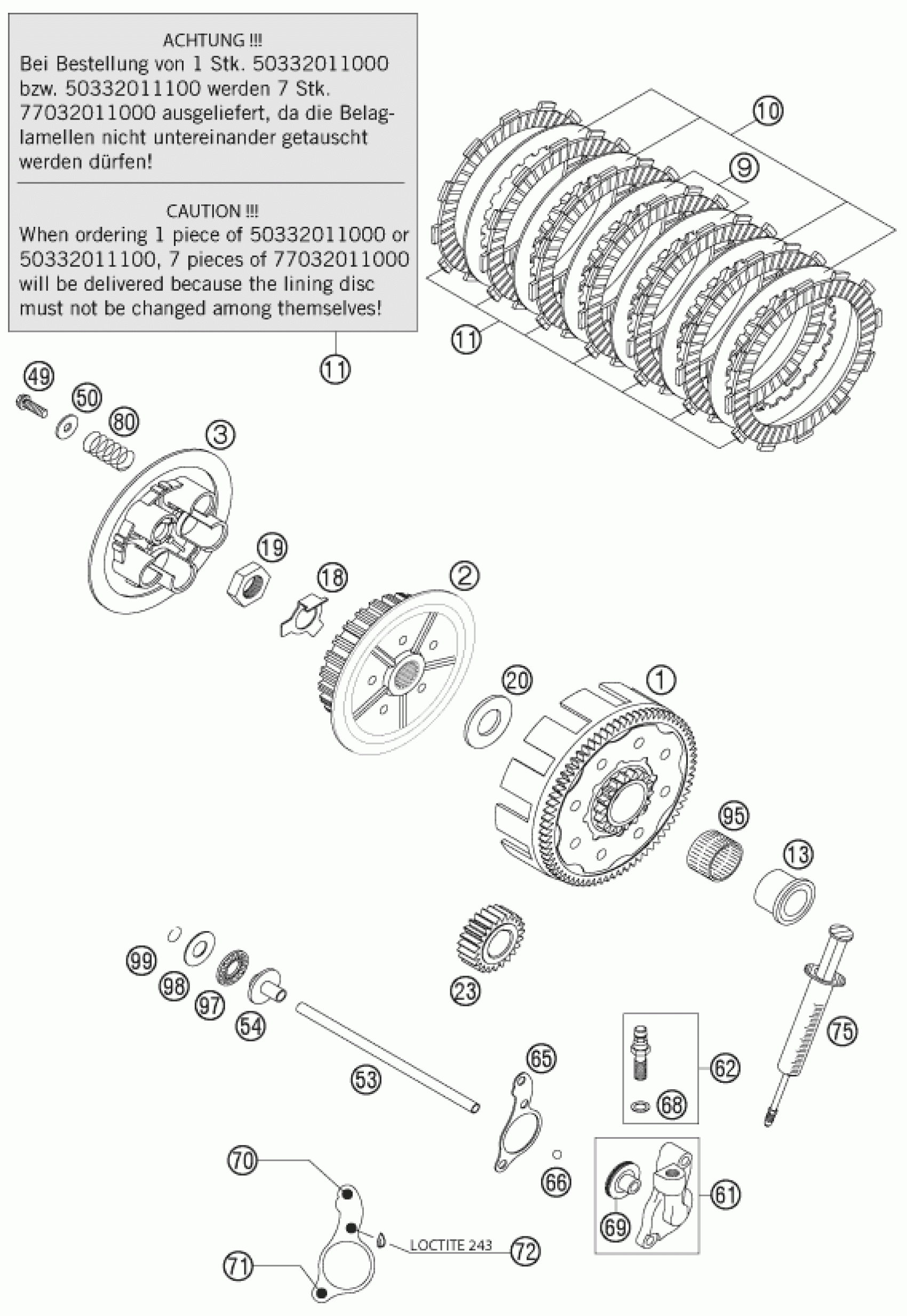

KTM 200 MXC 2002 CLUTCH Diagram
#
Description
Price
1
OUTER CLUTCH H.73-T 125/200
50332000073
$451.97
2
INNER CLUTCH HUB 125/200'98
50332002000
$115.09
3
PRESSURE PLATE 125/200'98
50332003000
$86.95
9
INTERMEDI. DISC STEEL 1,5MM'98
50332010100
$14.76
10
INTERM'IATE DISC ALU 1,5MM'98
50332010000
$21.03
11
ORGANIC DISK 3MM '98
50332011000
$36.27
13
INNER RING 20X26X25,9 '98
50332013000
$30.19
18
SHEET METAL LOCK 1,5MM '98
50332018000
$6.26
19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
$7.75
20
STOP DISK 20X39,6X3 '98
50332020000
$16.35
23
PRIM. PINION 23-T 125/200'98
50332023023
$95.83
49
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
50
WASHER 6,2X18X2
50232050000
$5.23
53
PUSH ROD L=179MM 125/200'98
50332017200
$11.96
54
PRESSURE PIECE 125-380 '98
50332054051
$26.45
61
CYLINDER CPL. 125/200'98
50332061044
$166.61
62
Hollow screw cmpl. M 10x1 98
50332062000
$34.96
65
CLUTCH RELEASE GASKET 0,3MM
50332065051
Unavailable
65
CLUTCH RELEASE GASKET 0,5MM
50332065052
Unavailable
65
CLUTCH RELEASE GASKET 0,75MM
50332065053
Unavailable
66
BALL DIN5401-7
0401070003
$1.49
68
CU-SEAL RING DIN7603-10X16X1
42013226000
$2.05
69
PISTON W. O-RING 125/200 2000
50332066000
$89.94
70
HH COLLAR SCREW M 6X40 WS=8
0015060403
$3.08
71
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
72
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
75
VENT INJEKTION HYDR. CLUTCH
50329050000
$75.26
80
CLUTCH SPRING 2,3X39,5 125'98
50332005000
$8.03
80
CLUTCH SPRING 2,4X40 200'98
52332005000
$3.08
95
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
$23.83
97
AXIAL NEEDLE BEARING AXK 1226
54637097200
$10.18
98
AXIAL WASHER AS1226 12X26X1
54637098200
$5.23
98
AXIAL WASHER 12,5X25,8X1,5
54637098300
Unavailable
99
CIRCLIP DIN7993-RW12
0993012000
$3.08
