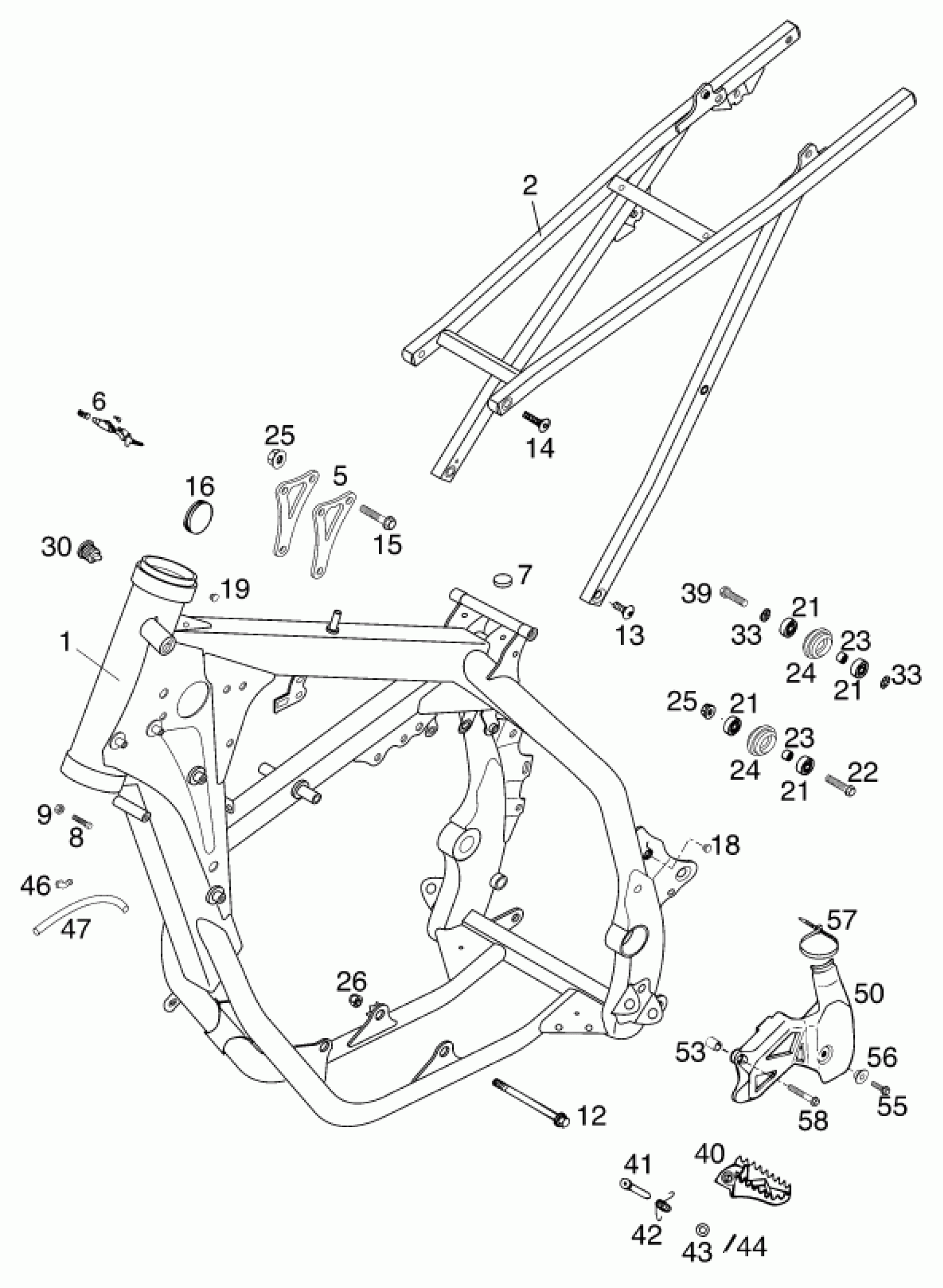

KTM 200 MXC 2001 FRAME Diagram

#

Description
Price

0

FOOT PED R/S EXC SILVER 2000

59003041050

$42.72

1

FRAME 125/200 MXC,EXC ''C0''

50303001200

Unavailable

2

SUB FRAME CPL.ALU 125-380 98

50303002044

$259.20

5

REINFORCING BRACKET 200 '98

52303013000

$15.68

6

STEERING HEAD LOCK CPL. ZADI

71003007000

$32.06

7

RUBBER BUFFER FOR TANK '98

50307020000

$4.11

8

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

Hexagon nut DIN934 M8

0934080003

$2.05

12

engine brac.scr. M10x105 WS13

54603013000

$12.15

13

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

14

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

15

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

16

PLUG 37MM

54606004000

$2.05

18

PLASTIC CAP SFL10

54403135000

$2.05

19

PLUG

36111021000

$1.49

21

Grooved ball bearing 608 2RS C

0625006087

$21.40

22

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

23

BUSHING 8.2 X 12 X 6

74003021000

$3.08

24

CHAIN ROLL D=30MM 125-380 '99

52303053000

$6.91

25

Self locking nut M8 10.9

54310086200

$3.08

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

30

PLASTIC CAP

42007049000

$1.49

33

LOCK WASHER 8MM

36003014000

$2.05

39

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

40

FOOT PED L/S EXC SILVER 00

59003040050

$43.84

41

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

46

ANGLE PIECE '97

50303089000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

SPROCKET COVER

54607061000

$13.94

53

BUSHING 6,5X8X11

54613038150

$4.11

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

56

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

57

Cable tie 200/4.6mm black

44011076200

$1.49

58

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08
