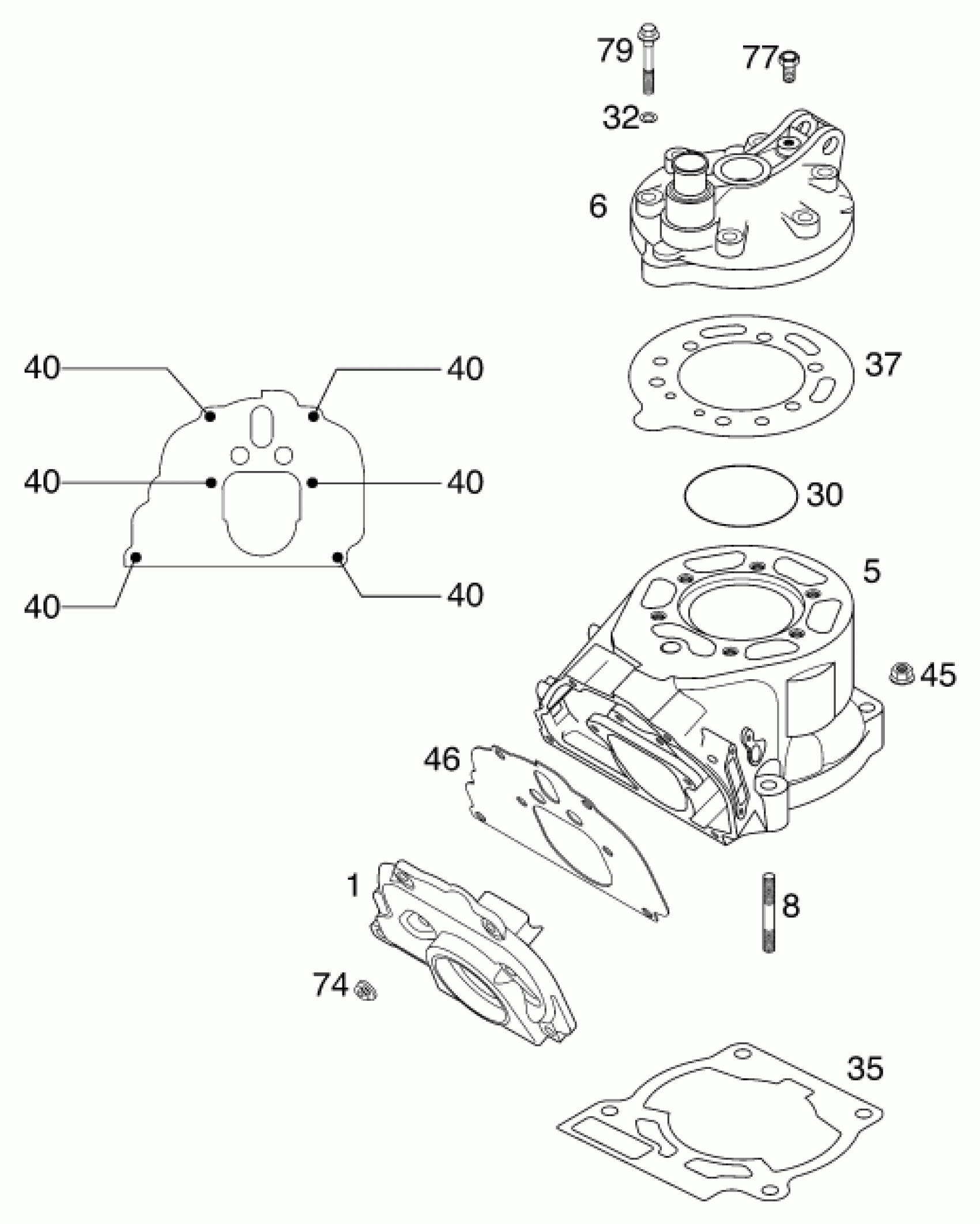

KTM 200 MXC 2001 CYLINDER Diagram

#

Description
Price

1

INTERMEDIATE FLANGE 200 2000

52337001200

$89.19

5

CYLINDER 64MM 200 20

52330005200

$1,099.83

6

CYLINDER HEAD 200'98

52330006000

$103.49

8

STUD DIN0835-M 8X35 10.9

0835080355

$3.08

30

O-RING 72,00X2,00 VITON

0770720021

$5.70

32

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

$1.49

35

CYL.BASE GASKET 0,07MM PAPER

50330035007

Unavailable

35

CYLINDER BASE GASKET 0,15MM

50330035015

Unavailable

35

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

35

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

35

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

35

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

35

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

37

CYL.HEAD GASKET 1,1MM 200'98

52330037000

$18.41

40

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

45

HH COLLAR NUT M 8 WS=12

50330045000

$2.05

46

INTERMED.GASKET 1,1MM 200 2000

52337046100

$9.53

74

RETAINING PLATE

51005074000

$3.08

77

HH SCREW DIN0933-M 6X10

0933060103

$1.49

79

CYL. HEAD BOLT M 7X40 WS=10

50030079000

$9.90
