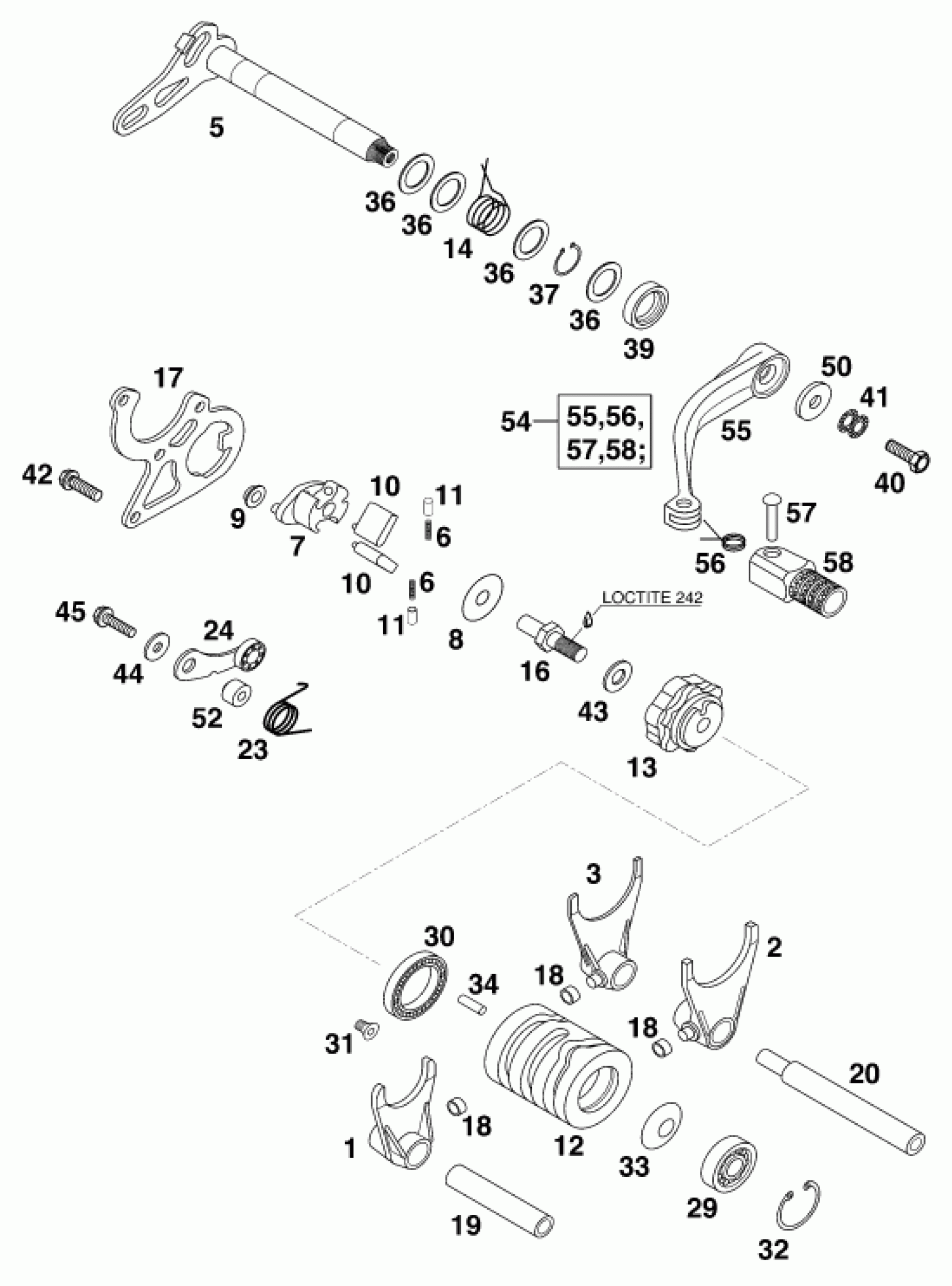

KTM 200 MXC 2000 SHIFTING MECHANISM Diagram

SHIFTING FORK 5TH/6TH GEAR '98

50334001000

$38.71

SHIFTING FORK 2ND/4TH GEAR '98

50334002000

$38.25

SHIFTING FORK 1ST/3RD GEAR '98

50334003000

$34.35

SHIFTING SHAFT 125/200'98

50334005000

$67.53

Spring for ratchet 0.5X11.5

50334007052

$3.08

RATCHET SUPPORT 125/200'98

50334007000

$79.47

STOP DISK 8,2X26X0,7

50334007054

$4.11

BUSHING 6X8X12X4,5

50334007053

$6.72

SHIFTING RATCHET 125/200'98

50334007050

$10.00

PRESSURE END PAD 4,1X5,6X8,4

50334007051

$14.58

SHIFTING DRUM ALU 125/200'00

50334012100

$75.36

LOCATING DRUM 125/200'98

50334013000

$84.98

RETURN SPRING 3MM

50334014000

$6.35

SPECIAL SCREW M8X21,5 WS=12

50334016000

$10.65

SHIFTING GATE 3MM 125/200'98

50334017000

$23.46

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

SHIFTING ROD DRIVE 11,8X67,5

50334019000

$9.62

SHIFT. ROD DRIVE END 11,8X94,5

50334020000

$26.45

LOCATING LEVER SPRING 2,5MM'98

50334023000

$4.11

LOCATING LEVER CPL.125/200'98

50334024044

$14.58

BALL BEARING 6000 RS1 C3

0625060006

$20.94

BALL BEARING 61805 C3

0625618050

$43.94

Flat head screw DIN7991 M5X10

0991050102

$2.05

LOCK RING DIN0472-26X1,2

0472260120

$2.05

SPRING WASHER 12,2X25X0,9

0093251209

$3.08

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

STOP DISK 14,3X20X1

49033031000

Unavailable

retaining ring DIN 471 14x1

0471140100

$1.49

radial shaft seal 14x24x6 B

0760142460

$9.25

HH SCREW DIN0933-M 6X16 10.9

0933060165

$2.05

Pair of washers M6 NORDLOCK

50233041000

$4.11

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

washer DIN 125 A -8.4

0125080003

$1.49

WASHER DIN0125-A 5,3

0125050003

$1.49

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

STEEL WASHER 6,4X17X3

50232050001

$5.23

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

SHIFT LEVER CPL. 2-STROKE

54634031044

$91.25

SHIFTING LEVER SPRING 250

54634032100

$3.08

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59
