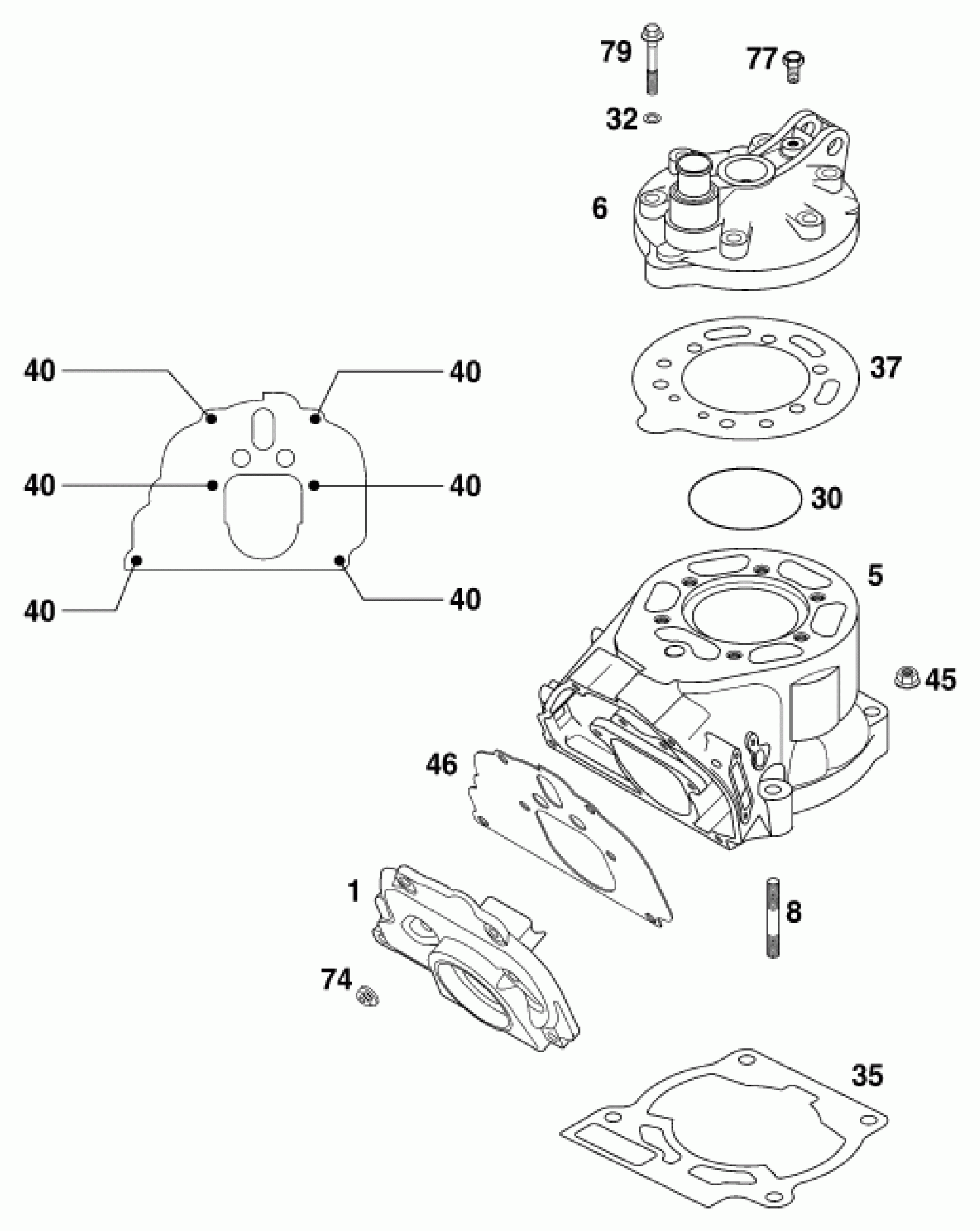

KTM 200 MXC 2000 CYLINDER Diagram
#
Description
Price
1
INTERMEDIATE FLANGE 125 2000
50337001100
$84.57
1
INTERMEDI. FLANGE D=50 SGP '99
52337001100
Unavailable
1
INTERMEDIATE FLANGE 200 2000
52337001200
$89.19
5
CYLINDER 54,25MM 125'2000
50330005100
Unavailable
5
CYLINDER 64 MM 200'
52330005000
Unavailable
5
CYLINDER 64MM 200'20
52330005100
Unavailable
6
% CYLINDER HEAD 125'98
50330006000
$118.48
6
CYLINDER HEAD 200'98
52330006000
$103.49
8
STUD DIN0835-M 8X27
0835080273
$3.08
8
STUD DIN0835-M 8X35 10.9
0835080355
$3.08
30
O-RING 62,00X2,00 VITON
0770062020
$9.34
30
O-RING 72,00X2,00 VITON
0770720021
$5.70
32
CU-SEAL RING 7,3 X 12 X 0,5
50230032010
$1.49
35
CYL.BASE GASKET 0,07MM PAPER
50330035007
Unavailable
35
CYLINDER BASE GASKET 0,15MM
50330035015
Unavailable
35
CYLINDER BASE GASKET 0,20MM
50330035020
Unavailable
35
CYLINDER BASE GASKET 0,25MM
50330035025
Unavailable
35
CYLINDER BASE GASKET 0,40MM
50330035040
Unavailable
35
CYLINDER BASE GASKET 0,50MM
50330035050
Unavailable
35
CYLINDER BASE GASKET 0,75MM
50330035075
Unavailable
37
CYL.HEAD GASKET 1,1MM 125'98
50330037000
$15.15
37
CYL.HEAD GASKET 1,1MM 200'98
52330037000
$18.41
40
HH COLLAR SCREW M 5X20 WS=8
0015050203
$2.05
45
HH COLLAR NUT M 8 WS=12
50330045000
$2.05
46
INTERMED.GASKET 1,1MM 125 2000
50337046100
$13.60
46
INTERMED.GASKET 1,15MM 200'98
52337046000
$9.72
46
INTERMED.GASKET 1,1MM 200 2000
52337046100
$9.53
74
RETAINING PLATE
51005074000
$3.08
77
HH SCREW DIN0933-M 6X10
0933060103
$1.49
79
CYL. HEAD BOLT M 7X40 WS=10
50030079000
$9.90
