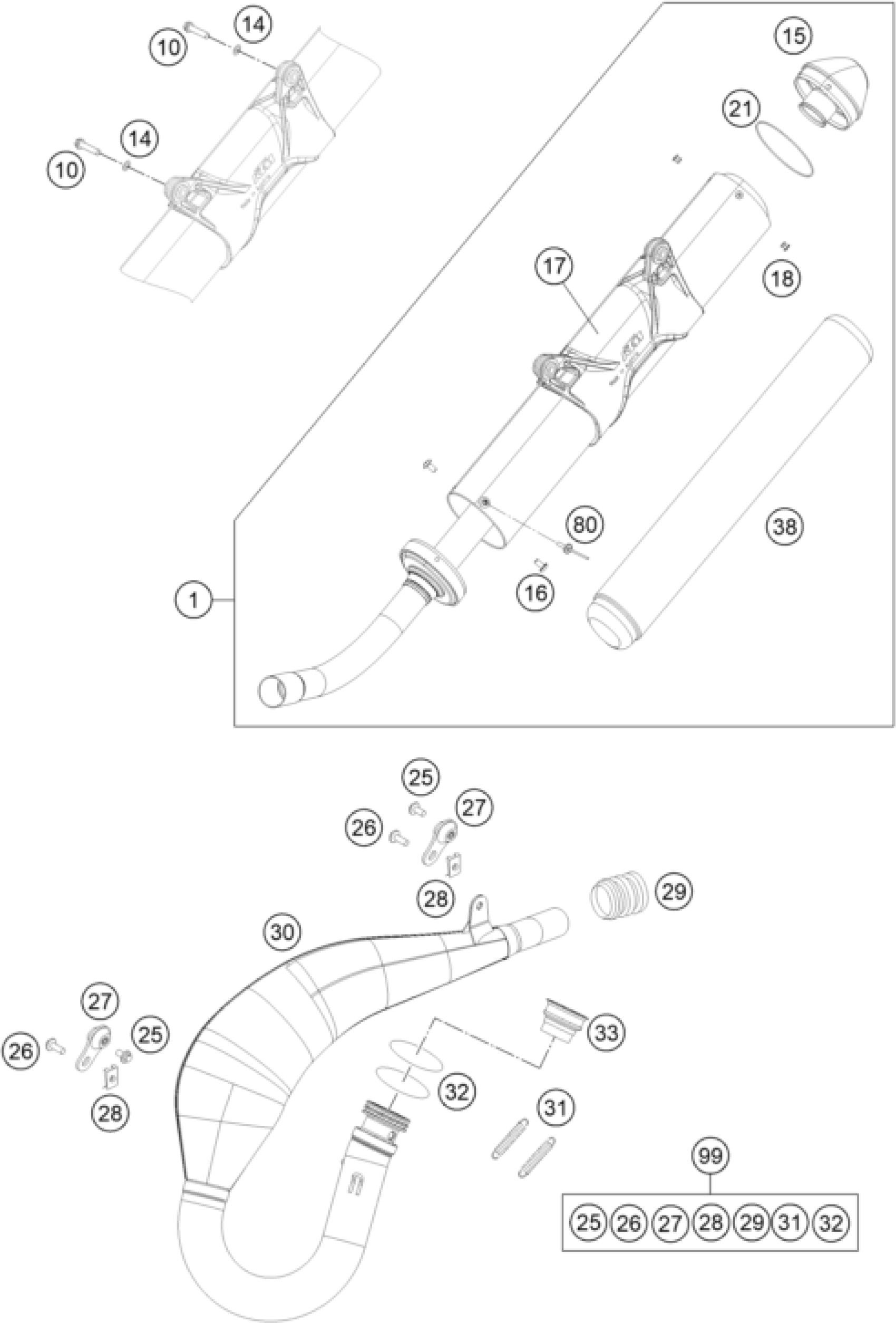

KTM 200 EXC 2016 EXHAUST SYSTEM Diagram

#

Description
Price

1

MAIN SILENCER 250-300 EXC

54805083200

$404.10

10

HH collar screw M6x30 TX30

0025060306

$3.08

14

spring washer DIN 137 B - 6

0137060003

$2.05

15

ENDCAP CPL.

54805083260

$84.24

16

SCREW TORX M5X10 05

58605083010

$2.05

17

SILENCER HOUS. CPL. W. HANGING

54805183085

$105.55

18

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

28

clip nut M6

54603048100

$4.11

29

SILICON SLEEVE D=29/31MM

50205057000

$32.90

30

EXHAUST MANIFOLD

52305109000

Unavailable

30

EXHAUST MANIFOLD

52305008600

$461.32

31

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

32

O-RING 44,00X3,00 VITON

0770440030

$4.11

38

ROCKWOOL 315G

54805078315

$59.46

80

DUMMY RIVET 4,0X12 ALU

0011401200

Unavailable

21

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

25

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

26

HH collar screw M6x15 TX30

0024060156

$3.08

27

Silent block for exhaust pipe

50305012000

$19.91

99

EXHAUST HARDWARE KIT 11-14

00050000811

Unavailable

33

THROTTLE D=42.5

52305009280

Unavailable
