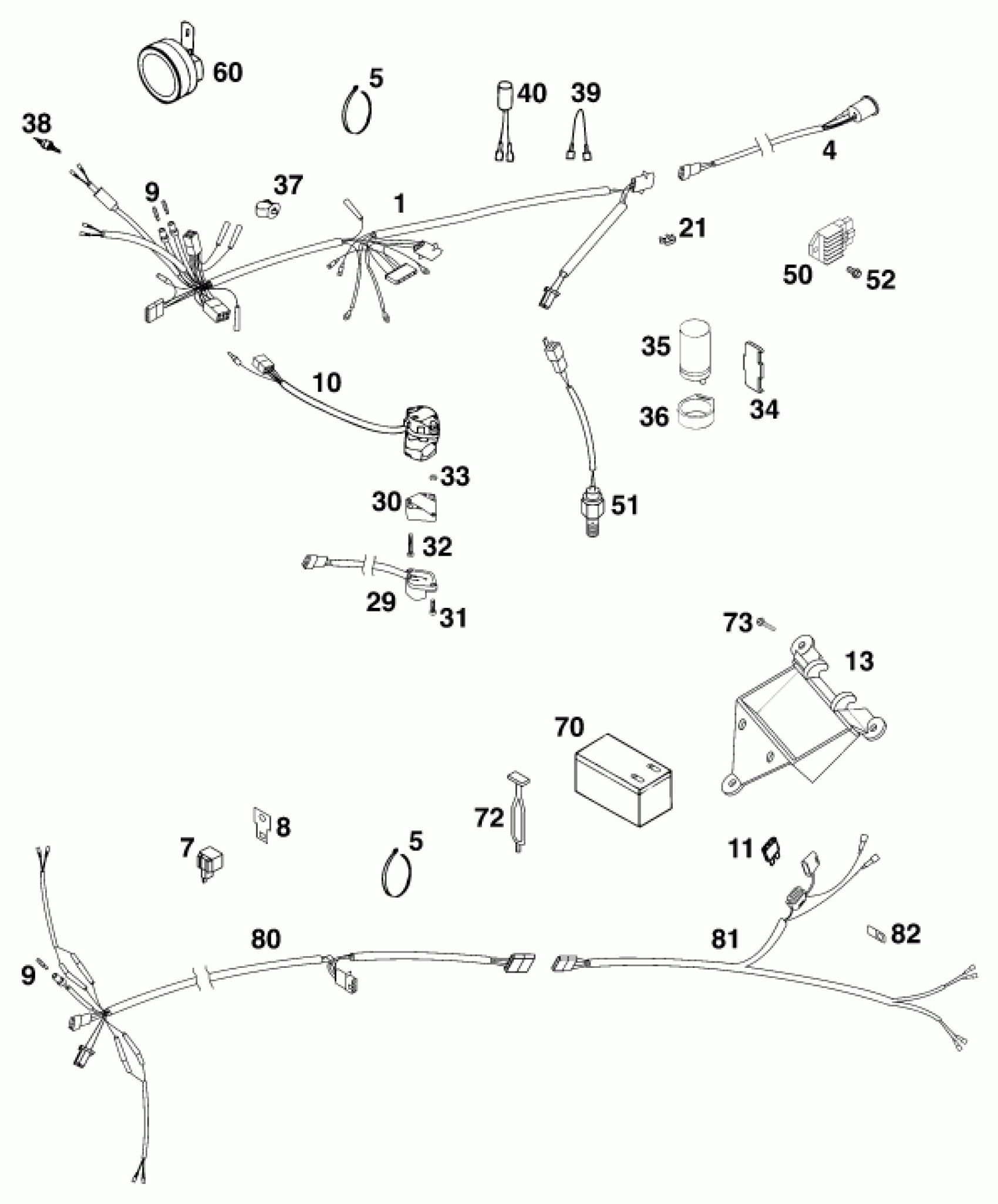

KTM 200 EGS 8kW '99 <1999> WIRING HARNESS Diagram

#

Description
Price

0

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

0

WIRING HOLDER 16MM

57013072100

Unavailable

1

WIRING HARNESS 125-200 EGS '99

50311075400

Unavailable

4

WIRING HARNESS REAR 125-380'98

50311076000

$27.39

5

Cable tie 200/4.6mm black

44011076200

Unavailable

7

FLASHER UNIT 97

44611207200

$49.83

8

BRACKET FOR FLASHER RELAY

58211031100

$5.70

9

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

10

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

10

H.LIGHT SWITCH CEV EGS AUS.'98

50311070100

$74.14

11

FUSE 10 A

58011109010

Unavailable

13

BATTERY CARRIER 125-380 EGS'98

50306013000

Unavailable

21

WIRING HOLDER 12MM

57013072000

Unavailable

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

31

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

32

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

33

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

34

BRACKET FOR CONDENSATOR '98

50311037000

Unavailable

35

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

36

CAPACITOR BRACKET

54511048000

$4.33

37

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

38

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

39

DIODE BRIDGE

50211475251

Unavailable

40

DIODE

26011130000

Unavailable

50

VOLTAGE REGULA. 12V 125-200'98

50311034000

$102.28

51

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

52

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

60

54511060000

Unavailable

70

BATTERY 12V 1,2AH

54511008000

Unavailable

72

RUBBER FOR SIDE STAND '98

50303025000

$5.10

73

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

80

FLAS.WIRINGHARN. FRONT 125-380

50311080100

$34.82

81

FLAS.WIRINGHARN. REAR 125-380

50311081000

Unavailable

82

RETAINING PLATE

50031003000

$2.61
