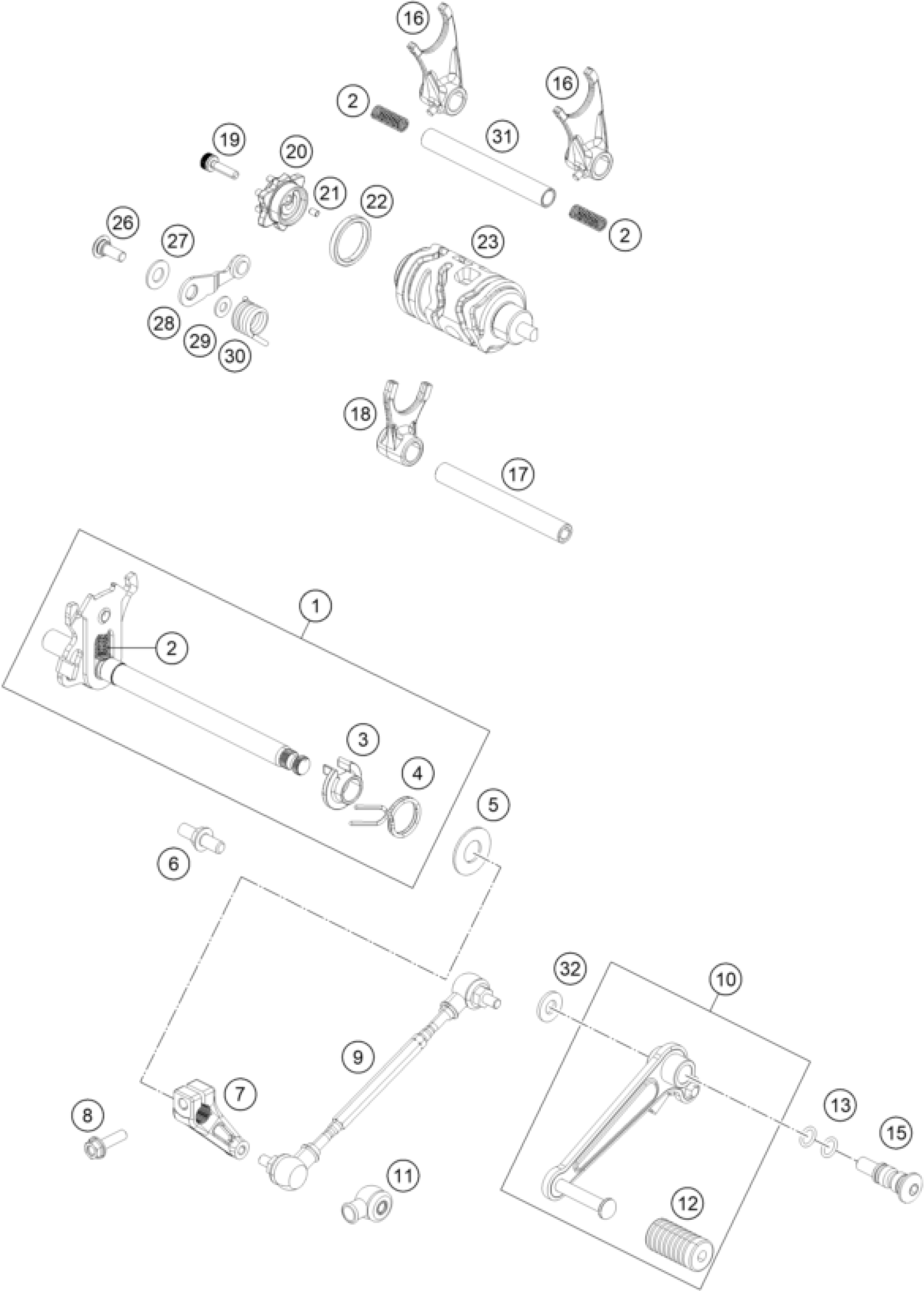

KTM 200 DUKE white, w/o ABS - CKD 2023 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT SHAFT CPL.

90134005033

$27.95

2

TENSION SPRING

90134009000

$1.49

3

SPRING BUSHING

90134022000

$4.11

4

RETURN SPRING

90134014000

$4.11

5

STOP DISK 14X30X1,5

90134050000

$2.05

6

SPRING GUIDE

90134016000

$2.05

7

Linkage gear shift lever

93034031010

$13.92

8

Bolt-Flange-Kad ST-D DIA-06 L-

J025060221

$1.49

9

Shift rod complete

93034036033

$16.63

10

LEVER ASSEMBLY CHANGE

93134031033

Unavailable

12

GEAR SHIFT LEVER RUBBER

90134035000

$2.05

15

SCREW GEAR CHANGE LEVER

93134034000

Unavailable

16

Shift fork

93034001000

$15.70

17

GEAR SHIFT RAIL

90134019000

$5.23

18

SHIFT FORK MAIN

90134001000

$13.55

19

Bolt socket head M6X1X20 L-pre

90134098000

$1.49

20

SHIFT DRUM LOCATING

90134015000

$16.73

21

Parallel pin

90134013000

$1.49

22

SPACER

90134012002

$3.08

23

Shift drum

93534012000

$24.11

26

SCREW LOCKING LEVER

90134025000

$2.05

27

WASHER LOCKING LEVER

90134030000

$3.08

28

LOCKING LEVER CPL.

90134024033

$4.11

29

Washer, 6x14x1.2

J125061416

$1.49

30

ARRESTING LEVER SPRING

90134023000

$2.05

31

GEAR SHIFT RAIL COUNTER

90134190000

$5.23

32

Washer 8.4x18x2

J126080006

Unavailable

11

cover dust tie rod

93003044000

$1.49

13

RING - O

J770000918000

Unavailable
