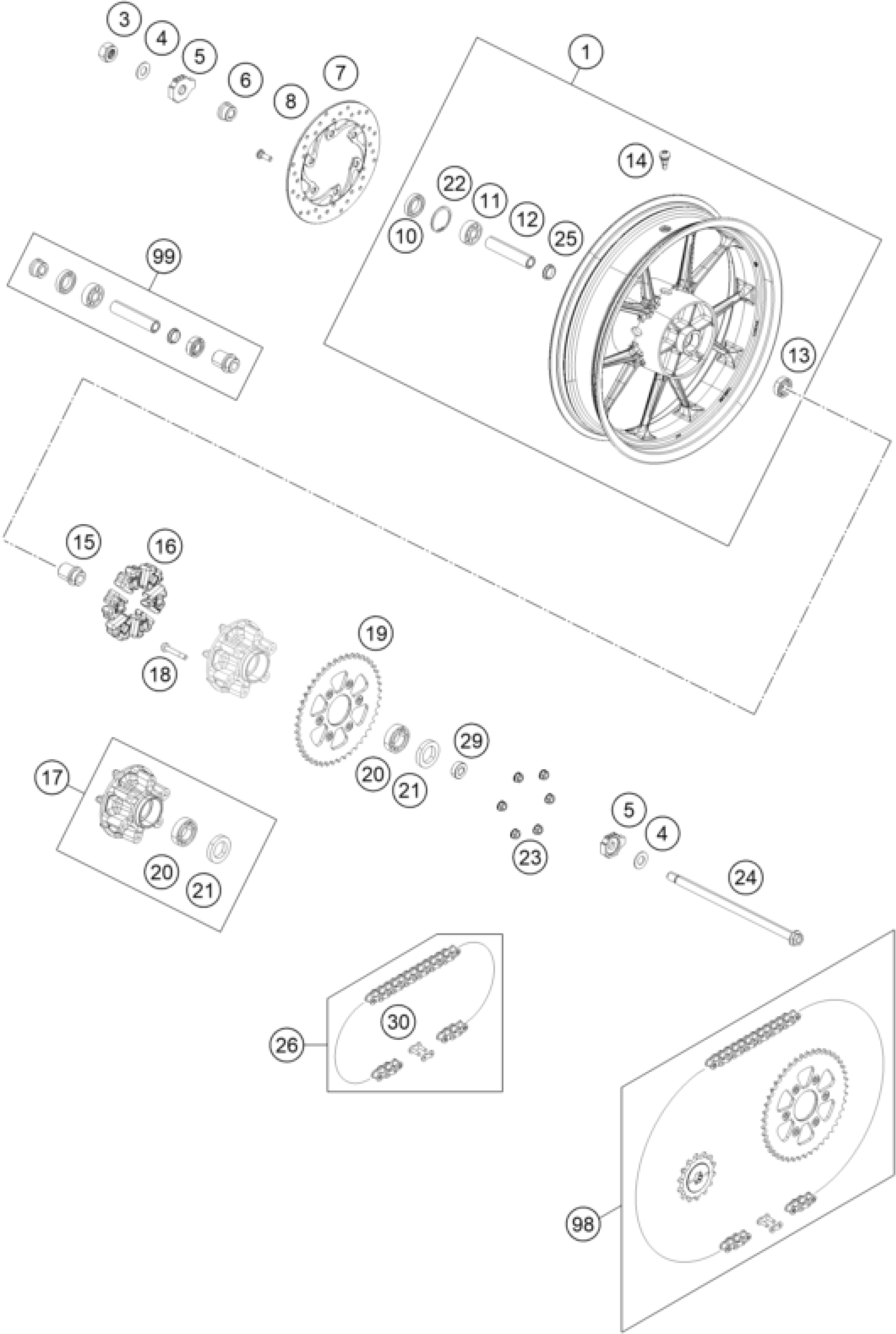

KTM 200 DUKE white, w/o ABS - CKD 2023 REAR WHEEL Diagram

#

Description

Price

1

Rear wheel cpl. orange

93010001044EB

$416.81

3

wheel spindle nut, rear

90210086000

$3.39

4

washer 15.2x30x2

90610087000

$1.69

5

chain tension adjuster, right

90110084000

$7.10

6

SPACER BUSHING REAR WHEEL R/S

90110013000

$6.86

7

rear brake disk D=230mm

90110060000

$80.79

8

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.39

10

SHAFT SEAL RING 26X42X8

J760264208

$3.39

11

Grooved ball bearing 6302

J625063021

$12.95

12

BEARING SPACER TUBE REAR

90110011000

$12.61

13

BALL BEARING 6202

J625062023

$11.97

14

VALVE CPL.

90109076000

$7.10

15

SPACER BUSHING KRT INSIDE

90610054000

$10.09

16

DAMPER RUBBER REAR WHEEL

90910059000

$4.24

17

SPROCKET SUPPORT

90210050000

$57.96

18

SPECIAL SCREW M8X48

90810052000

$2.54

19

SPROCKET 42T

90910051142

$54.32

20

BALL BEARING 6205

J625062050

$15.60

21

SHAFT SEAL RING 29X52X7

J760295207

$5.23

22

CIRCLIP

J472042170

$1.69

23

FLANGED NUT M8X1,25

90510052000

$1.69

24

Axle rear KT03

90210085000

$16.07

25

Fixation bearing spacer tube

90109011001

$1.69

26

chain DID 118 roll

76910065118

$128.83

29

SPACER CHAIN WHEEL SUPPORT

90110053000

$5.23

30

Rivet link chain DID 520 VP2-T

76910066000

Unavailable

98

DRIVETRAIN KIT DUKE 2015

00050002058

Unavailable

99

REAR WHEEL REP. KIT 390 DUKE

90110015100

Unavailable
