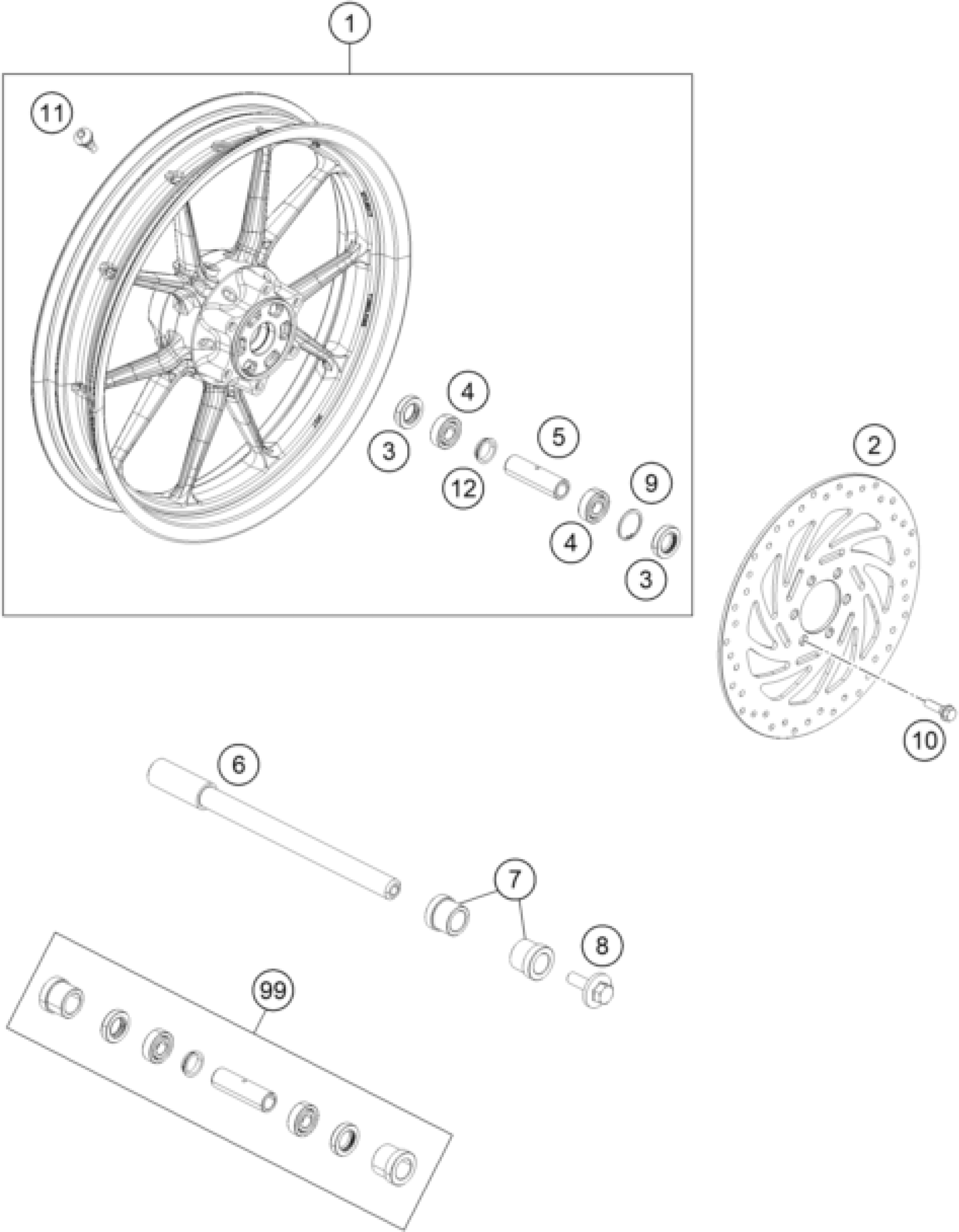

KTM 200 DUKE white, w/o ABS - CKD 2023 FRONT WHEEL Diagram

#

Description

Price

1

Front wheel cpl. orange

93009001044EB

$354.73

2

Brake disc

93209060000

$172.41

3

SHAFT SEAL RING 22X35X8

J760223508

$3.08

4

BALL BEARING 6202

J625062023

$11.40

5

Spacer front wheel

90109011000

$14.95

6

Front axle

93009081000

$20.19

7

BEARING BUSHING

90209083000

$5.23

8

flanged bolt M8

90109082000

$4.11

9

Circlip 35X1,5

J472035150

$1.49

10

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.08

11

VALVE CPL.

90109076000

$7.10

12

Fixation bearing spacer tube

90109011001

$1.49

99

FRONT WHEEL REP. KIT

90109015100

$45.53
