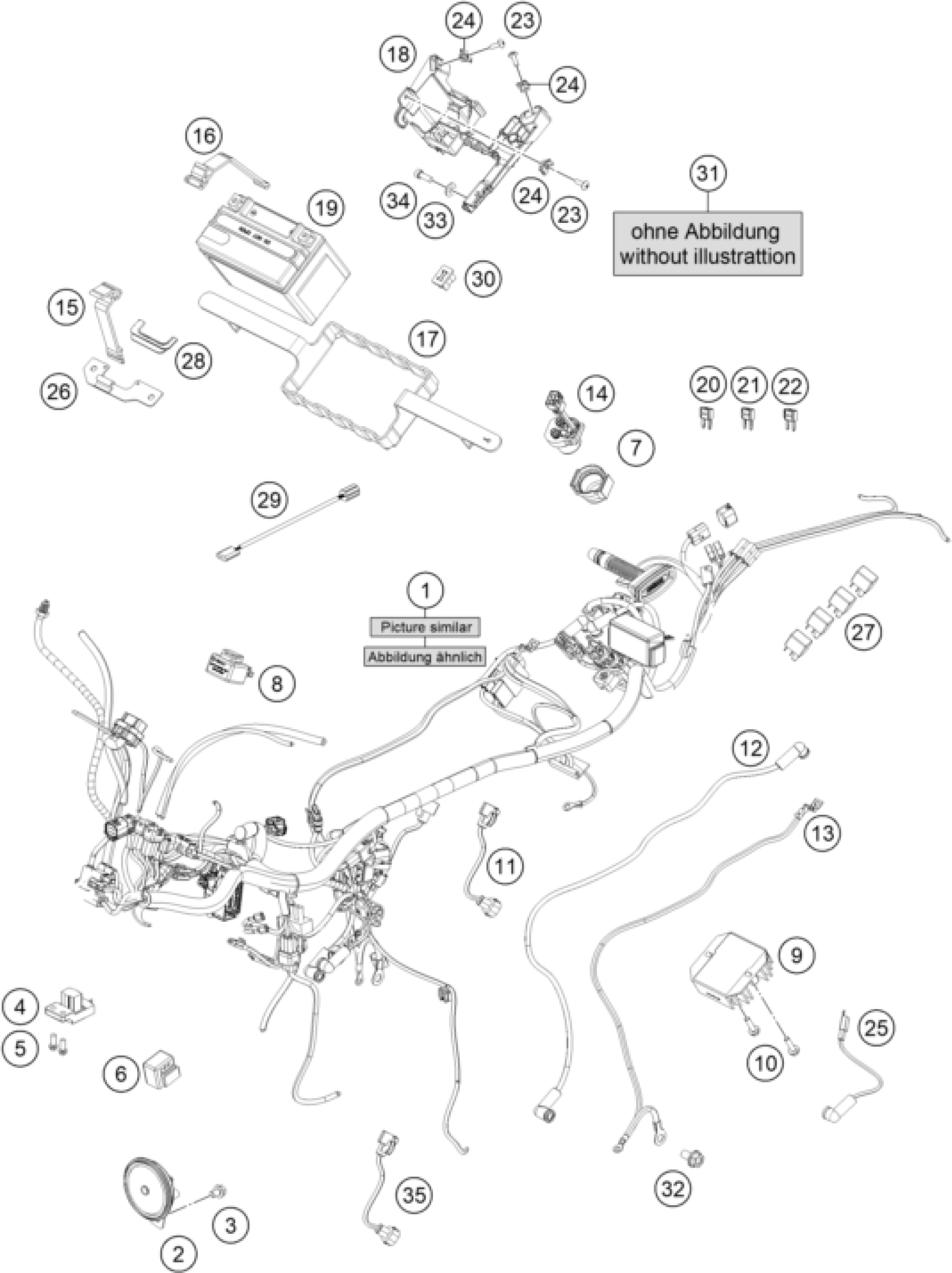

KTM 200 Duke, orange - B.D. 2020 WIRING HARNESS Diagram

#

Description

Price

1

HARNESS WIRING

94111075000

$913.95

2

Horn

93011060100

$20.00

3

HH COLLAR SCREW M8X12 SW12

J025080123

$1.69

4

rollover sensor

93541088000

$24.02

5

HH COLLAR SCREW M6X16 SW8

J025060169

$1.69

6

LOCATOR SWITCH

94111071000

Unavailable

7

Rubber damper starter relay

93311058000

$1.69

8

indicator relay

90511030000

$29.44

9

Voltage regulator

28111034000

$176.24

10

BOLT FLANGED-M6X1XL26XCL 10.9X

J900000602600

Unavailable

11

Cable

93041080050

$39.82

12

Starter cable 6MM

93011059000

$15.42

13

Ground wire

93011197000

$16.73

14

Starter relais

93011058000

$28.86

15

Band batterie

93011055060

$2.54

16

Battery rubber holder

93011055000

$4.24

17

BOX BATTERY

93011054000

Unavailable

18

Cross brace cover

93008018060

$12.52

19

BATTERY 12V/8AH

90611053000

$144.70

20

FUSE 10A 07

75011088010

$4.24

21

FUSE 15A 07

75011088015

$4.24

22

FUSE 30A

75011088030

$3.39

23

FLAT HEAD SCREW M5X12 PH

J005050123

$1.69

24

CLIP NUT M5

90108050001

$2.54

25

Pigteil oil pressure switch

93038091000

$2.54

26

Bracket battery band

93011056100

$2.54

27

relay (interlock)

90611057000

$25.71

28

protector

93011026000

$1.69

29

PIGTAIL PH-3 FUEL PUMP

93511084000

$11.96

30

Rubber grommet

93008078000

$1.69

31

Cable earth ABS

93042033000

$2.54

32

Hex collar screw M6X12

J025060122

$1.69

33

WASHER 5,2X14X2MM

90107088050

$1.69

34

bolt socket-M5X0.8XL16XCL8.8XB

J912050166

$7.38

35

Flasher wiring harness USA

93811580000

$2.54
