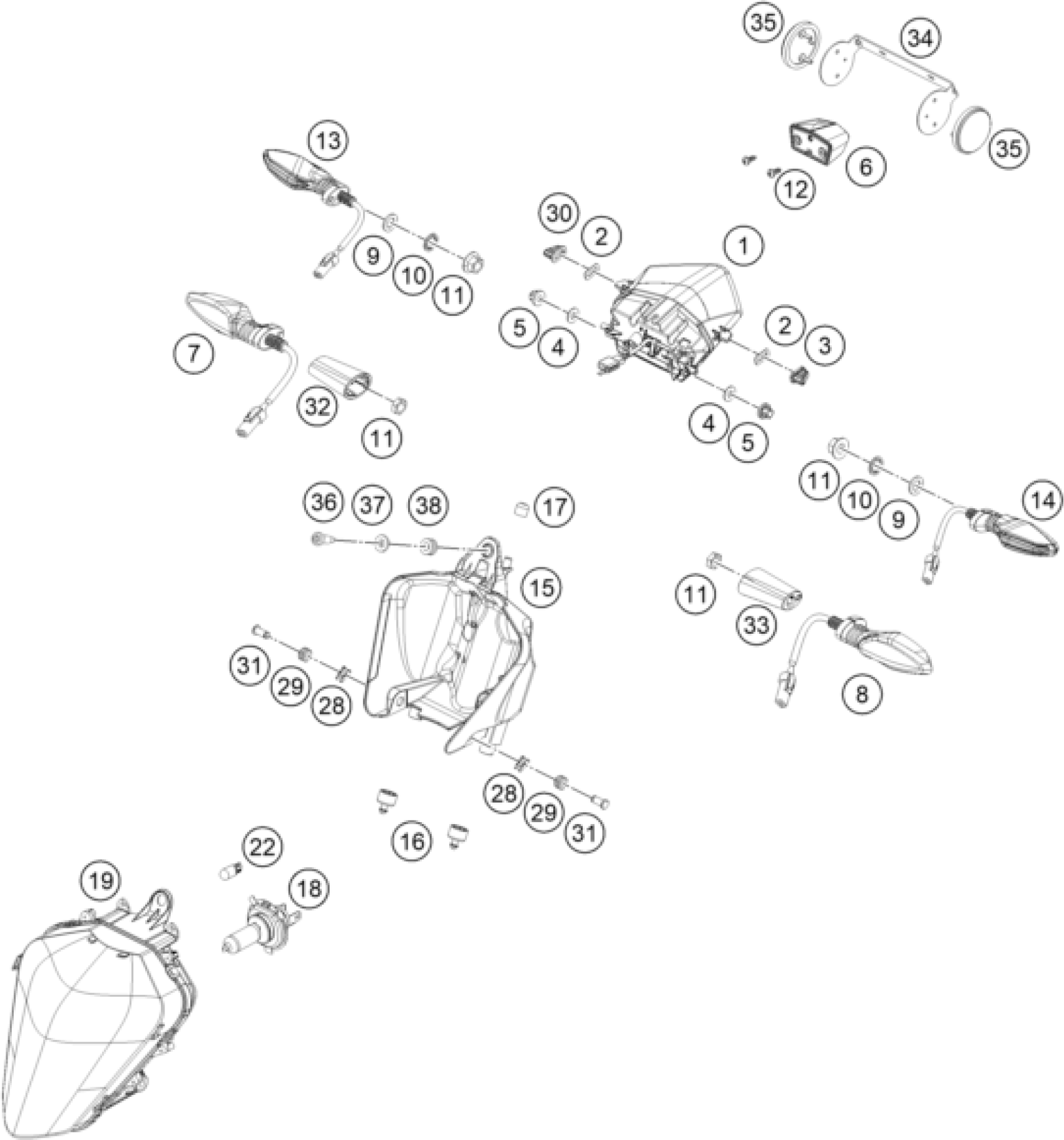

KTM 200 Duke, orange - B.D. 2020 LIGHTING SYSTEM Diagram

#

Description

Price

1

lamp tail MY17

93014040100

Unavailable

2

Washer

93014040040

Unavailable

3

Rubber grommet tail light left

93014040020

Unavailable

4

Washer

93014040030

Unavailable

5

Rubber bushing

93014040010

Unavailable

6

LICENSE PLATE ILLUMINATION

90114047000

Unavailable

7

Right front flasher US

93014526000

Unavailable

8

Left front flasher US

93014525000

Unavailable

9

WASHER PLAIN 10,5

J125100003

Unavailable

10

TOOTHED WASHER M10

J797100003

Unavailable

11

Nut hex thin-M10x1.25

J934100006

Unavailable

12

SHEET MET.SCR. DIN 7981 4,2X13

J981420133

Unavailable

13

INDICATOR CPL. RR R/S USA

90514526044

Unavailable

14

INDICATOR CPL. RR L/S USA

90514525044

Unavailable

15

Light bulb headlight bracket

93114010000

Unavailable

16

Rubber bushing

93014015000

Unavailable

17

Rubber bushing

93014014000

Unavailable

18

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

19

Bulb head lamp

93114001100

Unavailable

30

Rubber grommet tail light righ

93014049000

Unavailable

31

SAFETY BOLT 8X1,5

J070080150

Unavailable

32

Right flasher adapter US

93014526050

Unavailable

33

Left flasher adapter US

93014525050

Unavailable

34

BRACKET SIDE REFLECTOR REAR

90212581000

Unavailable

35

SIDE REFLECTOR REAR

90212582000

Unavailable

36

AH SCREW M6X1X20

90508006003

Unavailable

37

Collar head lamp holder MTG

93014018100

Unavailable

38

Rubber bushing

93014017000

Unavailable

29

GROMMET MASK CARR. PIVOT BKT

90114064011

Unavailable

28

SEC. CLIP MASK CARR. PIVOT BKT

90114064012

Unavailable

22

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable
