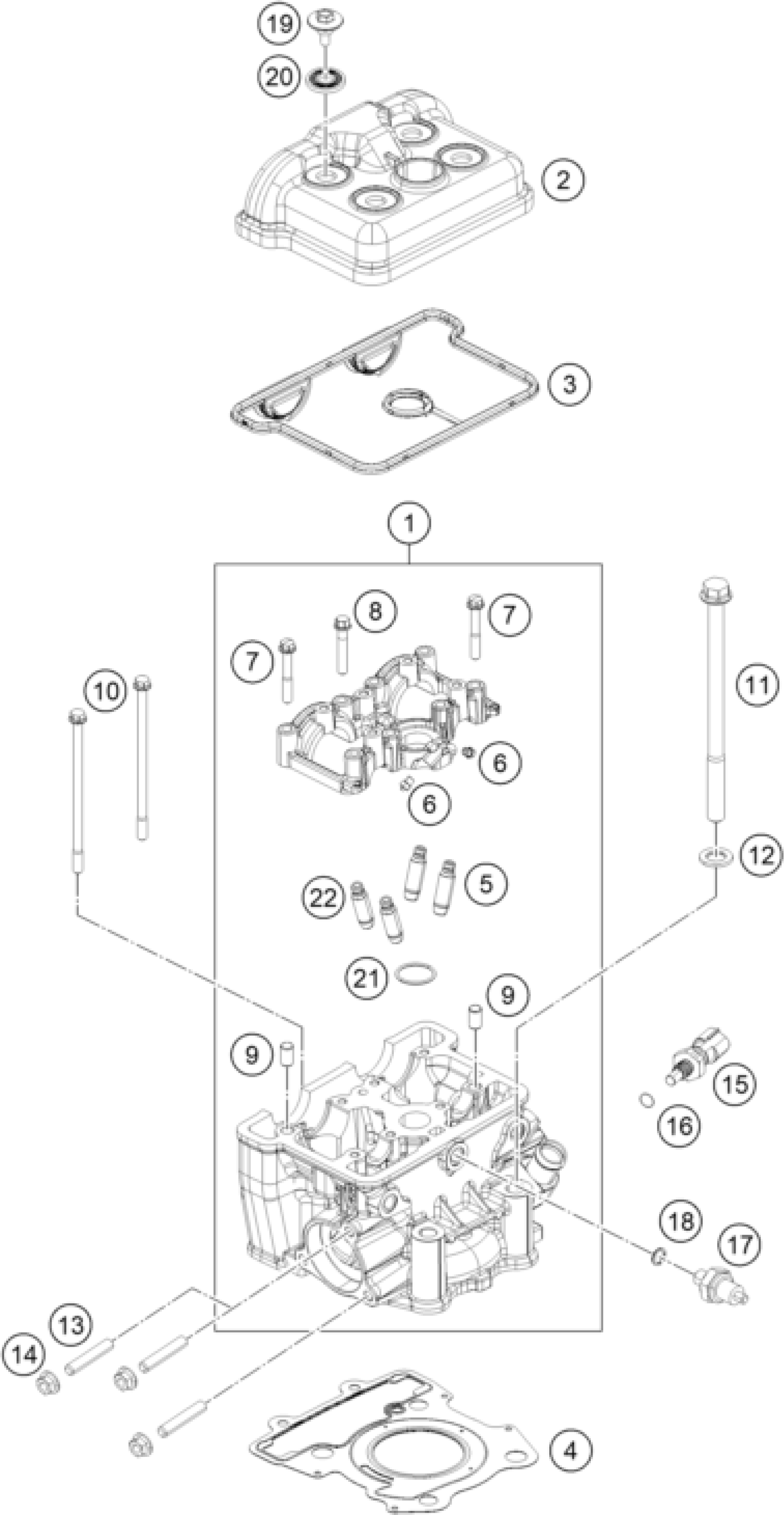

KTM 200 Duke, orange - B.D. 2020 CYLINDER HEAD Diagram

#

Description

Price

1

head cylinder-holder camshaft

93636020033

$422.05

2

Valve mechanism cover

93336052001

$20.19

3

Valve cover gasket

93536053000

$19.73

4

Gasket head cylinder

93630036000

$24.63

5

VALVE GUIDE

90136025100

Unavailable

6

OIL JET

90130064000

$6.07

7

HH-COLLAR SCREW M6X40 WS10

J025060402

Unavailable

8

HH-COLLAR SCREW M6X35 WS8

J025060356

Unavailable

9

PIN DOWEL 8X6,4X14MM

90130024000

$1.69

10

COLLAR SCREW M6

90136020005

$2.54

11

HH COLLAR SCREW 10X147,5

90136020003

$5.23

12

WASHER 11,2X20X2

90130080000

$1.69

13

STUD M8

90136020001

$2.54

14

FLANGED NUT M8 H7,5 WS12

90136038000

$1.69

15

TEMPERATURE SENSOR

90135047000

$23.45

16

O-ring 7.65x1.78

J770000817800

Unavailable

17

OIL PRESSURE SENSOR

90138091000

$16.78

18

O-RING

90138091001

$2.54

19

VALVE COVER SCREW

90136052020

$3.39

20

DECOUPLING ELEMENT

90136052010

$3.39

21

O-RING 23,7X1,9

J770023019

$1.69

22

GUIDE VALVE EXHAUST

93636026000

Unavailable
