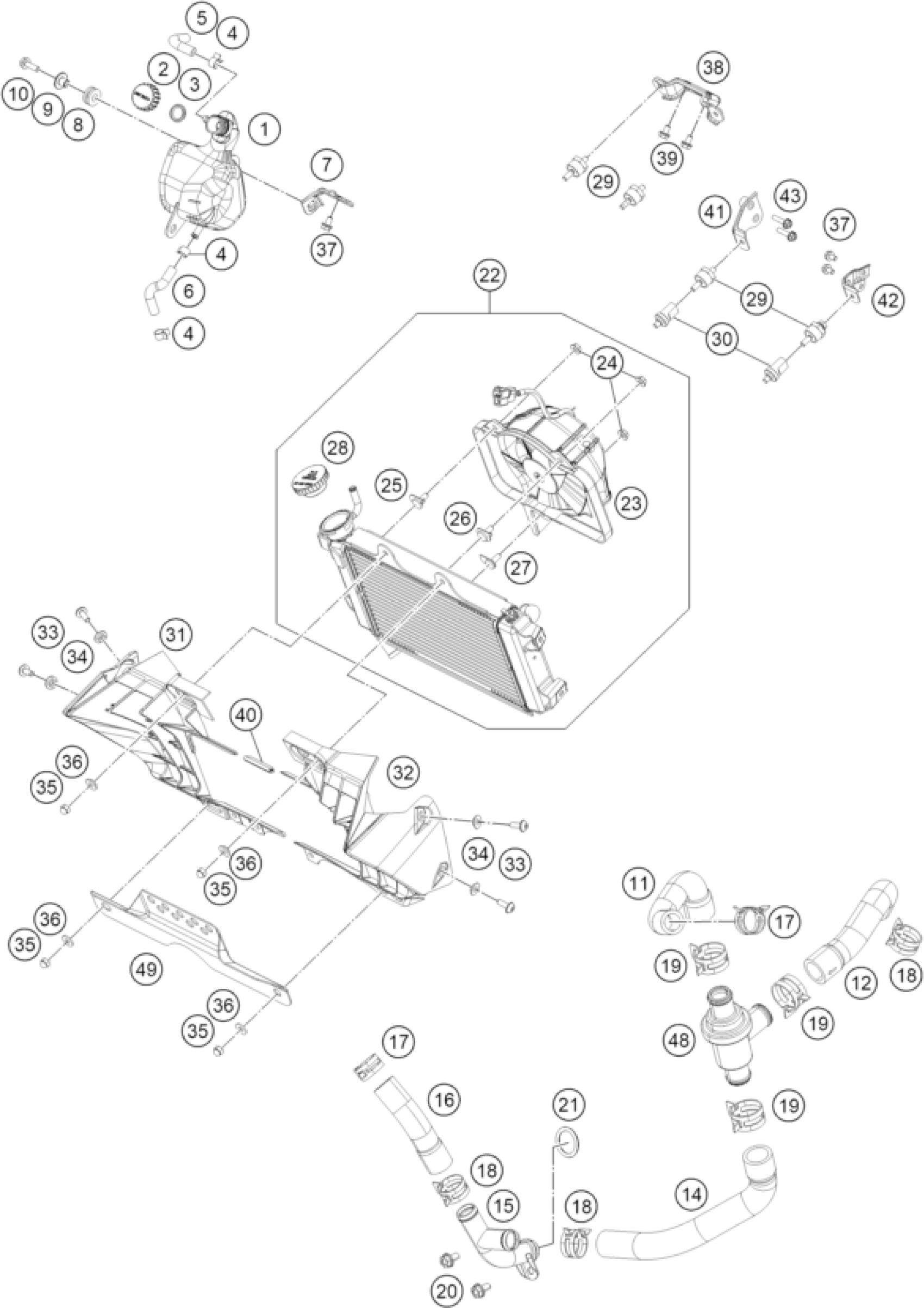

KTM 200 Duke, orange - B.D. 2020 COOLING SYSTEM Diagram

#

Description

Price

1

water compensation tank

93035065000

$14.86

2

PLUG F. EXPANSION TANK

90135066000

$3.08

3

COMPENSATING TANK O-RING

90102055000

$1.49

4

CLAMP 10MM

90107018011

$2.05

5

HOSE 6X10,5X80 MM

90135067000

$1.49

6

Pre-formed hose

93035067000

$1.49

7

Retaining bracket

93035065050

$3.08

8

Rubber bushing

93008028050

$1.49

9

distance sleeve

93035065030

$1.49

10

HH COLLAR SCREW M6X20 SW10

J025060203

$1.49

11

Radiator hose

93035026100

$6.82

12

Radiator hose

93035028000

$8.78

14

Pipe thermostat-joint t pcs.

94035026000

$9.90

15

COOLANT PIPE T

90635071033

$31.78

16

RADIATORHOSE RADI.-COOLL.'' T

90135024030

$5.23

17

HOSE CLAMP D23

90135020000

$3.08

18

hose clamp D26

90135020001

$3.08

19

HOSE CLAMP D28

90135020003

$3.08

20

BOLT FLANGED M6X14

J028060143

$1.49

21

O-RING 18,5X3

J770018530

$2.05

22

Radiator complete

93035010133

$372.22

23

Fan cpl.

93235041033

$168.85

24

FLANGED NUT

90835041004

$2.05

25

BRACKET FAN MOUNTING 3

90835041003

$2.05

26

BRACKET FAN MOUNTING 2

90835041002

$2.05

27

BRACKET FAN MOUNTING 1

90835041001

$2.05

28

RADIATOR CAP

90135016100

$17.20

29

SILENTBLOCK M6

93035005000

$4.11

30

Spacer for radiator cover

93035033020

$3.08

31

Radiator fairing right

93035035100

$11.02

32

Radiator fairing left

93035034100

$10.84

33

SPECIAL SCREW M6X1X16

90808043000

$1.49

34

Washer

93035033010

$1.49

35

Cap nut M6

93035003000

$1.49

36

Washer M6

J125060007

$1.49

37

HH COLLAR SCREW M6X10 SW10

J025060103

$1.49

38

Support

93035004000

$3.08

39

Hexagon screw M6X10

J025060101

$1.49

40

Flange

93035009050

$1.49

41

Retaining bracket

93035002000

$3.08

42

RADIATORSUPPORT L/S BELOW

90103005001

$2.05

43

bolt flanged M6X25

J025060253

$1.49

48

THERMOSTAT

90135017000

$33.56

23

Radiator fan assembly

93535041044

$174.09

49

Connector radiator shroud

94135033010

Unavailable
