THROTTLE BODY

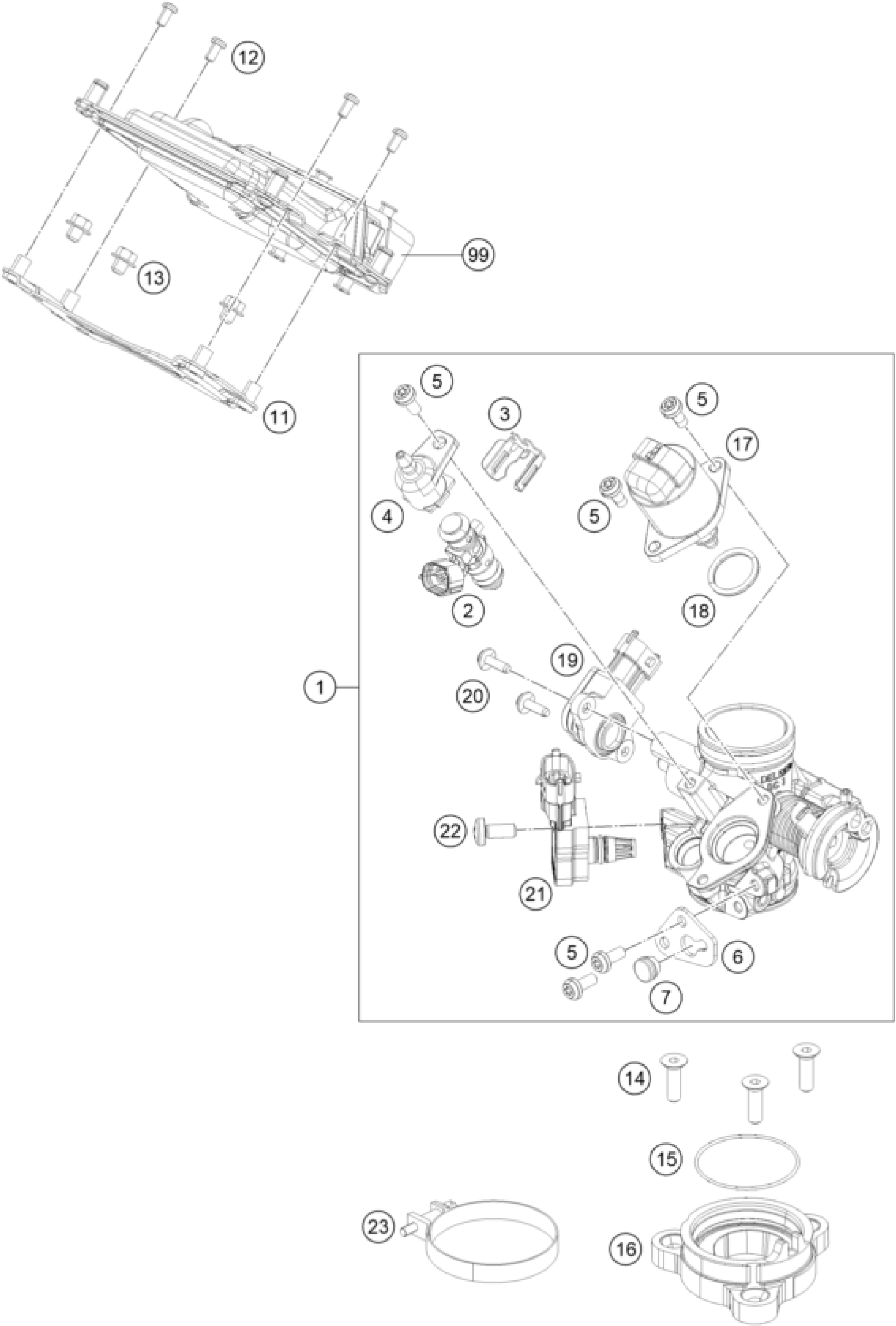

KTM 200 DUKE ORANGE ABS 2014 THROTTLE BODY Diagram
#
Description
Price
1
THROTTLE BODY CPL.
90641001044
Unavailable
2
FUEL INJECTOR
90641023000
Unavailable
3
INJECTOR CLIP
90141001001
$3.08
4
CONNECTOR FUEL RAIL
90141023004
$3.08
5
SPECIAL SCREW M5X12
90141023005
$1.49
6
CABLE SUPPORT
90141023002
$3.08
99
ECU RAW PART
90141031100
$522.94
11
BRACKET TIMING CHARGER
90141029000
$6.91
12
FLAT HEAD SCREW M4X8 PH
J005040081
$1.49
13
HH COLLAR SCREW M5X8 SW8
J025050083
$3.08
14
COUNTERSUNK SCREW M6X20
J991060203S
$1.49
15
O-RING CONN. FL. CYL.-THR.BODY
90141002006
$2.05
16
CONN. FLANGE CYLINDER-THR.BODY
90641002300
$22.81
17
IDLE ADJUSTER
90641072000
$80.31
18
O-RING
90141072001
$3.08
19
THROTTLE POSITION SENSOR
90141070000
$75.17
20
SPECIAL SCREW M4X13
90141070001
$1.49
21
TMAP-SENSOR
90141071000
$79.19
22
SPECIAL SCREW M6X14
90141071001
$5.41
23
CLAMP
90641002010
$4.11
7
GROMMET
90141023003
$1.49
8
O-ring
55641023020
$10.56
9
O-ring
55641023010
$7.66
