ENGINE CASE

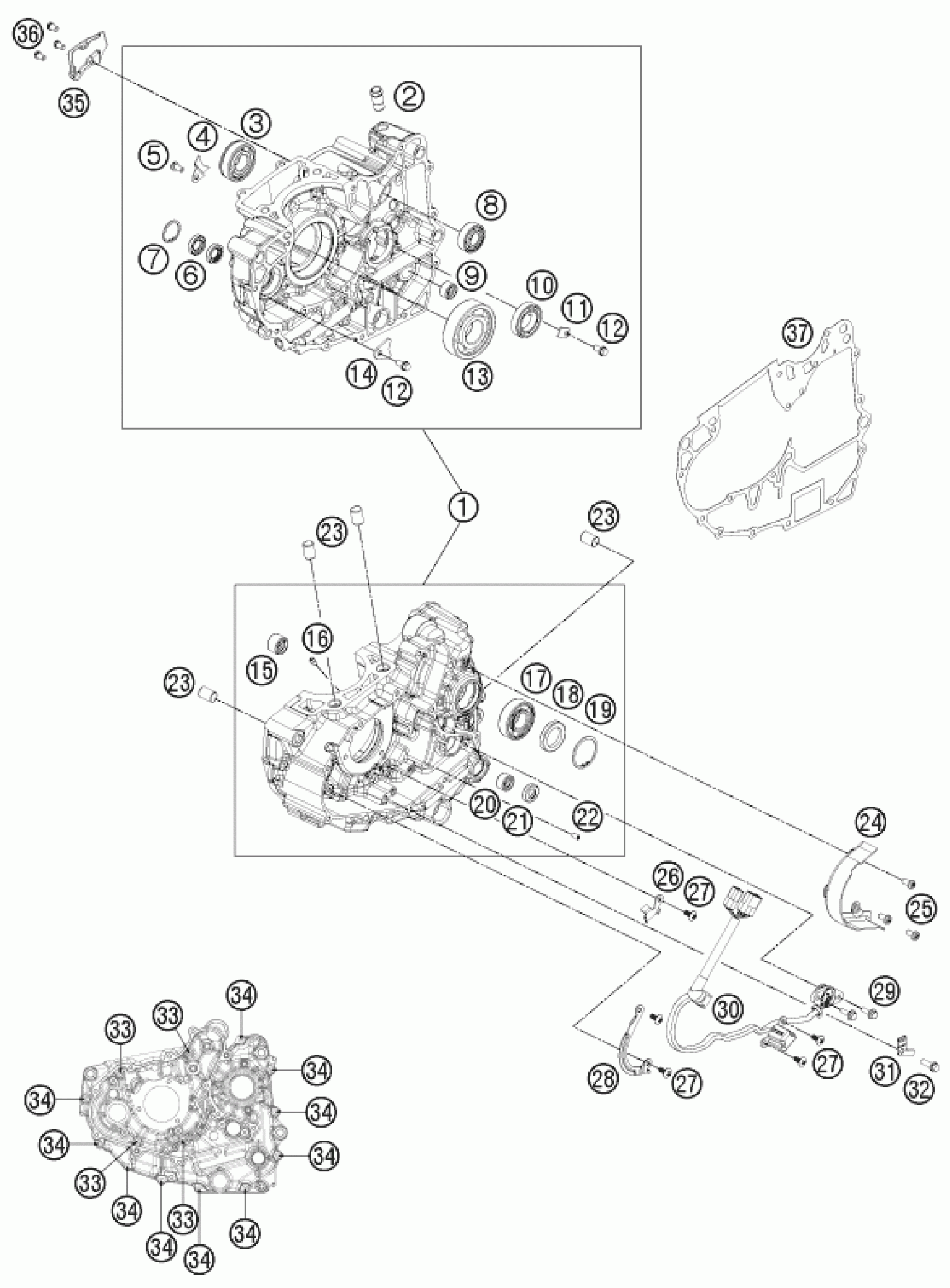

KTM 200 DUKE ORANGE ABS 2014 ENGINE CASE Diagram
#
Description
Price
1
ENGINE CASE CPL.
90130000144
Unavailable
2
VENTILATION CONNECTOR
90130022000
$3.31
3
GROOVED BALL BEARING 6204
J625062040
$10.56
4
LOCK WASHER F.BEARING DRIVE
90130004002
$1.49
5
FLAT HEAD SCREW M6X12 PH
J005160123
Unavailable
6
SHAFT SEALING RING 12X24X5,5
J760122455
$7.75
7
CIRCLIP 25X1,2
J472025120
$1.49
8
BALL BEARING 15X35X11
90130004003
$7.56
9
NEEDLE ROLLER BEARING HK1312
J618131912
$5.23
10
Bearing ball
90130004004
$14.58
11
LOCK WASHER
90130078000
$1.49
12
FLANGED BOLT 6X12
90130078001
$1.49
13
BALL BEARING 63/2/8 HN3CNP
90130082000
$22.99
14
LOCK WASHER F.BEARING AGW
90130079000
Unavailable
15
NEEDLE BEAR. HK1514RS 15X21X14
J618152114
$6.07
16
OIL NOZZLE
90130164000
$27.57
17
BALL BEARING 6204-Z/HN3
J625062041
$11.12
18
SHAFT SEAL RING 25X37X6
J760253706
Unavailable
19
CIRCLIP 37X1,5
J472037150
$1.49
20
NEEDLE ROLLER BEARING HK1312
J618131912
$5.23
21
Seal - oil
90130003004
$2.05
22
OILJET
90130058000
$2.05
23
DOWEL D14
90130003007
$2.05
24
CHAIN GUARD
90130047000
$5.23
25
FLAT HEAD SCREW M6X12 PH
J005060123
$1.49
26
CABLE SUPPORT BELOW
90130003005
$2.05
27
FLAT HEAD SCREW M5X1 SS
J005050106S
Unavailable
28
CABLE SUPPORT ABOVE
90130003006
Unavailable
29
HH-COLLAR SCREW M5X16 WS8
J025050163
Unavailable
30
GEAR-POS.SENSOR INL.PULS. COIL
90111023000
Unavailable
31
BRACKET F. FREE WHEEL GEAR
90140020002
$1.49
32
HH-COLLAR SCREW M6X16 WS8
J028060163
Unavailable
33
HH COLLAR SCREW M6X60 SW10
J025060606
Unavailable
34
HH COLLAR SCREW M6X40 SW10
J025060406
Unavailable
35
BREATHER PLATE
90630042000
$1.49
36
PAN CROSS SCREW M5X10 PH
J985050103
Unavailable
37
ENGINE CASE GASKET
90630039000
$20.00
