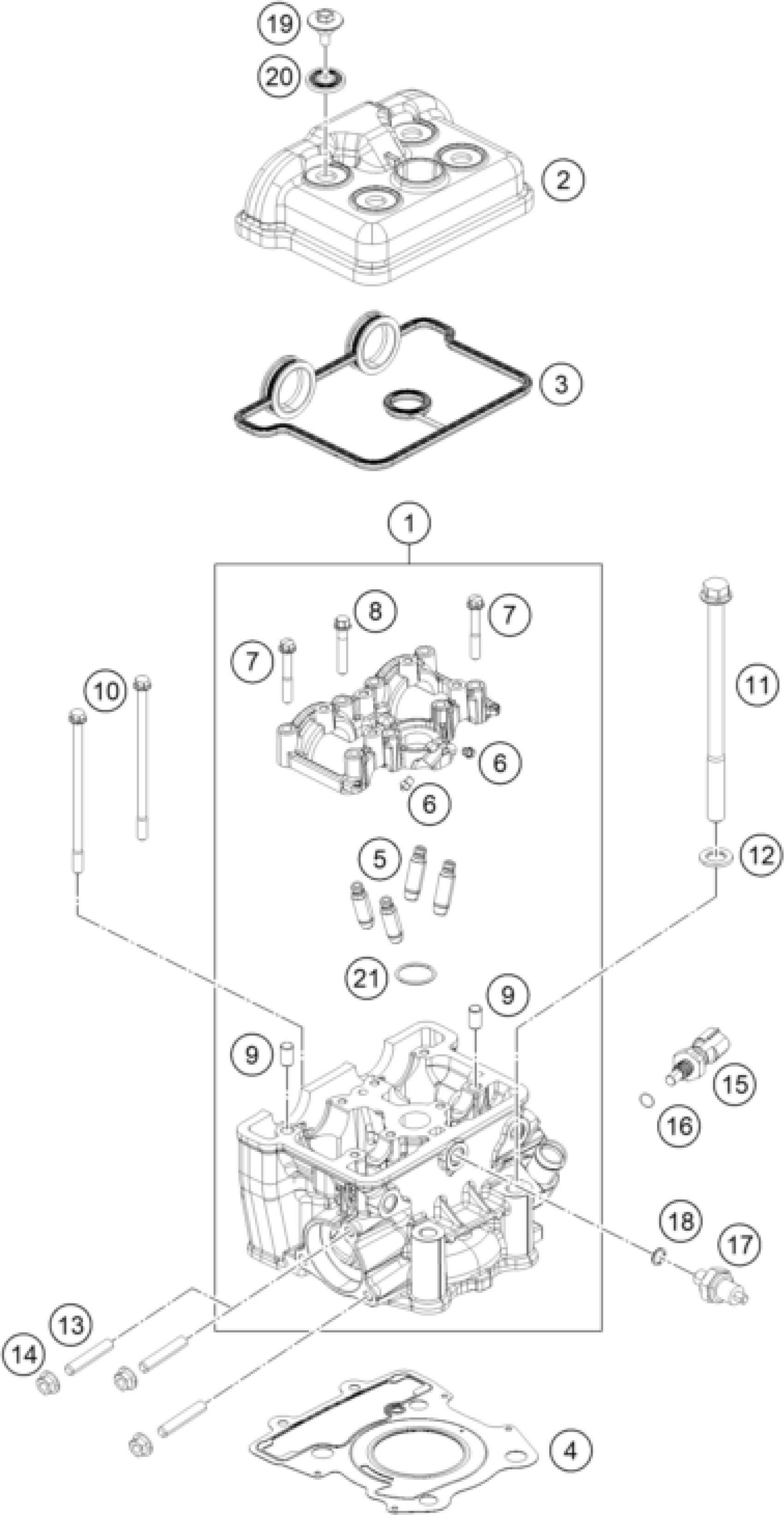

KTM 200 DUKE ORANGE ABS 2014 CYLINDER HEAD Diagram

#

Description

Price

1

CYLINDER HEAD WITH CAMHOLDER

90636020133

Unavailable

2

VALVE COVER

90136052000

Unavailable

3

VALVE COVER GASKET

90136053000

Unavailable

4

CYLINDER HEAD GASKET

90630036000

Unavailable

5

VALVE GUIDE

90136025000

Unavailable

6

OIL JET

90130064000

$6.07

7

HH-COLLAR SCREW M6X40 WS10

J025060402

Unavailable

8

HH-COLLAR SCREW M6X35 WS8

J025060356

$1.49

9

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

10

COLLAR SCREW M6

90136020005

$2.05

11

HH COLLAR SCREW 10X147,5

90136020003

$5.23

12

WASHER 11,2X20X2

90130080000

$1.49

13

STUD M8

90136020001

$2.05

14

FLANGED NUT M8 H7,5 WS12

90136038000

$1.49

15

TEMPERATURE SENSOR

90135047000

$22.34

16

O-ring 7.65x1.78

J770000817800

$1.49

17

OIL PRESSURE SENSOR

90138091000

$15.98

18

O-RING

90138091001

$2.05

19

VALVE COVER SCREW

90136052020

$3.08

20

DECOUPLING ELEMENT

90136052010

$3.08

21

O-RING 23,7X1,9

J770023019

$1.49
