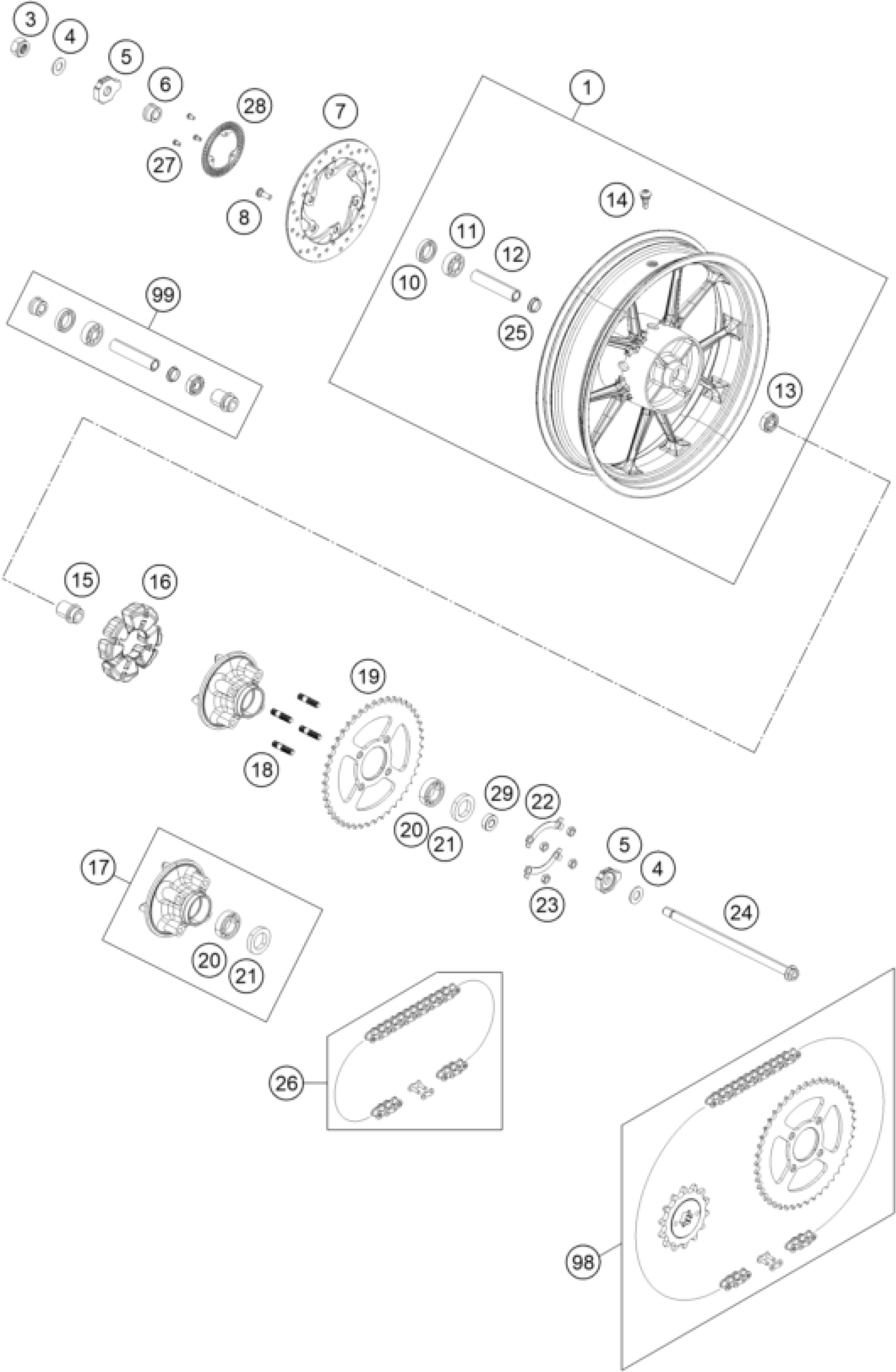

KTM 200 DUKE ORANGE ABS 2013 REAR WHEEL Diagram

#

Description

Price

1

REAR WHEEL CPL.

90110001144

Unavailable

3

wheel spindle nut, rear

90210086000

$3.08

4

washer 15.2x30x2

90610087000

$1.49

5

chain tension adjuster, right

90110084000

$7.10

7

rear brake disk D=230mm

90110060000

$76.94

8

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.08

10

SHAFT SEAL RING 26X42X8

J760264208

$3.08

11

BALL BEARING 6302

J625063020

$13.64

12

BEARING SPACER TUBE REAR

90110011000

$12.61

13

BALL BEARING 6202

J625062021

$11.40

14

VALVE CPL.

90109076000

$7.10

15

SPACER BUSHING KRT INSIDE

90110054000

Unavailable

16

DAMPING RUBBER

90110059000

Unavailable

17

SPROCKET SUPPORT

90110050000

Unavailable

18

STUD M10

90110052050

Unavailable

19

SPROCKET 42T

90610051042

Unavailable

20

BALL BEARING 6005 RS

J625060050

Unavailable

21

SHAFT SEAL RING 30X47X8

J760304708

Unavailable

22

TWIST LOCK WASHER

90110051002

Unavailable

23

FLANGED NUT M10X1,25 H6 WS14

90110052000

Unavailable

24

Axle rear KT03

90210085000

$16.07

25

Fixation bearing spacer tube

90109011001

$1.49

26

chain DID 118 roll

76910065118

$128.83

27

SCREW FOR ABS

90142021001

$1.49

28

SENSOR DISC REAR

90142021000

$8.13

98

DRIVETRAIN KIT 200 DUKÉ14T/42T

00050002018

Unavailable

99

REAR WHEEL REP. KIT

90110015000

Unavailable

29

SPACER CHAIN WHEEL SUPPORT

90110053000

$5.23

6

SPACER BUSHING REAR WHEEL R/S

90110013000

$6.54
