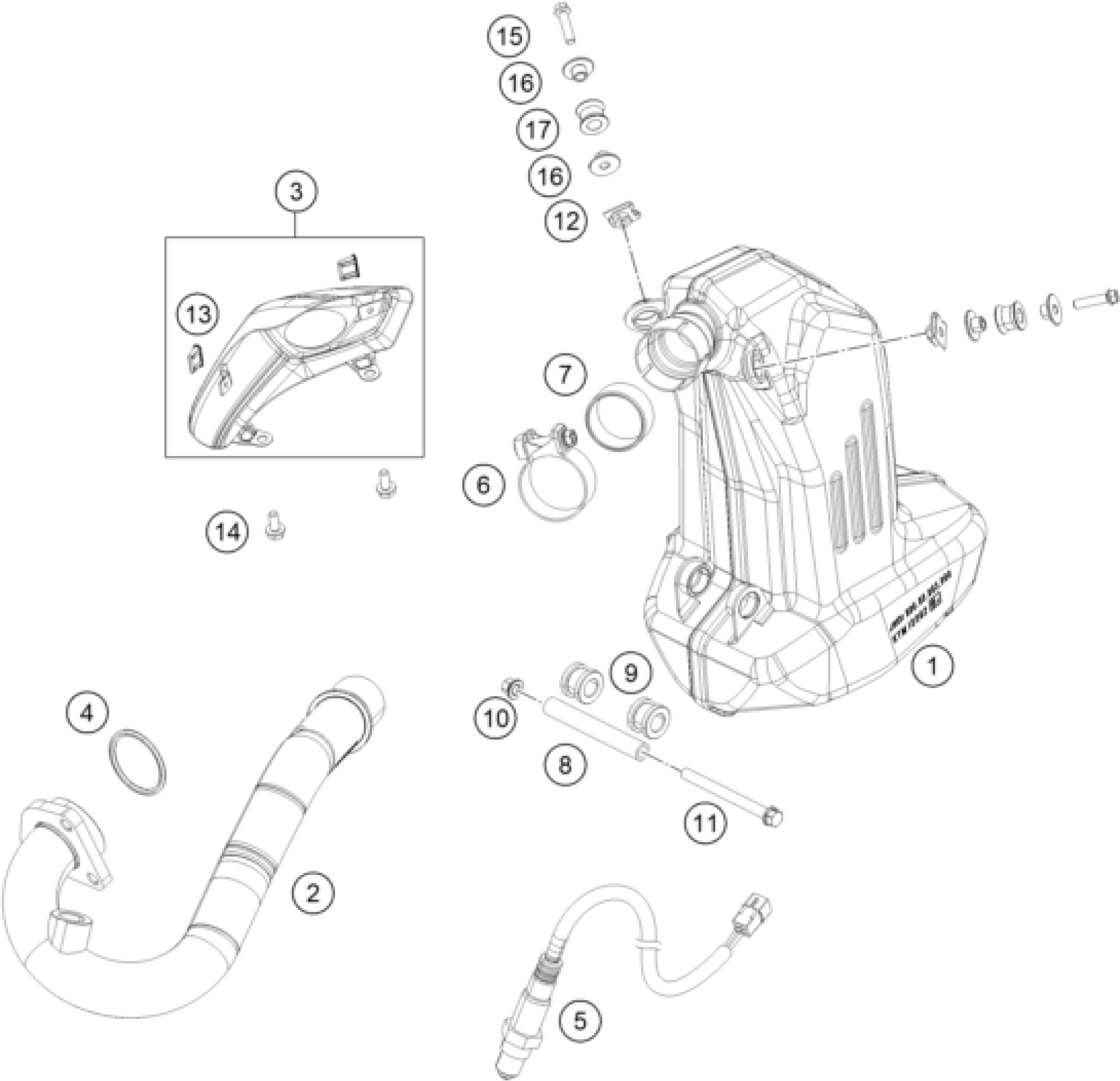

KTM 200 DUKE ORANGE ABS 2013 EXHAUST SYSTEM Diagram

#

Description

Price

1

SILENCER

90605083000

Unavailable

2

EXHAUST MANIFOLD

90605007033

Unavailable

3

HEAT SHIELD CPL.

90105090033

$33.00

4

exhaust flange gasket

90105004000

$5.23

5

oxygen sensor

90141090000

$188.11

6

CLAMP CPL.

90105051000

Unavailable

7

SEAL RING EXHAUST PIPE A

90105005000

Unavailable

8

muffler mounting tube

90105084000

$4.11

9

damper, bottom

90105068100

$1.49

10

FLANGED NUT M8 H7,5 WS12

90136038000

$1.49

11

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

13

RUBBER CAP

90105085000

$2.05

14

HH COLLAR SCREW M6X14 SW10

J025060146

$1.49

15

HH COLLAR SCREW M6X25 SW10

J025060256

$1.49

16

COLLAR BUSH

90105069100

$4.11

17

DAMPING ELEMENT UPPER

90105068200

$1.49

12

clip nut

90103097000

$4.11
