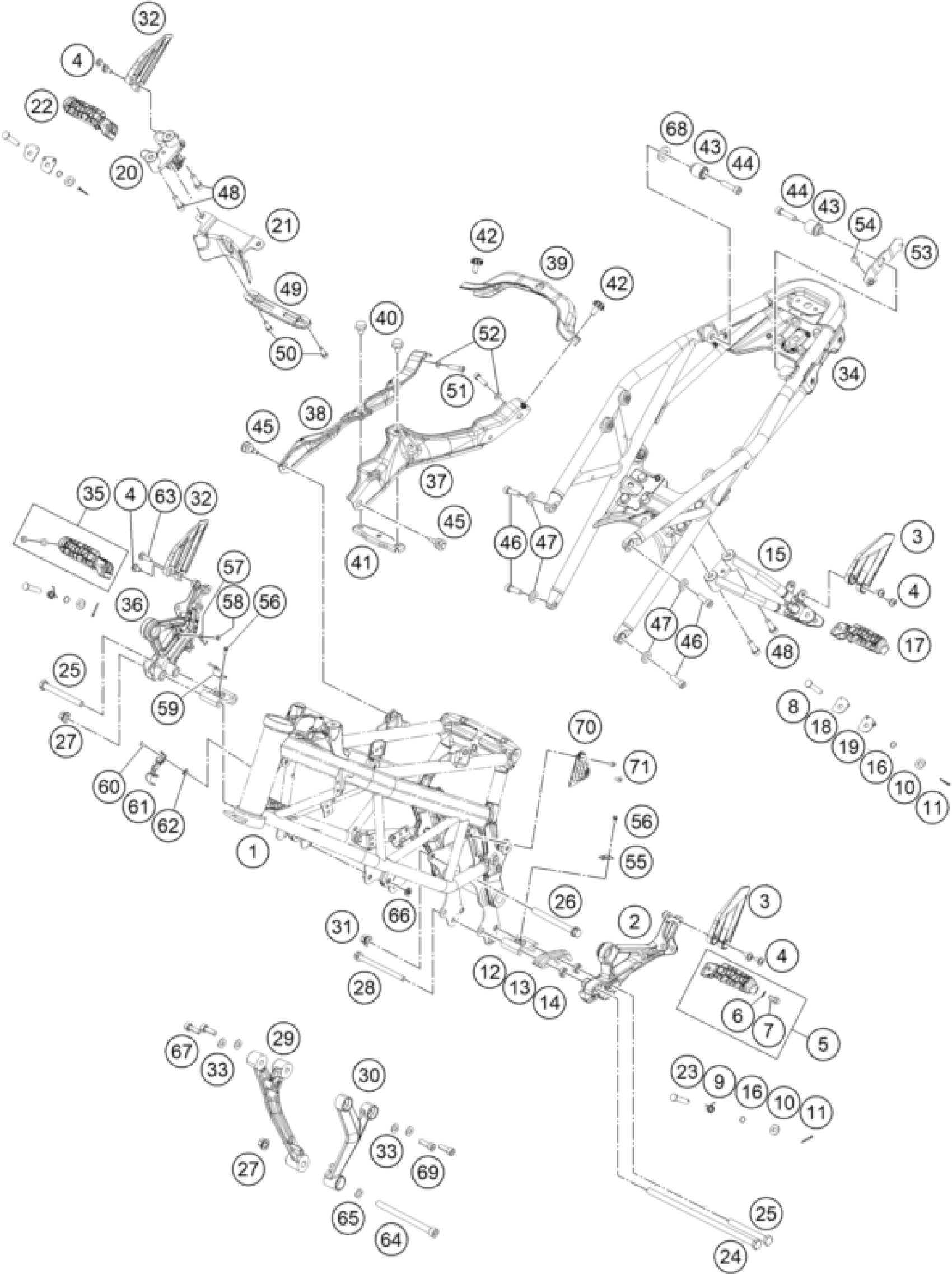

KTM 200 Duke, orange 2020 FRAME Diagram

#

Description

Price

1

Frame Duke 18 black

9300300110030

$1,123.96

2

HOLDER STEP RIDER LH

94103038000

Unavailable

3

Heel protector left

93003048050

$5.23

4

Screw M6X1X9

93008020060

Unavailable

5

Front footpeg cmpl. left

93003140033

$16.45

6

PLAIN WASHER 6,4X12X1

90103040001

$1.49

7

CAP SCREW M6X10 SS

J029060103S

$2.05

8

Pin footrest pivot black

93003054000

$2.05

9

Footpeg spring

93003042000

$1.49

10

WASHER M8

J125080005

$1.49

11

pin cotter-dia. 2.5xl 18

J094020186

$1.49

12

footrest support holder, front

90103038001

$9.90

13

chainguide

90104070000

$10.84

14

spacer chainguide

90104066010

$3.08

15

HOLDER STEP PILLION LH

94103048000

$42.35

16

O-RING 9X1,5

J770009015

$1.49

17

Rear footpeg cmpl. left

93003150033

$21.87

18

Plate lock pillion step bottom

93003053000

$1.49

19

Plate lock pillion step top

93003052000

$1.49

20

HOLDER STEP PILLION RH

94103049000

$42.35

21

Splash protector monoshock

93004050000

$2.05

22

Rear footpeg cmpl. right

93003151033

$21.87

24

HH COLLAR SCREW M10X1,25X265

J025102656

$6.35

25

HH COLLAR SCREW M10X1,25X92

J025100926

$3.08

26

HH COLLAR SCREW M10X110 WS14

J025101103

$3.08

27

FLANGED NUT M10X1.25 WS14

90103038002

$2.05

28

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

29

ENGINE HANGER RH MAT BLACK KT1

93303006000C1

Unavailable

30

ENGINE HANGER LH MAT BLACK KT1

93303005000C1

Unavailable

31

Nut socket-M10x1.25

93003005100

$2.05

32

Heel protector right

93003049050

$3.08

33

Washer M8

J125080006

$3.08

34

Rear frame orange

93003002000EB

$443.84

35

Front footpeg cmpl. right

93003141033

$16.45

36

HOLDER STEP RIDER RH

94103039000

$34.12

37

Bracket spider lh

93003002050

$24.77

38

Bracket spider rh

93003002151

$22.52

39

Bracket seat mount loose

93003002030

$7.38

40

Retaining pin

93007044000

$1.49

41

Seat cowl front complete

93003001070

$4.11

42

Rubber buffer

93008023000

$1.49

43

Seat support complete

93007047033

$5.32

44

Set screw with hexagon socket

J912080302

$1.49

45

Screw

93007046050

$6.54

46

Hexagon screw M8X25

J912080251

$2.05

47

washer plain-id8.2xod15xt2xbla

J690000801500

$1.49

48

AH SCREW M8X27

J020080273

$2.05

49

Passenger footrest bracket

93003056000

$4.11

50

bolt socket-M6X1XL18

J912060186

$1.49

51

hexagon socket screw M8X31

93008019070

$1.49

52

Washer, M8

J125100002

$1.49

53

Retaining bracket

93006040060

$4.11

54

FLAT HEAD SCREW M5X12 PH

J005050123

$1.49

55

CABLE BRACKET

90111045050

$1.49

56

FLANGED BOLT M6X14

90103032000

$1.49

57

Retaining bracket

93013041000

$1.49

58

HH-COLLAR SCREW M6X10 SW8

J025060109

$1.49

59

Support

93013026000

$1.49

60

Roundhead screw M4X12

J031050121

$1.49

61

Guide clutch cable

93032059010

$3.08

62

CLIP NUT M5

90108050001

$2.05

63

Screw M6X1X25

93008043000

$1.49

64

BOLT FL-M10X1.25XL 130XBRXTAPI

J900001013000

$4.11

65

Spring washer M10

J127100003

$1.49

66

Clip

90108023100

$1.49

67

Bolt socket-M8X1.25Xl22Xcl8.8X

J912080226

$1.49

68

Washer - plain

J125140003

$1.49

69

Hexagon screw M8X25

J912080251

$2.05

70

guard ih

93008041060

$2.05

71

SCREW BUTTON HEAD-M5X0.8XL 8XB

J031060106

$27.11

23

pin clevis dia 8

J920000804701

$1.49
