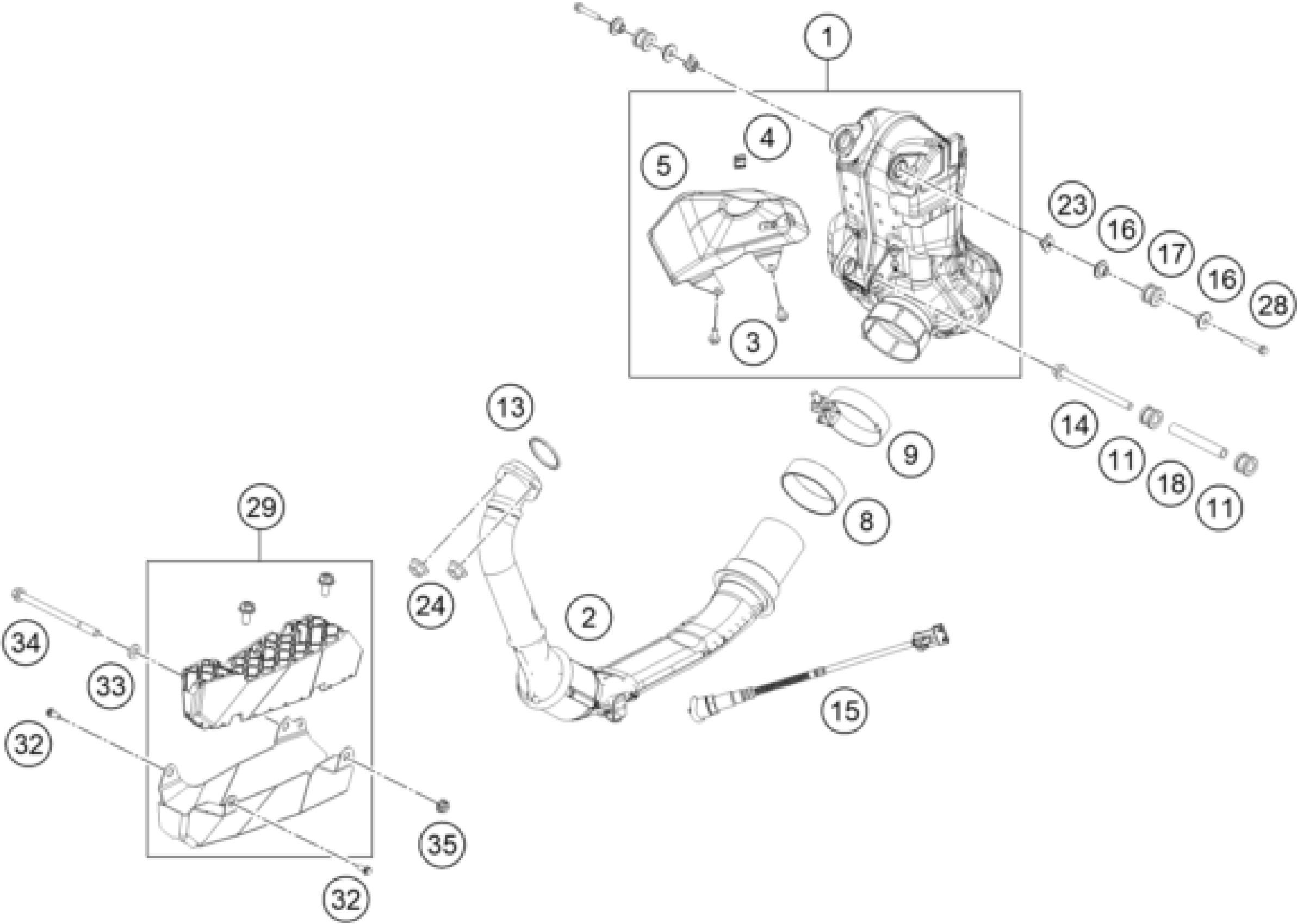

KTM 200 Duke, orange 2020 EXHAUST SYSTEM Diagram

#

Description

Price

2

pipe assembly a

94105007000

$999.97

8

Exhaust flange gasket, premuff

94305050072

$8.59

9

Exhaust clamp

94305051000

$14.30

1

ASSEMBLY MUFFLER

94105083000

$293.49

11

damper, bottom

90105068100

$1.49

13

exhaust flange gasket

90105004000

$5.23

14

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

15

Oxygen sensor

94341090000

$100.69

16

muffler mounting spacer bushin

90205086001

$2.05

17

damper, bottom

90205068000

$2.05

18

muffler mounting tube

90105084000

$4.11

23

clip nut

90103097000

$4.11

24

Hex collar nut M6

J926080003

$1.49

28

BOLT SILENCER MTG

90105000002

$1.49

29

Heat protection, cmpl.

94005065033

$63.76

32

BOLT FLANGED M6X14

J028060143

$1.49

33

WASHER 6,5X2 MM

J126061252

$1.49

34

HH COLLAR SCREW M6X90

J026060903

$2.05

35

Hexagon nut M6

J926060001

$1.49

4

GROMMET MUFFLER SHIELD

93805011003

$1.49

3

HH COLLAR SCREW M6X14 SW10

J025060146

$1.49

5

SHIELD ASSEMBLY MUFFLER

28305011033

$50.20
