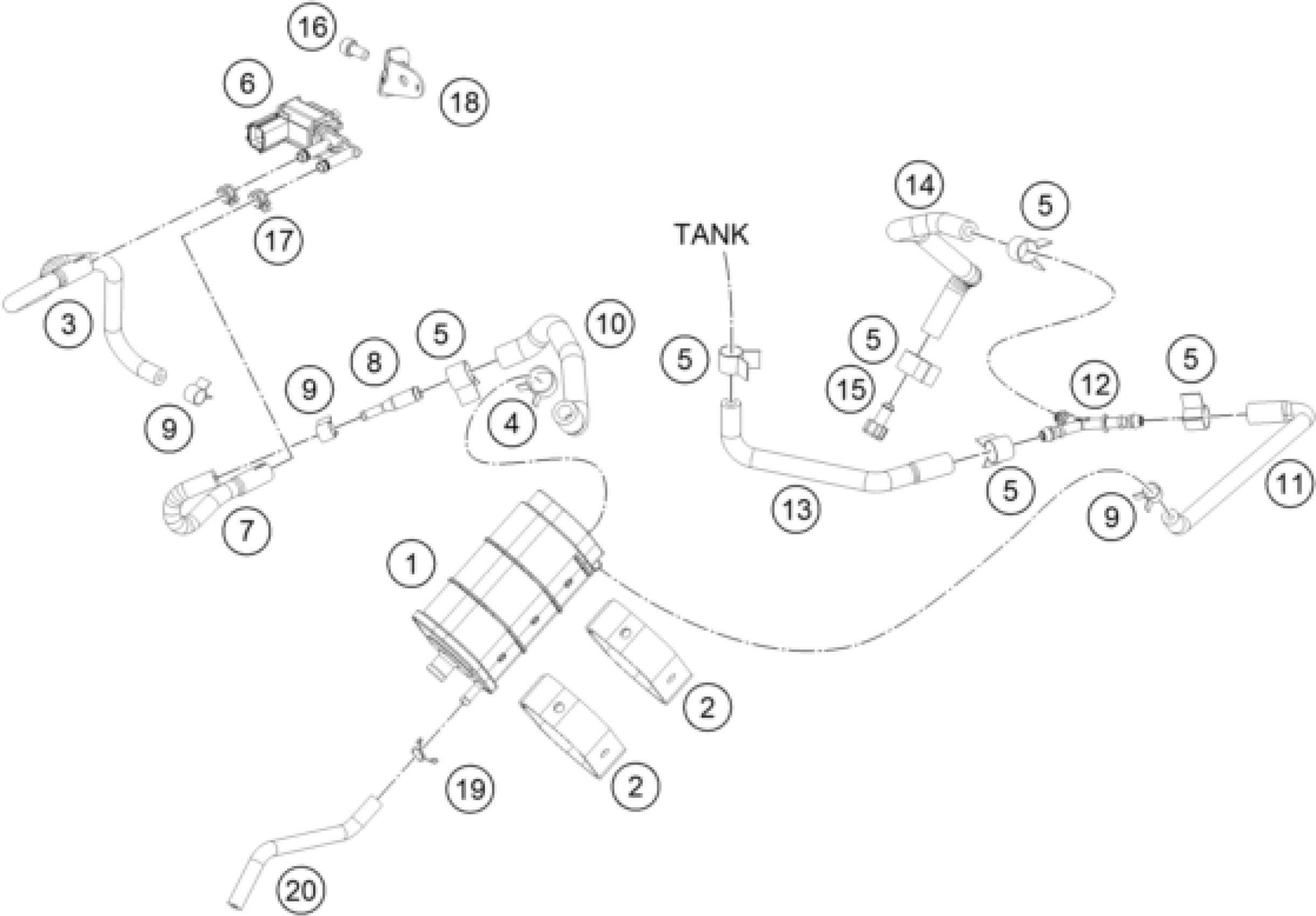

KTM 200 Duke, orange 2020 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

Activated carbon filter

93015001000

Unavailable

2

Rubber band

93015003000

Unavailable

3

Hose PV-DKK

J600000414000

Unavailable

4

SPRING BAND CLAMP 15X10

90607017001

Unavailable

5

SPRING BAND CLAMP D13

90607017003

Unavailable

6

Valve purge

90607830000

Unavailable

7

Hose Y-PV

J600000412000

Unavailable

8

CONNECTOR TUBE EVAP

90207016004

Unavailable

9

CLAMP D9

90607017002

Unavailable

10

Hose ACF-Y

J600000813700

Unavailable

11

Y connection

93015017000

Unavailable

12

CONNECTOR Y SHAPE

90507015000

Unavailable

13

Pre-formed hose

93015026000

Unavailable

14

TUBE CONNECTOR TO PLUG

90515023000

Unavailable

15

PLUG FUEL DRAIN

90515011000

Unavailable

16

hexagon socket screw M6X12

J912060123

Unavailable

18

BRACKET VALVE PURGE

94115032050

Unavailable

19

CLAMP

90107013008

Unavailable

20

Hose active carbon filter

93015029000

Unavailable

17

Hose clamp 12.5 x 8 SW

J310000801300

Unavailable
