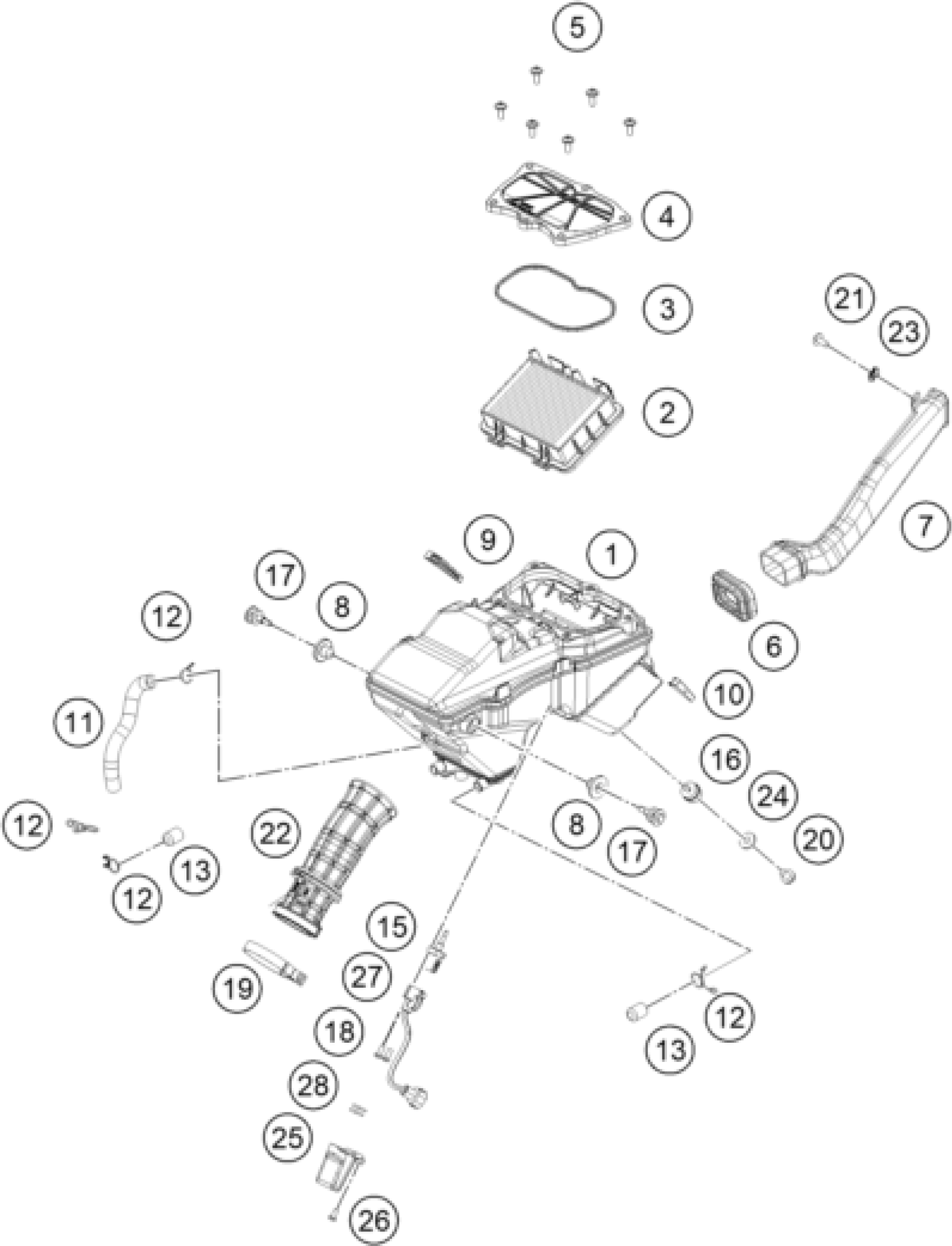

KTM 200 Duke, orange 2020 AIR FILTER Diagram

#

Description

Price

1

Air filter box

94006001000

Unavailable

2

FILTER

93006015000

Unavailable

3

Seal

93006020050

Unavailable

4

Air filter box cover

93006002000

Unavailable

5

Flat-head screw M6

93006039000

Unavailable

6

Carburetor connection boot

93006001060

Unavailable

7

Intake snorkel cmpl.

94306040033

Unavailable

8

Damping rubber

93006001080

Unavailable

9

Distance piece air filter box

93006021000

Unavailable

10

Rubber cowl pad

93006001015

Unavailable

11

Engine vent hose

93030087200

Unavailable

12

HOSE CLAMP

90130087001

Unavailable

13

Plug

93030089000

Unavailable

15

Intake air temperature sensor

93041080000

Unavailable

16

SILENT BLOCK AIRFILTER

90106001007

Unavailable

17

Hex collar screw. M8x23.5

J025080246

Unavailable

18

Lens head screw M5X12

J005050126

Unavailable

19

CLAMP

90641002010

Unavailable

20

bolt-flanged-small

J025060082

Unavailable

21

CHEESE-HEAD SCREW M5X16

J031050163

Unavailable

23

CLIP NUT M5

90108050001

Unavailable

24

Washer, M6

J125060004

Unavailable

25

SENSOR COVER

93041080060

Unavailable

26

Oval head screw M5X10

J005050101

Unavailable

27

Cable

93041080050

Unavailable

28

DOPPELSEIT. KLEBEB. 3M 10X15

93041080070

Unavailable

22

TUBE CONNECTING

93106026000

Unavailable
