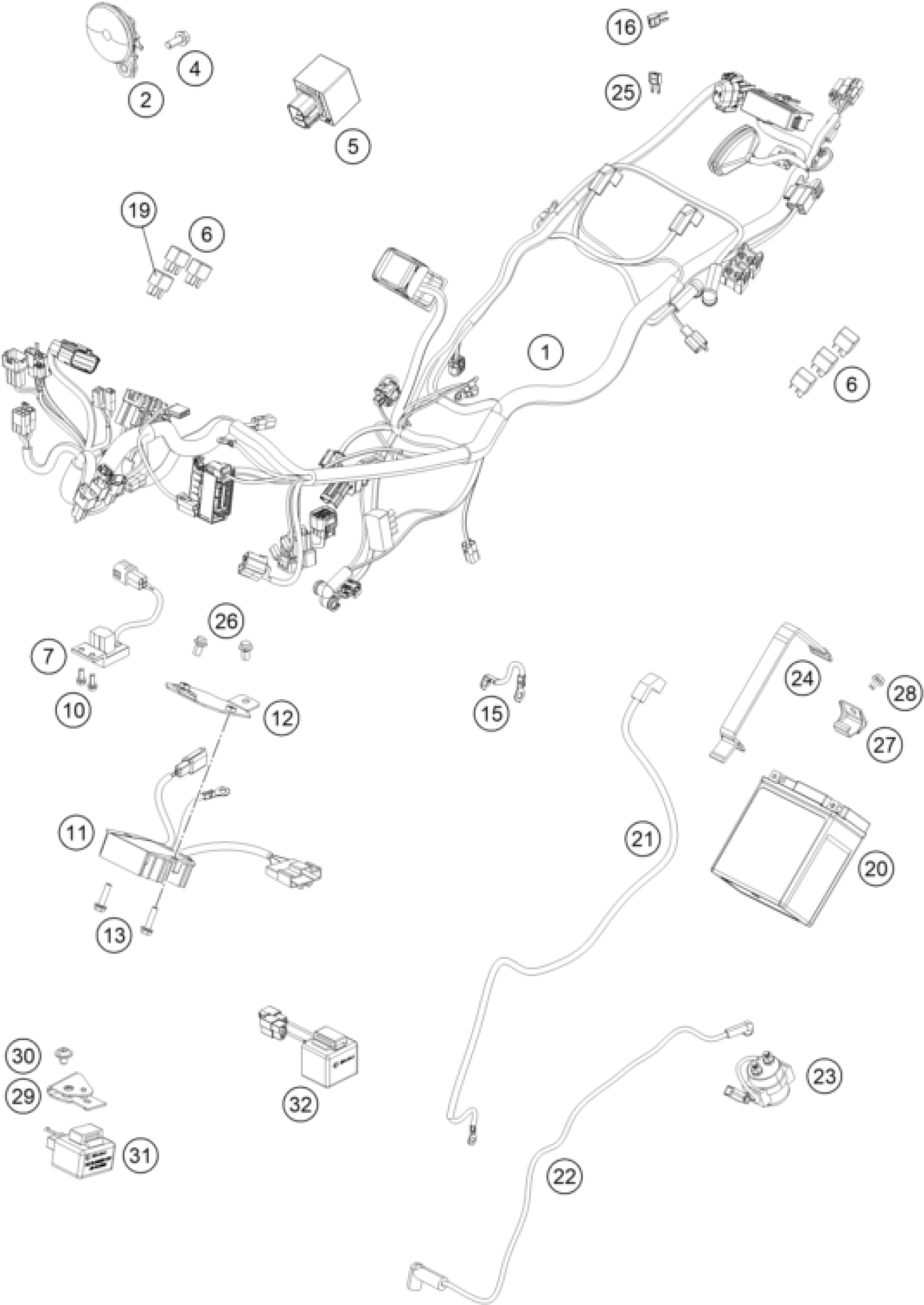

KTM 200 DUKE OR. w/o ABS CKD 14 <2014> WIRING HARNESS Diagram

#

Description

Price

1

WIRING HARNESS CPL.

90211075050

Unavailable

4

HH COLLAR SCREW M8X12 SW12

J025080123

$1.49

5

IGNITION UNIT

90539010000

$48.52

6

relay (interlock)

90611057000

$24.49

7

ROLL OVER SENSOR

90141088000

$31.88

16

FUSE 15A 07

75011088015

Unavailable

16

FUSE MINI 20A

75011088020

Unavailable

16

FUSE 30A

75011088030

Unavailable

13

bolt flanged M6X25

J025060253

$1.49

11

VOLTAGE REGULATOR

90111034000

$134.26

10

HH COLLAR SCREW M5X13 SW8

J011050133

$1.49

12

BRACKET REGULATOR MTG

90111134010

$5.23

15

earth wire

90211097000

$9.72

16

FUSE 10A 07

75011088010

Unavailable

19

RELAY (AUX1DIODE)

90611157000

$24.58

21

EARTH CABLE

90211197000

$11.77

22

CABLE RELAY TO MOTOR

90211059000

$18.50

23

STARTER RELAY

90111058000

$25.80

24

BRACKET RUBBER FOR BATTERY

90111054000

$5.23

26

HH-COLLAR SCREW M6X10 SW8

J025060109

$1.49

27

BRACKET BATTERY MTG

90611054000

$4.11

28

HH COLLAR SCREW M6X10 SW10

J025060103

$1.49

29

HOLDING PLATE FLASHER RELAY

90103001051

$2.05

30

SOCKET HEAD BOLT M6X1X8

90508006004

$1.49

31

indicator relay

90511030000

$29.44

32

CONTROL UNIT HEAD LIGHT

90511021000

$37.20

2

HORN 82 DIA

90111060100

$22.81

20

BATTERY 12V/8AH

90611053000

$137.81
