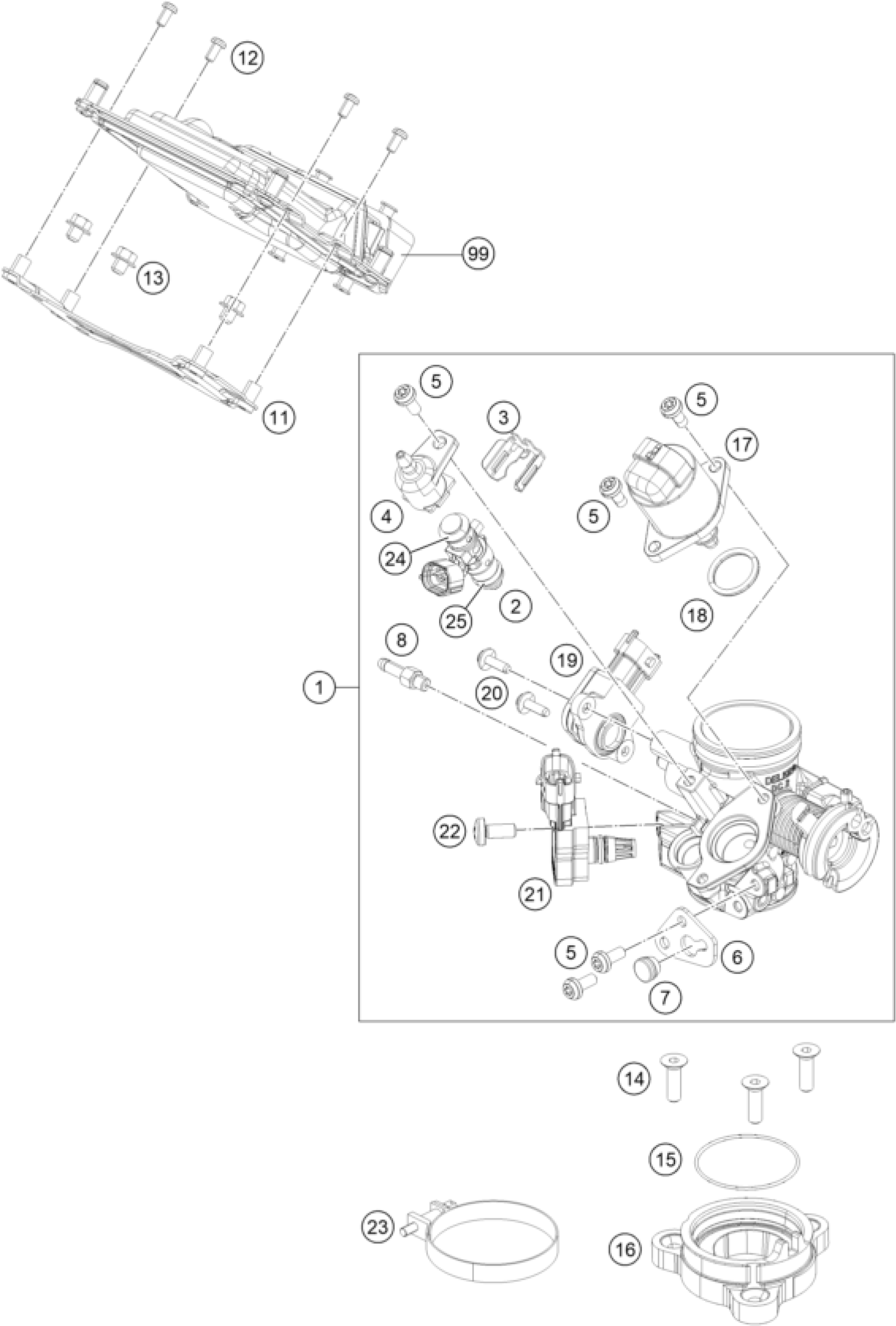

KTM 200 DUKE OR. w/o ABS CKD 14 <2014> THROTTLE BODY Diagram

#

Description

Price

7

GROMMET

90141023003

Unavailable

11

BRACKET TIMING CHARGER

90141029000

Unavailable

12

FLAT HEAD SCREW M4X8 PH

J005040081

Unavailable

13

HH COLLAR SCREW M5X8 SW8

J025050083

Unavailable

21

TMAP-SENSOR

90141071000

Unavailable

22

SPECIAL SCREW M6X14

90141071001

Unavailable

1

THROTTLE BODY CPL.

90641801044

Unavailable

2

FUEL INJECTOR

90641023000

Unavailable

3

INJECTOR CLIP

90141001001

Unavailable

4

CONNECTOR FUEL RAIL

90141023004

Unavailable

5

SPECIAL SCREW M5X12

90141023005

Unavailable

6

CABLE SUPPORT

90141023002

Unavailable

14

COUNTERSUNK SCREW M6X20

J991060203S

Unavailable

15

O-RING CONN. FL. CYL.-THR.BODY

90141002006

Unavailable

16

CONN. FLANGE CYLINDER-THR.BODY

90641002300

Unavailable

23

CLAMP

90641002010

Unavailable

8

NOZZLE EVAP

90641801001

Unavailable

17

IDLE ADJUSTER

90641072000

Unavailable

18

O-RING

90141072001

Unavailable

19

THROTTLE POSITION SENSOR

90141070000

Unavailable

20

SPECIAL SCREW M4X13

90141070001

Unavailable

99

ECU RAW PART

90141031100

Unavailable

24

O-ring

55641023020

Unavailable

25

O-ring

55641023010

Unavailable
