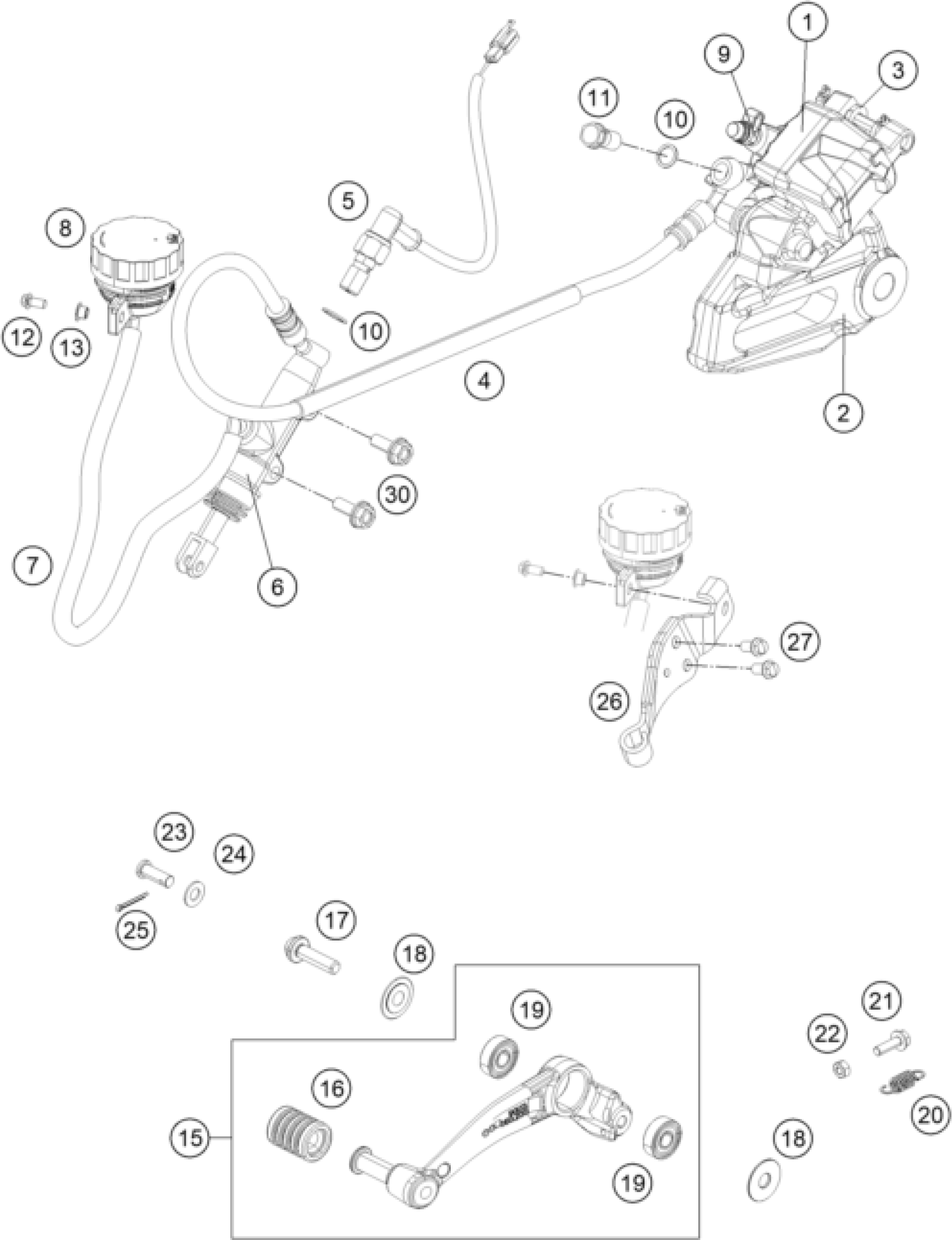

KTM 200 DUKE OR. W/O ABS B.D. 16 <2016 REAR BRAKE CALIPER Diagram

#

Description

Price

1

brake caliper, rear cpl.

90113080000

$278.34

2

BRAKE CALIPER SUPPORT REAR

90113075000

$86.01

3

REAR BRAKE PADS - SET

90113090000

$28.42

4

BRAKE HOSE REAR

90113072000

Unavailable

5

brake light switch, rear

90111051000

$26.26

6

footbrake zylinder cpl.

90113060000

$63.10

7

HOSE F. RESERVOIR

90113069000

$5.23

8

BRAKE FLUID RESERVOIR CPL.

90113009000

$7.28

9

BLEEDER SCREW

90113121000

$3.08

10

COPPER GASKET

90113026000

$2.05

11

BANJO SCREW

90113013000

$3.08

12

HH COLLAR SCREW M6X16 SW10

J025060163

$1.49

13

COLLAR BUSHING

90114060003

$2.05

15

FOOT BRAKE LEVER CPL.

90113050233

$63.38

16

GEAR SHIFT LEVER RUBBER

90134035000

$2.05

17

BOLT SHIFT LEVER

90134034300

$2.05

18

thrust washer, gear shift leve

90134031020

$2.05

19

BALL BEARING 608

J625060800

$7.94

20

brake pedal spring

90113052000

$2.05

21

HH COLLAR SCREW M6X20 SW10

J025060203

$1.49

22

HEXAGON NUT M6

J934060003

$1.49

23

pin for fork end

90113057000

$1.49

24

PLAIN WASHER 6,5X13X1

J125060003

$1.49

25

splint pin 2x15mm

J094020153

$1.49

26

RETAINING PLATE RESERVOIR

90113174000

Unavailable

27

HH-COLLAR SCREW M6X10 SW8

J025060109

$1.49

30

HH COLLAR SCREW M6X16 SW10

J025060163

$1.49
