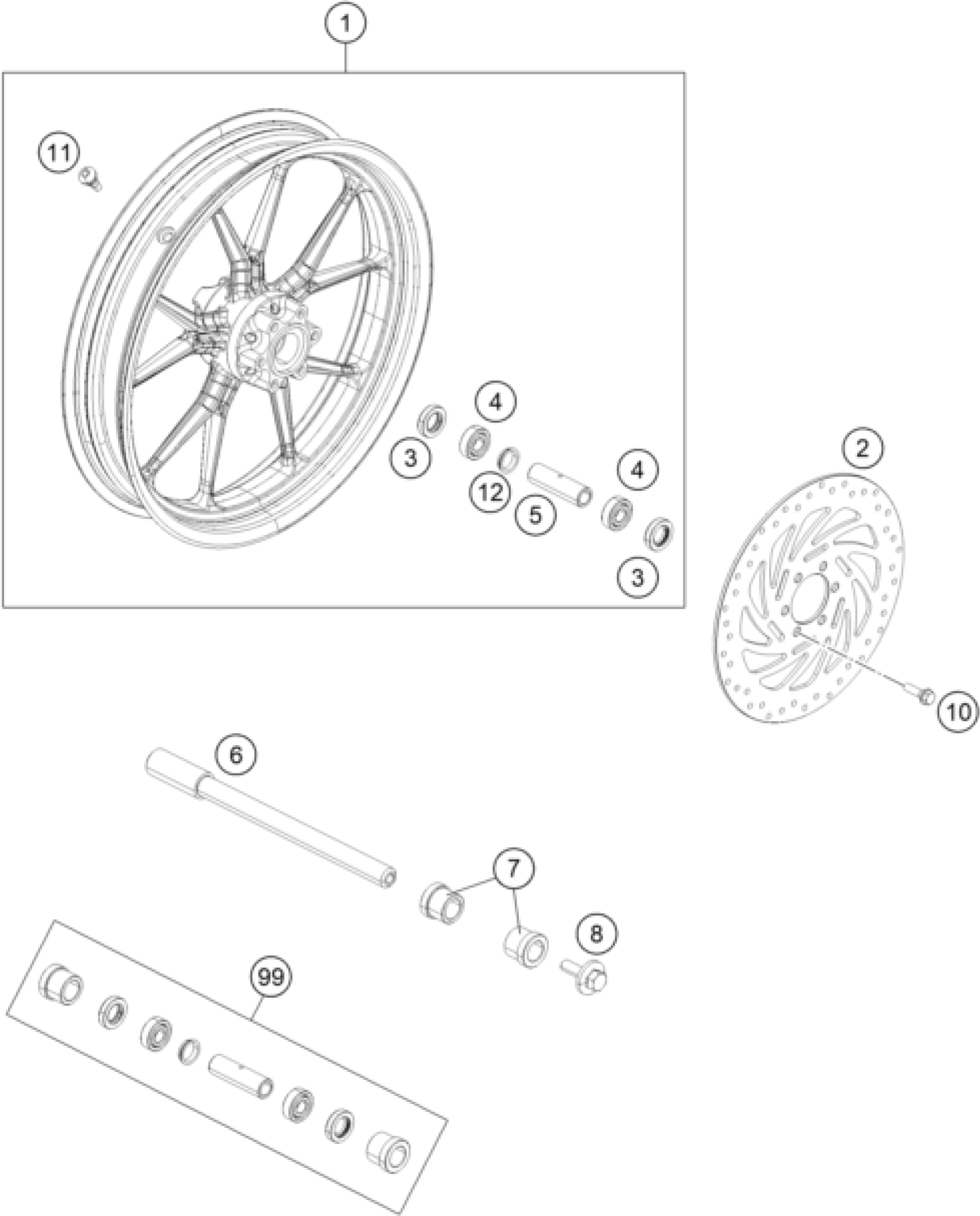

KTM 200 DUKE OR. W/O ABS B.D. 16 <2016> FRONT WHEEL Diagram

#

Description

Price

1

FRONT WHEEL CPL. HD BLACK

9120900104430

Unavailable

2

BRAKE DISC FRONT

90109060100

$152.77

3

SHAFT SEAL RING 22X35X8

J760223508

$3.08

4

BALL BEARING 6202

J625062023

$11.40

5

Spacer front wheel

90109011000

$14.95

6

AXLE FRONT D=15MM

90109081000

$24.77

7

BEARING BUSHING

90209083000

$5.23

8

flanged bolt M8

90109082000

$4.11

10

SPECIAL SCREW M8X30 SELF LOCK.

90109062000

$2.05

11

VALVE CPL.

90109076000

$7.10

12

Fixation bearing spacer tube

90109011001

$1.49

99

FRONT WHEEL REP. KIT

90109015000

Unavailable
