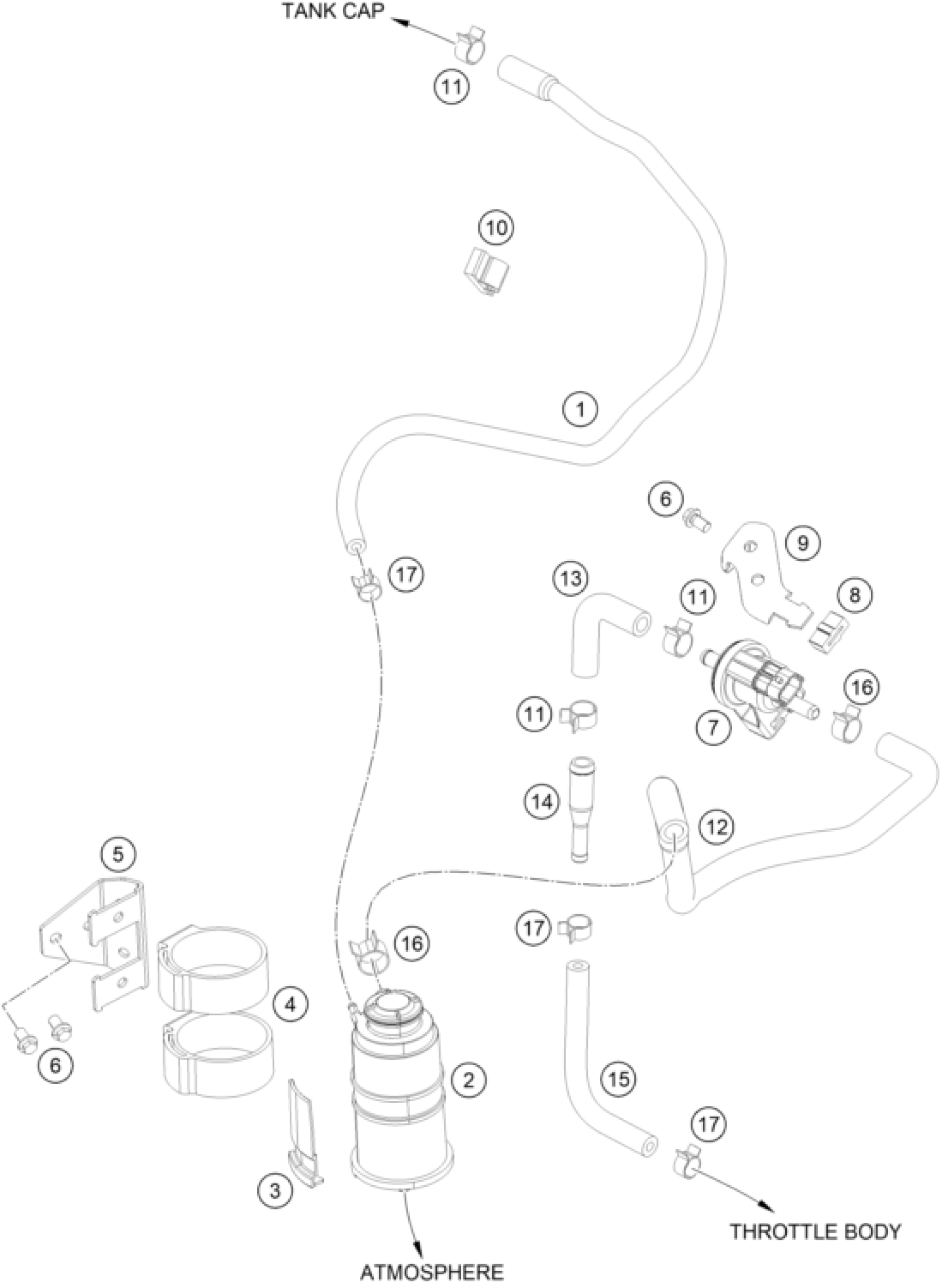

KTM 200 DUKE OR. w/o ABS B.D. 15 <2015> EVAPORATIVE CANISTER Diagram

#

Description

Price

1

HOSE

90607016000

Unavailable

2

TANK CANISTER

90207027001

Unavailable

3

LOCATOR CAP CANISTER

90203001053

Unavailable

4

STRAP CANISTER

90607029001

Unavailable

5

BRACKET CANISTER MTG

90203001051

Unavailable

6

HH-COLLAR SCREW M6X10 SW8

J025060109

Unavailable

7

fuel tank vent valve

90607030000

Unavailable

9

BRACKET PURGE VALVE

90603001050

Unavailable

10

PLUG FUEL DRAIN

90515011000

Unavailable

15

HOSE

90607016300

Unavailable

17

CONNECTOR TUBE EVAP

90207016004

Unavailable

11

CLAMP D9

90607017002

Unavailable

12

CONNECTOR Y SHAPE

90507015000

Unavailable

13

HOSE

90607016100

Unavailable

14

TUBE CONNECTOR TO PLUG

90515023000

Unavailable

16

TUBE PURGE VALVE TO CONNECTOR

90207016002

Unavailable

18

HOSE

90207016003

Unavailable

20

CLAMP 10MM

90107018011

Unavailable

19

SPRING BAND CLAMP 15X10

90607017001

Unavailable
