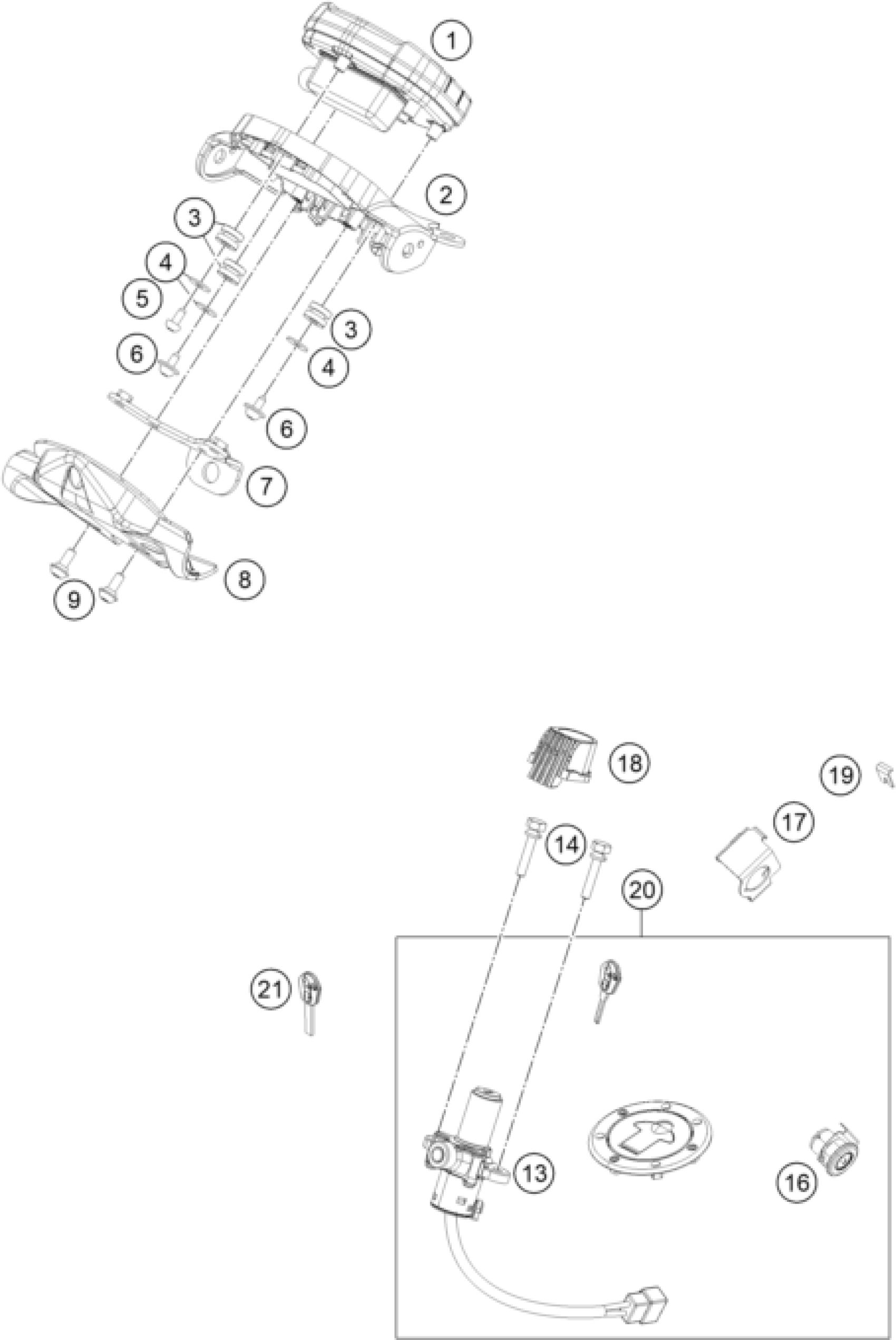

KTM 200 DUKE grey, ABS-CKD 2023 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

Dashboard

94114069000

$548.84

2

Dasboard support LCD

93014060000

$23.46

3

GROMMET DASHBOARD

90114060050

$1.49

4

PLAIN WASHER

90114064013

$1.49

5

Screw speedometer bracket LCD

93114062000

$1.49

6

SELF TAPPING SCREW K50X12 T20

J081050121

$2.05

7

Sheet insert LCD support 2

93014063000

$1.49

8

Dashboard support rear

93014061000

$8.59

9

Screw M6X1X13

93008040000

$1.49

13

Ignition lock complete

93011066044

$39.17

14

Special screw for ignition loc

93011064100

$2.05

16

SEAT LOCK

90107050050

$34.12

17

Retaining bracket

93007051000

$3.08

18

Positioning rubber

93011066010

$2.05

19

PLATE SEAT LOCK

90107050151

$1.49

20

Lock Set

94311066044

Unavailable

21

BLANK KEY 125/200 DUKE

90111067100

Unavailable

21

KEY

90111067000

$130.05
