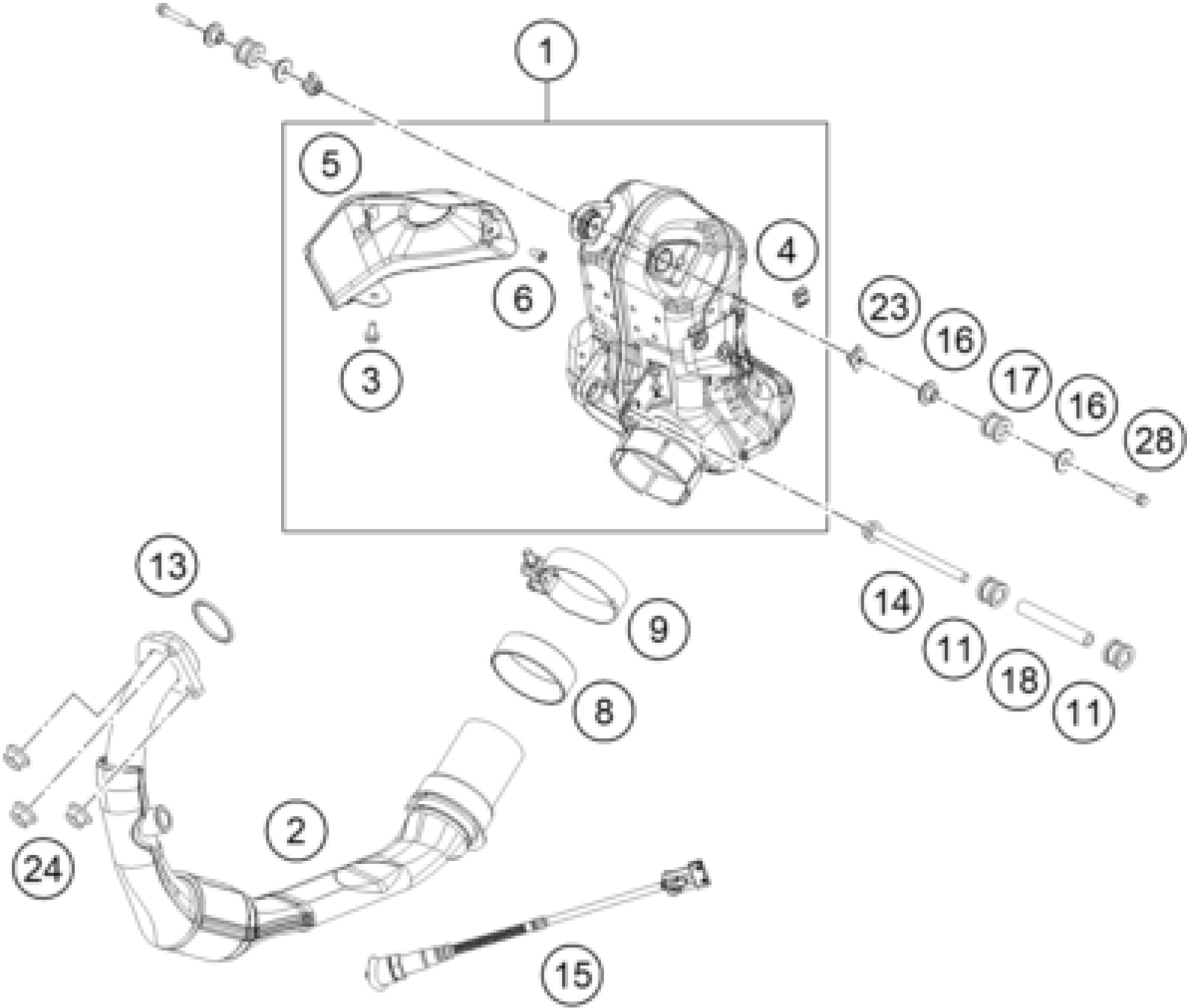

KTM 200 DUKE grey, ABS-CKD 2023 EXHAUST SYSTEM Diagram

#

Description

Price

1

Muffler

93105083000

Unavailable

2

pipe assembly a

94605007033

Unavailable

3

HH COLLAR SCREW M6X14 SW10

J025060146

Unavailable

4

GROMMET MUFFLER SHIELD

93805011003

Unavailable

5

SHIELD ASSEMBLY MUFFLER

93105011033

Unavailable

6

BOLT SOCKET M6X1

J900000601002

Unavailable

8

GASKET EXHAUST

94305050172

Unavailable

9

Exhaust clamp

94305051000

Unavailable

11

damper, bottom

90105068100

Unavailable

13

GASKET EXHAUST

90105004100

Unavailable

14

HH COLLAR SCREW M8X105 SW12

J027081053

Unavailable

15

Oxygen sensor

94341090000

Unavailable

16

muffler mounting spacer bushin

90205086001

Unavailable

17

damper, bottom

90205068000

Unavailable

18

muffler mounting tube

90105084000

Unavailable

23

clip nut

90103097000

Unavailable

24

Hex collar nut M6

J926080003

Unavailable

28

BOLT SILENCER MTG

90105000002

Unavailable
