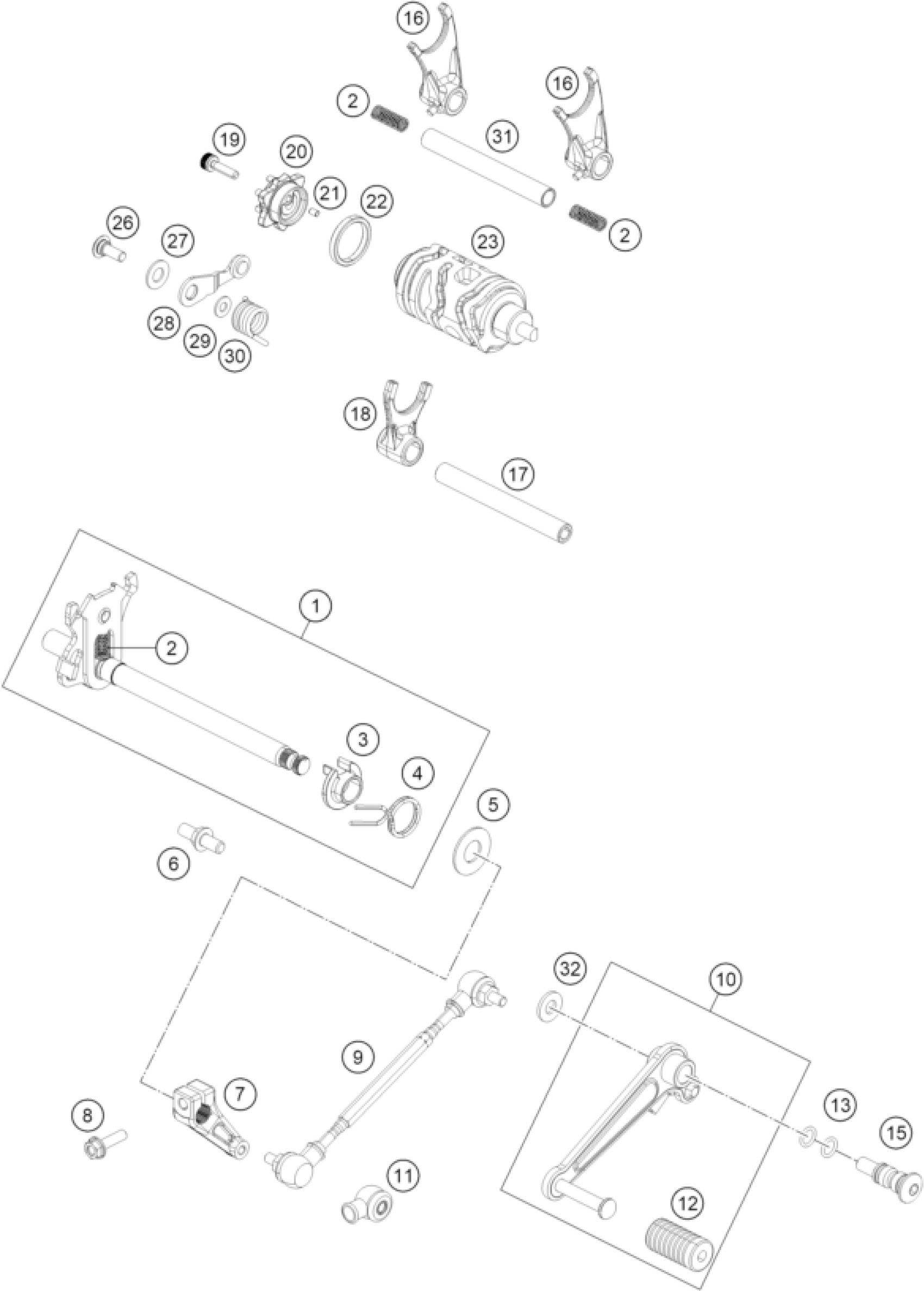

KTM 200 DUKE, grey, ABS-B.D. 2025 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT SHAFT CPL.

90134005033

Unavailable

2

TENSION SPRING

90134009000

Unavailable

3

SPRING BUSHING

90134022000

Unavailable

4

RETURN SPRING

90134014000

Unavailable

5

STOP DISK 14X30X1,5

90134050000

Unavailable

6

SPRING GUIDE

90134016000

Unavailable

7

Linkage gear shift lever

93034031010

Unavailable

8

Bolt-Flange-Kad ST-D DIA-06 L-

J025060221

Unavailable

9

Shift rod complete

93034036033

Unavailable

10

LEVER ASSEMBLY CHANGE

93134031033

Unavailable

11

cover dust tie rod

93003044000

Unavailable

12

DAMPER

90634035000

Unavailable

13

RING - O

J770000918000

Unavailable

15

SCREW GEAR CHANGE LEVER

93134034000

Unavailable

16

Shift fork

93034001000

Unavailable

17

GEAR SHIFT RAIL

90134019000

Unavailable

18

SHIFT FORK MAIN

90134001000

Unavailable

19

Bolt socket head M6X1X20 L-pre

90134098000

Unavailable

20

SHIFT DRUM LOCATING

90134015000

Unavailable

21

Parallel pin

90134013000

Unavailable

22

SPACER

90134012002

Unavailable

23

Shift drum

93534012000

Unavailable

26

SCREW LOCKING LEVER

90134025000

Unavailable

27

WASHER LOCKING LEVER

90134030000

Unavailable

28

LOCKING LEVER CPL.

90134024033

Unavailable

29

Washer, 6x14x1.2

J125061416

Unavailable

30

ARRESTING LEVER SPRING

90134023000

Unavailable

31

GEAR SHIFT RAIL COUNTER

90134190000

Unavailable

32

Washer 8.4x18x2

J126080006

Unavailable
