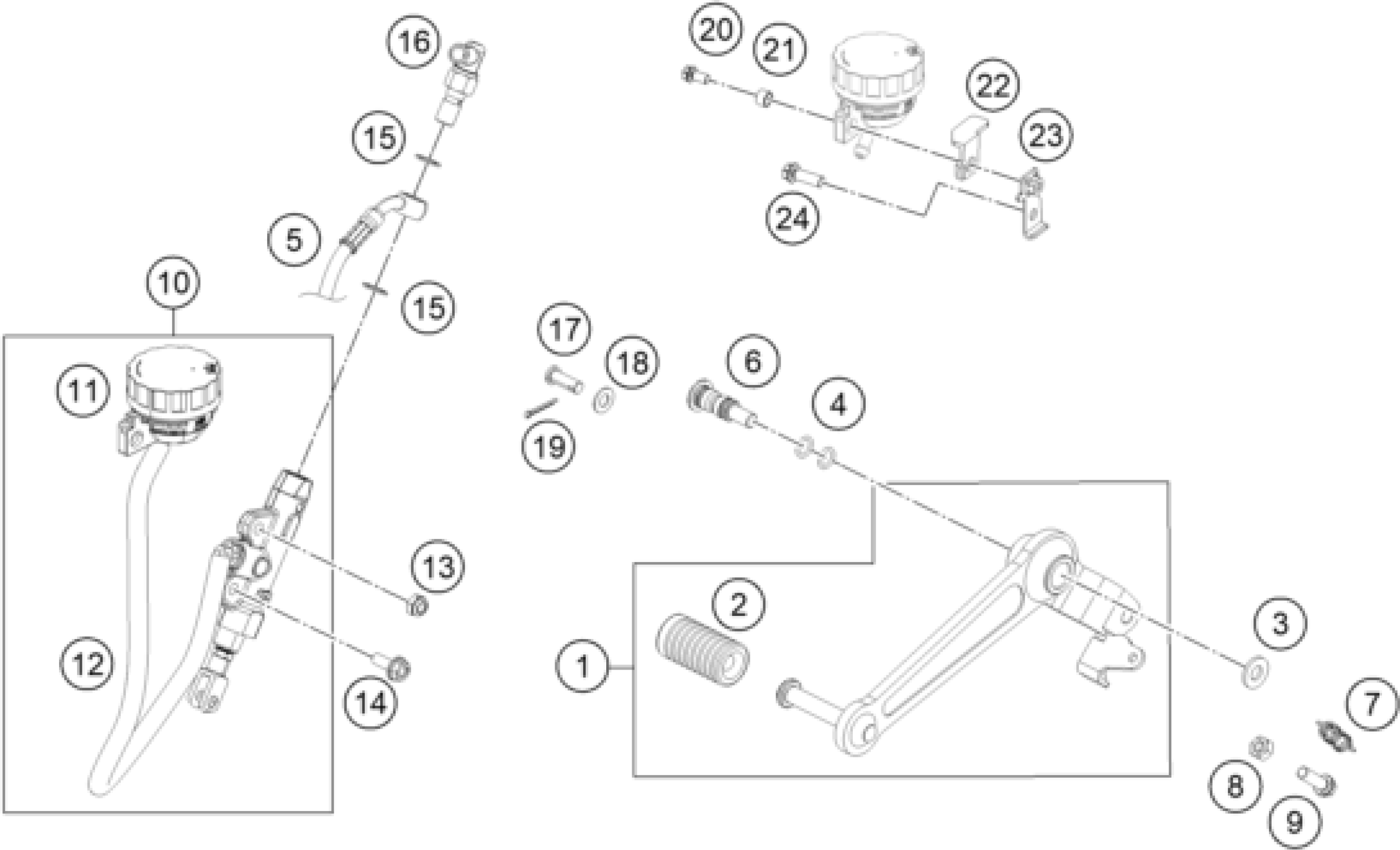

KTM 200 DUKE, grey, ABS-B.D. 2025 REAR BRAKE CONTROL Diagram

#

Description

Price

1

LEVER ASSEMBLY BRAKE

93113050033

Unavailable

2

DAMPER

90634035000

Unavailable

4

RING - O

J770000918000

Unavailable

5

Brake hose

93013037000

Unavailable

6

SCREW GEAR CHANGE LEVER

93134034000

Unavailable

7

brake pedal spring

90113052000

Unavailable

8

nut hex thick

J934060001

Unavailable

9

HH COLLAR SCREW M6X20 SW10

J025060203

Unavailable

10

Rear master cylinder

93013060000

Unavailable

11

BRAKE FLUID RESERVOIR CPL.

90113009000

Unavailable

12

reservoir tube kit

93313073000

Unavailable

13

nut hex flanged

J926060006

Unavailable

14

HH COLLAR SCREW M6X16

90130059000

Unavailable

15

COPPER GASKET

90113026000

Unavailable

16

brake light switch, rear

90111051000

Unavailable

17

pin for fork end

90113057000

Unavailable

18

PLAIN WASHER 6,4X12X1

90103040001

Unavailable

19

splint pin 2x15mm

J094020153

Unavailable

20

Hex collar screw M6X18

J025060181

Unavailable

21

Spacer bushing

93035065020

Unavailable

22

Bracket, reservoir

93013068010

Unavailable

23

Sheet

93013068000

Unavailable

24

HH-COLLAR SCREW M5X10

J025050103

Unavailable

3

Washer 8.4x18x2

J126080006

Unavailable
