WIRING HARNESS

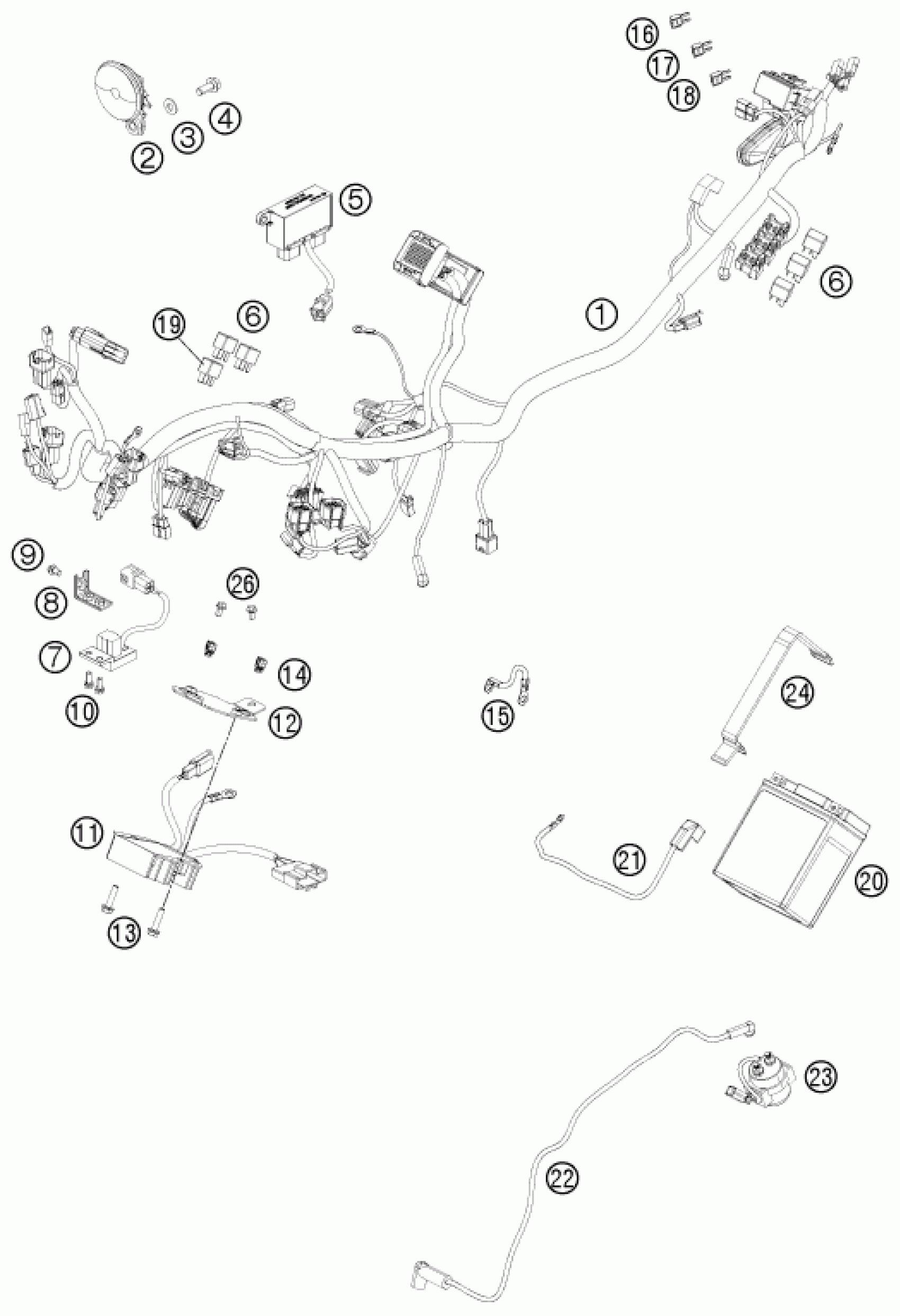

KTM 200 DUKE GREY 2012 WIRING HARNESS Diagram
#
Description
Price
1
WIRING HARNESS
90611075000
Unavailable
2
DC HORN
90111060000
Unavailable
3
WASHER 8,2X16X1,5
J125080003
$1.49
4
HH COLLAR SCREW M8X20 SW12
J025080203
$1.49
5
INTEGRAL UNIT
90111035000
Unavailable
6
relay (interlock)
90611057000
$24.49
7
ROLL OVER SENSOR
90141088000
$31.88
8
BRACKET ROLL OVER SENSOR
90141088050
Unavailable
9
HH COLLAR SCREW M6X10 SW10
J025060103
$1.49
10
HH COLLAR SCREW M5X13 SW8
J011050133
$1.49
11
VOLTAGE REGULATOR
90111034000
$134.26
12
BRACKET VOLTAGE REGULATOR
90111034010
Unavailable
13
bolt flanged M6X25
J025060253
$1.49
14
THROTTLE CABEL GUIDANCE
90102091050
Unavailable
15
GROUND CABLE
90111197000
Unavailable
16
FUSE 10A 07
75011088010
$4.11
17
FUSE 15A 07
75011088015
$4.11
18
FUSE 30A
75011088030
$3.08
20
BATTERY 12V/8AH
90611053000
$137.81
21
GROUND CABLE
90611097000
Unavailable
22
STARTER CABLE
90111059000
$12.05
23
STARTER RELAY
90111058000
$25.80
24
BRACKET RUBBER FOR BATTERY
90111054000
$5.23
19
RELAY (AUX1DIODE)
90611157000
$24.58
26
HH-COLLAR SCREW M6X10 SW8
J025060109
$1.49
