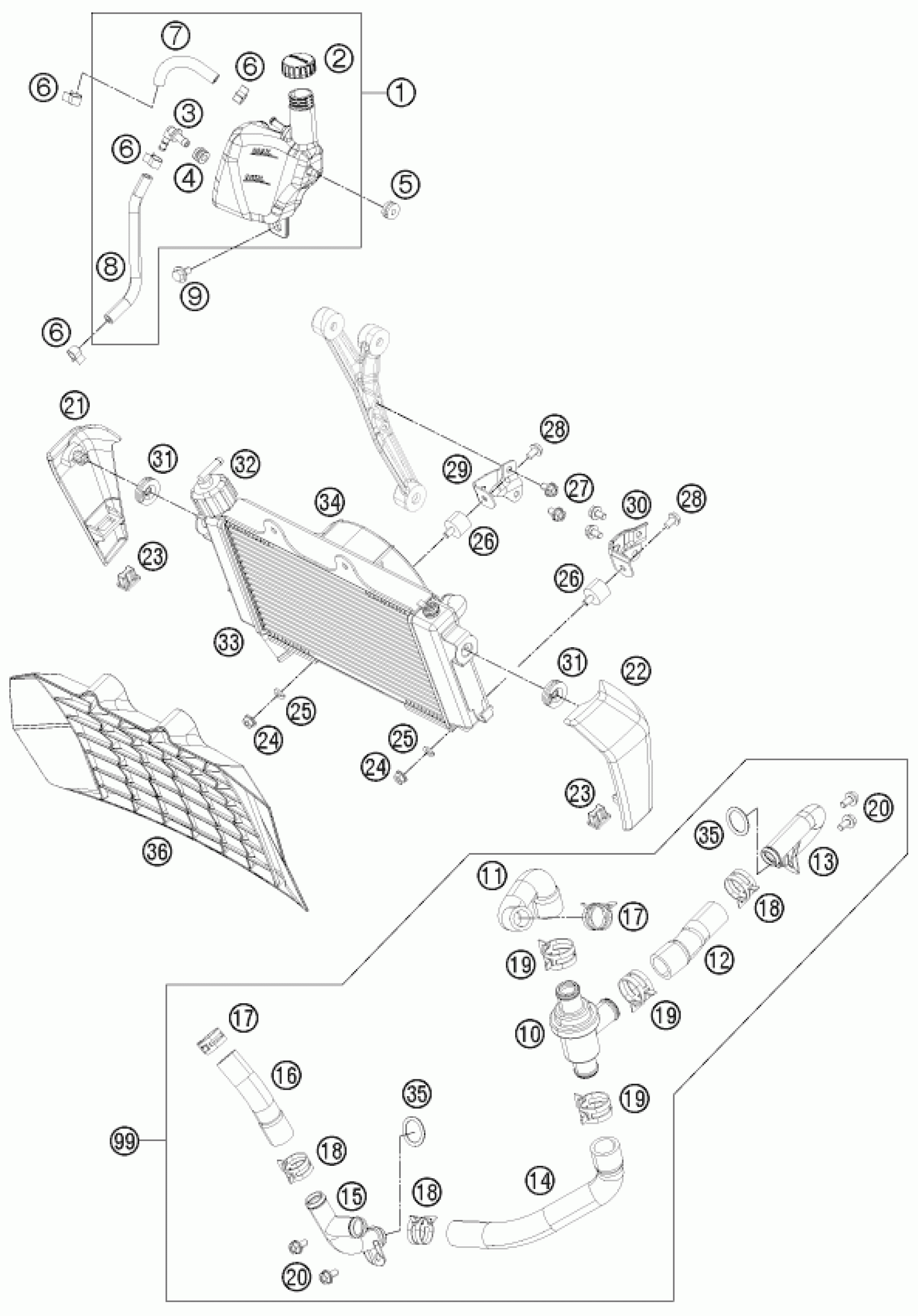

KTM 200 DUKE GREY 2012 COOLING SYSTEM Diagram

#

Description

Price

1

EXPANSION RESERVOIR CPL.

90135065033

Unavailable

2

PLUG F. EXPANSION TANK

90135066000

Unavailable

3

CONNECTOR EXPANSION TANK

90135068000

Unavailable

4

GROMMET F. CONN. EXP.TANK

90135069000

Unavailable

5

GROMMET EXPANSION TANK

90135065050

Unavailable

6

CLAMP 10MM

90107018011

Unavailable

7

HOSE 6X10,5X80 MM

90135067000

Unavailable

8

HOSE 6X10X154 MM

90135067050

Unavailable

9

SPECIAL SCREW M6X12 FLANGED

90135074000

Unavailable

10

THERMOSTAT

90135017000

Unavailable

11

RADIATORHOSE THERM.-RADIATOR

90135024020

Unavailable

12

RADIATORHOSE ENGINE-THERM.

90135025000

Unavailable

13

WATER SUPPLY CYLINDER HEAD

90135190044

Unavailable

14

RADIATORHOSE THERM.-COOL.PIPE

90135024010

Unavailable

15

COOLING PIPE ''T'' CPL.

90135026000

Unavailable

16

RADIATORHOSE RADI.-COOLL.'' T

90135024030

Unavailable

33

RADIATOR CPL. WITH FAN

90135010000

Unavailable

34

FAN RADIATOR CPL.

90135041033

Unavailable

35

O-RING 18,5X3

J770018530

Unavailable

99

RADIATOR HOSE KIT 125 DUKE

90135017010

Unavailable

36

RADIATOR PROTECTION

90635040000

Unavailable

17

hose clamp D24

90135020002

Unavailable

18

hose clamp D26

90135020001

Unavailable

19

HOSE CLAMP D28

90135020003

Unavailable

20

HH COLLAR SCREW M6X12 SW10

J025060126

Unavailable

21

RADIATOR PROTECTOR R/S

90108061000

Unavailable

22

RADIATOR PROTECTOR L/S

90108060000

Unavailable

23

DAMP. RUBBER II RADIATOR PROT

90108060002

Unavailable

24

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

Unavailable

25

WASHER SPRING B6

J127060003

Unavailable

26

silentbloc M6

90135001001

Unavailable

27

HH COLLAR SCREW M6X10 SW10

J025060103

Unavailable

28

HH COLLAR SCREW M6X8 SW10

J026060083

Unavailable

29

RADIATOR SUPPORT R/S BELOW

90103006001

Unavailable

30

RADIATORSUPPORT L/S BELOW

90103005001

Unavailable

31

DAMPING RUBBER I RADIATOR PROT

90108060001

Unavailable

32

RADIATOTR CAP

90135016000

Unavailable
